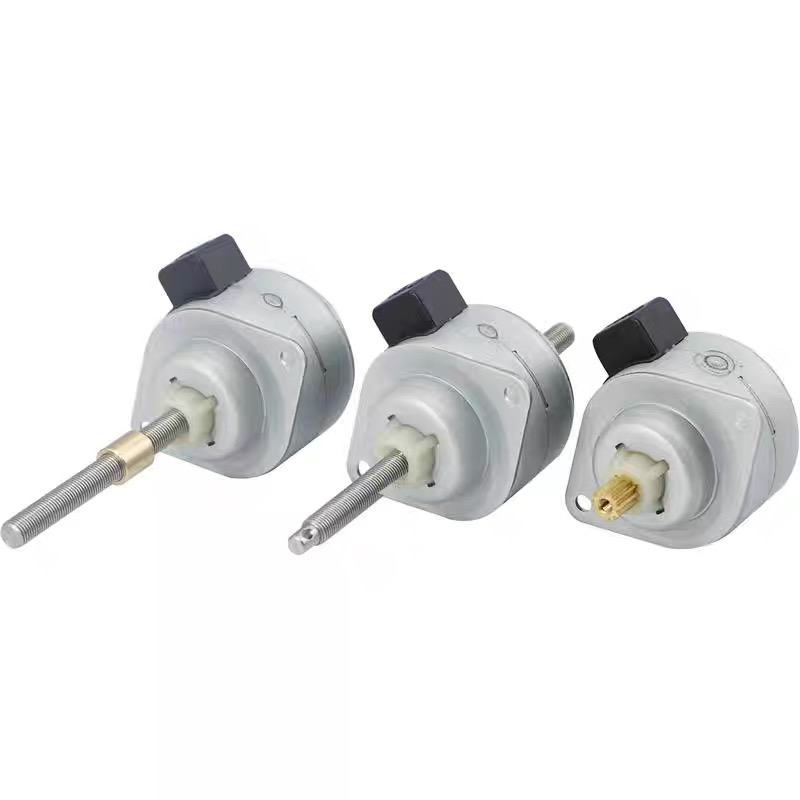

SHZG/SHZW/SHZX20BY24B HL Linear Stepper Motor - Precision for Auto/Medical/Stage Lighting

Motor Features & Technical Parameters

The SHZG/SHZW/SHZX20BY24B HL Linear Stepper Motor is engineered for high-precision control across automobile, medical equipment, valve control and stage lighting fields. It ensures stable performance with -20℃～+55℃ ambient temperature adaptability, Class E insulation, and 100MΩ MIN insulation resistance under 500V DC.

Notably, SHZW20BY24B01-L2.4 is tested with constant current chopper driver BL-210. Detailed specifications of all models are shown in the table below:

2. Application Scope Introduction

In automobile field, SHZG/SHZW/SHZX20BY24B HL Linear Stepper Motor adapts to -20℃～+55℃ environment, fitting small control components for stable operation. For medical equipment, its precise step control ensures reliable performance of diagnostic and therapeutic devices.

In valve control, it enables accurate adjustment of valve openings to meet fluid control demands. In stage lighting equipment, its 25.4-101.6μm step length and 6-15N thrust support precise positioning of lights, creating ideal stage lighting effects.
