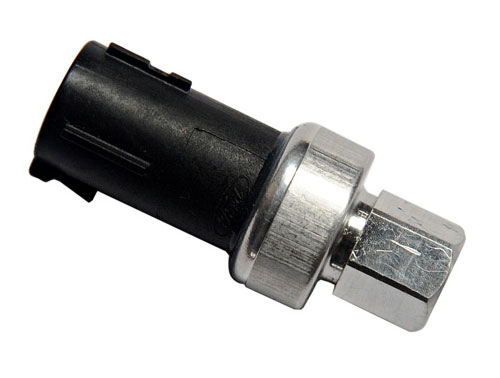

CYYZ-05 High-Precision Pressure
SHINE
20221166
Product Description
The SHINE CYYZ-05 series is a robust, cost-effective pressure sensor specially developed for demanding commercial vehicle and industrial applications. With a measuring range of 0.8–4.5MPa and wide voltage input of 5–25VDC, it delivers stable 0.5–4.5VDC ratiometric output and ≤2ms fast response. Advanced temperature compensation ensures ±1.0%FS accuracy across –40°C to +125°C, while stainless steel 304 construction and fully welded design provide IP67 protection and over 1 million pressure cycles. Compact size, lightweight design, and multiple pressure port/thread options make integration seamless. Widely trusted in snowplow hydraulic systems, heavy-duty trucks, refrigeration units, air compressors, and construction machinery, CYYZ-05 offers OEM/ODM partners exceptional stability, long service life, and outstanding value. Contact SHINE today for bulk pricing and customization.
Component Reliability: Its imported silicon piezoresistive chip undergoes 1,000-hour high-temperature aging tests, maintaining ±1.0% accuracy at 25℃. The full-temperature error ( -40~125℃) is ≤±3.0%VCC, meeting the extreme environment demands of automotive electronics.
Durability Validation: It passes 1,000,000 pressure cycle shock tests, 16VDC overvoltage protection assessments, and reverse voltage short-circuit trials. With IP67 protection, it resists oil mist, dust, and moisture in both automotive engine bays and industrial workshops.
Production Precision: Automated SMT assembly and laser calibration ensure minimal drift: zero drift ≤±0.1%FS/100℃, sensitivity drift ≤±0.03%FS/℃. Every unit undergoes 24-hour high-low temperature cycling tests before leaving the factory.
Traceability & Warranty: It comes with a 2-year warranty, paired with SPC (Statistical Process Control) reports. Each product’s production batch, calibration data, and test records are fully traceable—meeting Citroën’s strict supply chain quality audit requirements.
| Category | Item | Specification |
|---|---|---|
| Electrical | Supply Voltage | 5±0.25VDC |
| Operating Current | ≤10mA | |
| Output Voltage | 0.5-4.5VDC (customizable) | |
| Performance | Pressure Range | 0.8-4.5MPa (relative) |
| Accuracy (25℃) | ±1.0%VCC | |
| Cycle Life | 1,000,000 cycles | |
| Environment | Operating Temp | -30~125℃ |
Application
The CYYZ-05 serves automotive hydraulic systems (transmission oil pressure, brake pressure), industrial equipment (injection molding machine pressure, compressor air control), construction machinery (hydraulic pump monitoring), and medical devices (autoclave pressure detection). It’s compatible with silicone-friendly media (hydraulic oil, air) and operates in -30~125℃ environments.
