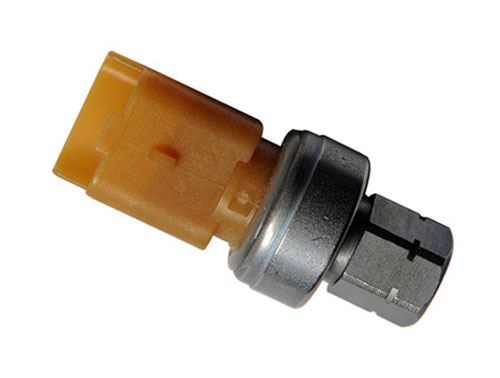

CYYZ-02 Citroën Pressure Sensor | 0.8-4.5MPa High-Precision Transmitter

The CYYZ-02 is optimized for Citroën: 5±0.25VDC supply, ≤10mA current, 0.5-4.5VDC customizable output (≤2.0ms response). It covers 0.8-4.5MPa pressure, offers ±1.0% accuracy (25℃), 1M cycle life, and operates at -30~125℃ with silicone-compatible media.

Model:
CYYZ-02 High-Precision Pressure
Brand:
SHINE
Code:
20221169


Availability:



Inquiry

Product Description

CYYZ-02: Versatile Pressure Sensor for Automotive & Industry

The CYYZ-02 is a specialized sensor engineered for Citroën’s systems, with core specs:

Category	Item	Specification
Electrical	Supply Voltage	5±0.25VDC (VCC=5.000VDC)
	Output Voltage	0.5-4.5VDC (customizable 0.10-4.90VDC)
Performance	Pressure Range	0.8-4.5MPa (relative)
	Accuracy (25℃)	±1.0%VCC
Environment	Operating Temp	-30~125℃

In automotive applications, it monitors transmission oil, brake, and power steering pressure—its 0.8-4.5MPa range aligns with passenger vehicle hydraulic needs, while ≤2.0ms response enables real-time control. 16VDC overvoltage protection guards against on-board electrical fluctuations.

For industrial use, it suits injection molding machines (cavity pressure feedback) and air compressors (pressure regulation). 2.0×Fs burst pressure ensures safety under extreme loads, and -30~125℃ operating temp adapts to workshops or low-temperature storage. Silicone-compatible media covers hydraulic oil and compressed air.

CYYZ-02: Automotive-Grade Quality & Reliability

The CYYZ-02 adheres to IATF 16949 standards, with strict quality controls:

Component Durability: Its silicon piezoresistive core passes 1,000-hour high-temperature aging, maintaining ±1.0% accuracy (25℃); full-temp error (-40~125℃) ≤±3.0%VCC meets automotive extreme-environment demands.
Rigorous Testing: It withstands 1M pressure cycles, 16VDC overvoltage, and reverse voltage shorts. Storage stability (-40~140℃) resists harsh operating conditions.
Precision Production: Automated assembly + laser calibration minimize drift (≤±0.1%FS/100℃). All units undergo 24-hour high-low temp cycling before delivery.
Traceability: 2-year warranty with SPC reports; production batch/calibration data is fully traceable, meeting Citroën’s supply chain audit requirements.

Application

The CYYZ-02 serves automotive hydraulic systems (transmission oil, brake pressure), industrial equipment (injection molding machine pressure, compressor control), construction machinery (hydraulic pump monitoring), and medical devices (autoclave pressure detection). It works with silicone-friendly media (hydraulic oil, air) across -30~125℃ environments, fitting diverse high-demand scenarios.
