CYYZ13 Fiat-Compatible Pressure Sensor | 0.8-4.5MPa High-Accuracy Transmitter

The CYYZ13 is tailored for Fiat models: 5±0.25VDC power, ≤10mA operating current, 0.5-4.5VDC adjustable output (≤2.0ms response). It covers 0.8-4.5MPa pressure, delivers ±1.0% precision (25℃), 1M cycle durability, and works at -30~125℃ with silicone-compatible media (matched to Fiat’s fluid specs).

Model:
CYYZ-13 High-Precision Pressure
Brand:
SHINE
Code:
20221173


Availability:



Inquiry

Product Description

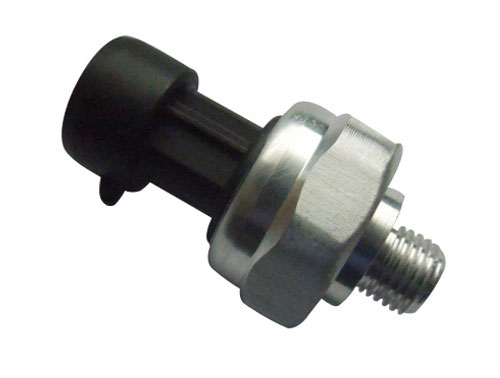

CYYZ13: Specialized Pressure Sensor for Fiat Vehicles

The CYYZ13 is engineered to align with Fiat’s automotive systems, with specs optimized for Fiat’s hydraulic and electrical configurations:

Category	Item	Specification
Electrical	Power Supply	5±0.25VDC (VCC=5.000VDC)
	Output Voltage	0.5-4.5VDC (adjustable 0.10-4.90VDC)
Performance	Pressure Range	0.8-4.5MPa (relative)
	Precision (25℃)	±1.0%VCC
Environment	Operating Temp	-30~125℃

In Fiat vehicle applications, it monitors transmission oil pressure, brake system pressure, and power steering pressure—its 0.8-4.5MPa range fits Fiat’s compact and mid-size vehicle hydraulic setups, while ≤2.0ms response supports the brand’s real-time control systems. 16VDC overvoltage protection shields against Fiat’s on-board electrical fluctuations.

It also pairs with Fiat’s light commercial vehicle auxiliary tools (e.g., small hydraulic components). The 2.0×Fs burst pressure meets Fiat’s safety standards, and the -30~125℃ operating temp adapts to Fiat’s global market climate needs. Silicone-compatible media aligns with Fiat’s standard hydraulic fluids.

CYYZ13: Fiat-Grade Quality & Reliability

The CYYZ13 adheres to Fiat’s strict automotive quality benchmarks:

Component Durability: Its silicon piezoresistive core passes 1,000-hour high-temperature aging, retaining ±1.0% precision (25℃)—matching Fiat’s extreme-environment performance requirements.
Endurance Testing: It withstands 1M pressure cycles (aligned to Fiat’s vehicle lifecycle standards), 16VDC overvoltage exposure, and reverse voltage shorts, with storage stability (-40~140℃) for long-term inventory.
Precision Manufacturing: Automated assembly + laser calibration limit drift (≤±0.1%FS/100℃), ensuring seamless integration with Fiat’s on-board electronics. All units undergo 24-hour high-low temp cycling (Fiat’s validation protocol) pre-delivery.
Traceability: 2-year warranty paired with SPC reports; production batches and calibration data are fully traceable, meeting Fiat’s supply chain audit requirements.

Application

The CYYZ13 serves Fiat passenger & light commercial vehicle hydraulic systems (transmission oil, brake, steering pressure), plus Fiat auxiliary equipment (small hydraulic pump monitoring). It works with Fiat’s silicone-compatible hydraulic fluids, operating across -30~125℃ environments to fit the brand’s diverse driving scenarios.
