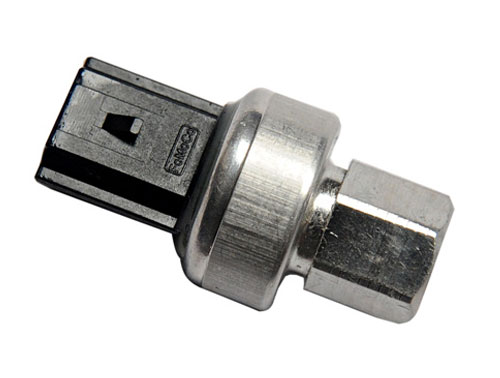

CYYZ-03 Citroën Pressure Sensor | 0.8-4.5MPa High-Precision Transmitter

The CYYZ-03 is optimized for Citroën: 5±0.25VDC supply, ≤10mA current, 0.5-4.5VDC customizable output, ≤2.0ms response. It covers 0.8-4.5MPa pressure, offers ±1.0% accuracy (25℃), 1M cycle life, and operates at -30~125℃ with silicone-compatible media.

Model:
CYYZ-03 High-Precision Pressure
Brand:
SHINE
Code:
20221167


Availability:



Inquiry

Product Description

CYYZ-03: Dual-Scenario Pressure Sensor for Automotive & Industry

The CYYZ-03 is a specialized pressure sensor engineered for Citroën’s automotive ecosystem, while also serving industrial pressure measurement needs—backed by core specs:

Category	Item	Specification
Electrical	Supply Voltage	5±0.25VDC (VCC=5.000VDC)
	Operating Current	≤10mA
	Output Voltage	0.5-4.5VDC (customizable 0.10-4.90VDC)
	Response Time	≤2.0ms (110%~90%)
Performance	Pressure Range	0.8-4.5MPa (relative)
	Accuracy (25℃)	±1.0%VCC
	Cycle Life	1,000,000 times
Environment	Operating Temp	-30~125℃

In automotive applications, it excels at monitoring transmission oil pressure, brake system pressure, and power steering pressure. Its 0.8-4.5MPa range aligns with mainstream passenger vehicle hydraulic requirements, while the ≤2.0ms response time enables real-time feedback for dynamic control systems. The 5V power supply integrates seamlessly with on-board circuits, and 16VDC overvoltage protection guards against electrical fluctuations.

For industrial scenarios, it suits injection molding machines (cavity pressure feedback), air compressors (pressure regulation), and hydraulic pumps (system monitoring). The 2.0×Fs burst pressure ensures safety under extreme loads, and the -30~125℃ operating temp adapts to high-heat workshops or low-temperature storage. Silicone-compatible media support covers hydraulic oil, compressed air, and more.

It also fits construction machinery (hydraulic system monitoring) and medical devices (autoclave control), making it a versatile cross-sector solution.

CYYZ-03: Automotive-Grade Quality with Rigorous Control

The CYYZ-03 adheres to IATF 16949 automotive quality standards, with end-to-end control to ensure reliability:

Component Reliability: Its silicon piezoresistive core undergoes 1,000-hour high-temperature aging tests, maintaining ±1.0% accuracy at 25℃. Full-temperature error (-40~125℃) is ≤±3.0%VCC—meeting automotive electronics’ extreme environment demands.
Durability Validation: It passes 1,000,000 pressure cycle shocks, 16VDC overvoltage protection tests, and reverse voltage short-circuit trials. With stability across -40~140℃ storage temperatures, it resists harsh operating conditions.
Production Precision: Automated assembly + laser calibration minimize drift: zero drift ≤±0.1%FS/100℃, sensitivity drift ≤±0.03%FS/℃. Every unit undergoes 24-hour high-low temperature cycling before delivery to ensure consistency.
Traceability & Warranty: It comes with a 2-year warranty, paired with Statistical Process Control (SPC) reports. Each product’s production batch, calibration data, and test records are fully traceable—meeting Citroën’s strict supply chain audit requirements.

Application

The CYYZ-03 serves automotive hydraulic systems (transmission oil pressure, brake pressure), industrial equipment (injection molding machine pressure, compressor control), construction machinery (hydraulic pump monitoring), and medical devices (autoclave pressure detection). It works with silicone-friendly media (hydraulic oil, air) across -30~125℃ environments, fitting diverse high-demand scenarios.
