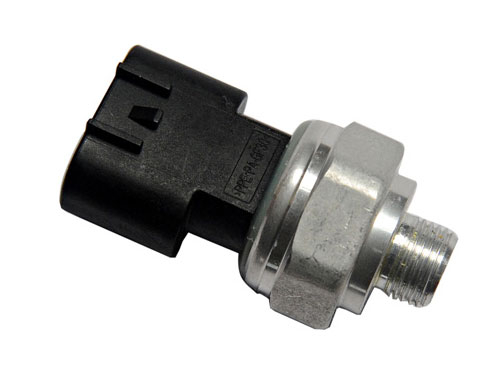

CYYZ-07 Multi-Vehicle Pressure Sensor | 0.8-4.5MPa High-Precision Transmitter

The CYYZ-07 fits various vehicle models: 5±0.25VDC supply, ≤10mA current, 0.5-4.5VDC customizable output (≤2.0ms response). It covers 0.8-4.5MPa pressure (linear output per the characteristic curve), offers ±1.0% accuracy (25℃), 1M cycle life, and operates at -30~125℃ with silicone-compatible media.

Model:
CYYZ-07 High-Precision Pressure
Brand:
SHINE
Code:
20221171


Availability:



Inquiry

Product Description

CYYZ-07: Versatile Pressure Sensor for Multi-Vehicle & Industrial Scenarios

The CYYZ-07 is a specialized sensor compatible with various vehicle models, featuring a linear pressure-output curve (as shown) and core specs:

Category	Item	Specification
Electrical	Supply Voltage	5±0.25VDC (VCC=5.000VDC)
	Output Voltage	0.5-4.5VDC (customizable 0.10-4.90VDC)
Performance	Pressure Range	0.8-4.5MPa (relative, linear output)
	Accuracy (25℃)	±1.0%VCC
Environment	Operating Temp	-30~125℃

In automotive applications (for various car models), it monitors transmission oil, brake, and power steering pressure—its 0.8-4.5MPa linear output aligns with mainstream vehicle hydraulic needs, while ≤2.0ms response enables real-time control. 16VDC overvoltage protection guards against on-board electrical fluctuations.

For industrial use, it suits injection molding machines (cavity pressure feedback) and air compressors (pressure regulation). 2.0×Fs burst pressure ensures safety under extreme loads, and -30~125℃ operating temp adapts to workshops or low-temperature storage. Silicone-compatible media covers hydraulic oil and compressed air.

CYYZ-07: Automotive-Grade Quality & Reliability

The CYYZ-07 adheres to IATF 16949 standards, with strict quality controls:

Component Durability: Its silicon piezoresistive core (supporting linear output) passes 1,000-hour high-temperature aging, maintaining ±1.0% accuracy (25℃); full-temp error (-40~125℃) ≤±3.0%VCC meets multi-vehicle extreme-environment demands.
Rigorous Testing: It withstands 1M pressure cycles (matching the linear curve), 16VDC overvoltage, and reverse voltage shorts. Storage stability (-40~140℃) resists harsh operating conditions.
Precision Production: Automated assembly + laser calibration minimize drift (≤±0.1%FS/100℃), ensuring consistent linear output. All units undergo 24-hour high-low temp cycling before delivery.
Traceability: 2-year warranty with SPC reports; production batch/calibration data (including curve verification) is fully traceable, meeting vehicle industry supply chain standards.

Application

The CYYZ-07 serves multi-vehicle hydraulic systems (transmission oil, brake pressure) for various car models, plus industrial equipment (injection molding machine pressure, compressor control), construction machinery (hydraulic pump monitoring), and medical devices (autoclave detection). Its linear output and silicone-compatible media work across -30~125℃ environments.
