YS160A/B series three-phase asynchronous motor

Model: YS160-1250-6 to YS160-1500-6/8
Operating Power Supply: 380~415V/50Hz, 460V/60Hz
Power: 100W-1500W (some dual-power models)
Rated Current: 0.6A-4.5A
Rated Speed: 360rpm-930rpm
Gear: 1 or 2
Wiring Method: Y, 2-Y, △
Insulation Grade: Class F
Protection Level: IP54

Model:
YS160A/B series three-phase asynchronous
Brand:
SHINE
Code:
20221115


Availability:



Inquiry

Product Description

Targeted Design for Outdoor HVAC Equipment

The YS160A/B series is engineered for central air conditioner outdoor units and fans. Its wide power range (100-1500W) and speed options (360-930rpm) match diverse airflow needs, ensuring efficient heat exchange and stable cooling for outdoor HVAC systems, even in heavy-load scenarios.

Enhanced Protection & Safety

With IP54 protection, the motor resists dust and water jets—ideal for outdoor use—shielding internal components from harsh weather. Class F insulation offers excellent heat resistance, enabling safe operation in high-temperature environments. Multiple wiring methods (Y/2-Y/△) ensure compatible, stable current distribution.

Flexible Performance & Customization

It has 1 or 2 gears; dual-gear models support adjustable power/speed for varying cooling demands, balancing efficiency and energy use. Representative specs are reference-only, with optimized design available per user needs. Standardized structure allows easy installation, fitting most outdoor unit fan setups.

Specification Table

Model	Operating Power Supply (V/Hz)	Power (W)	Rated Current (A)	Rated Speed (rpm)	Gear	Wiring Method	Insulation Grade	Protection Level
YS160-1250-6	380~415V/50Hz	1250	4.0	860	1	Y	F	IP54
YS160-1500-6	380~415V/50Hz	1500	4.5	930	1	Y	F	IP54
YS160-580-8	380~415V/50Hz	580	3.1	710	1	Y	F	IP54
YS160-1000-8	380~415V/50Hz	1000	2.6	710	1	Y	F	IP54
YS160-1150-8	380~415V/50Hz	1150	4.0	700	1	Y	F	IP54
YS160-350-10	380~415V/50Hz	350	1.25	545	1	Y	F	IP54
YS160-560-10	380~415V/50Hz	560	2.2	523	1	Y	F	IP54
YS160-560-12	460V/60Hz	560	2.8	523	1	Y	F	IP54
YS160-400-6/8	380~415V/50Hz	400/100	1.3/0.6	900/600	2	2-Y	F	IP54
YS160-600-8/12	380~415V/50Hz	600/65	2.3/0.7	700/360	2	2-Y	F	IP54
YS160-750-8	380~415V/50Hz	200/750	1.4/2.5	450/650	2	Y/△	F	IP54
YS160-900-6/10	380~415V/50Hz	900/200	3.0/1.1	785/490	2	2-Y	F	IP54
YS160-1500-6/8	380~415V/50Hz	1500/1100	4.2/1.8	900/700	2	2Y/△	F	IP54

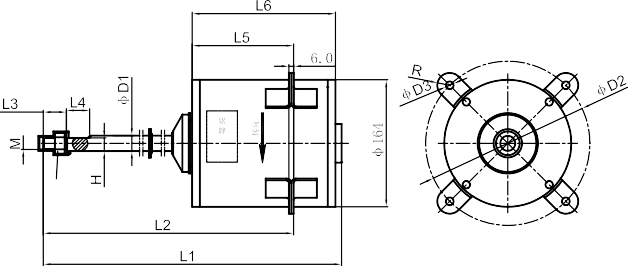

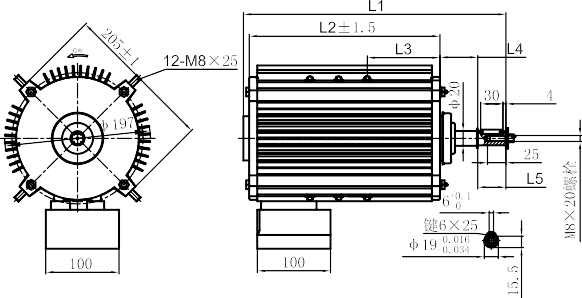

Drawing

YS160A-b series YS160ab series

Application

Core Power for Outdoor HVAC & Fan Systems

The YS160A/B series is mainly used in outdoor units of commercial/residential central air conditioners. In large commercial buildings (malls, office towers), it drives outdoor fans to dissipate heat, ensuring stable cooling for large spaces. For residential areas, IP54 protection resists rain/dust, enabling year-round reliable use.

It also suits industrial fans and outdoor cooling equipment. Dual-gear models adapt to varying loads—e.g., high power for peak cooling, low power for energy saving. Compatible with 380~415V/50Hz and 460V/60Hz, it fits global markets. With customizable design, it meets specific needs of different HVAC projects, becoming a trusted outdoor fan power solution.

Note

The above are representative specifications and are for reference only. It can be optimized according to user requirements. If there are any changes without prior notice, you can contact the technical department of our company.
