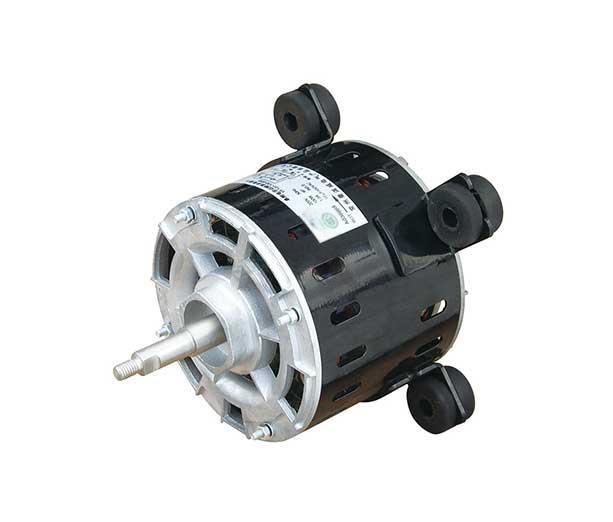

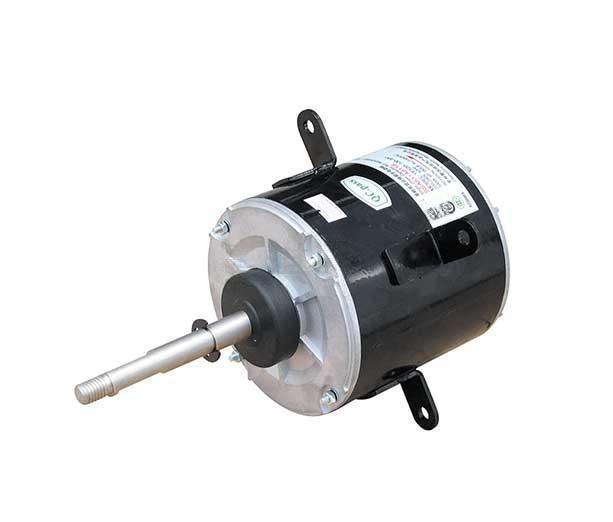

YF120A Series Single-phase Capacitor Running Asynchronous Motor

This series covers 10 models with 220~240V/50Hz power supply, power ranging from 10W to 150W, and rated current 0.18A-1.4A. Rated speeds vary between 580rpm and 1260rpm, with 3-speed gears for flexible adjustment. It adopts B-class insulation for safety and configures capacitors from 1.0μF to 8.0μF (450V), ensuring efficient and stable operation in various climate control scenarios.

Model:
YF120A series single-phase
Brand:
SHINE
Code:
20221169


Availability:



Inquiry

Product Description

Precision Engineering & Design

The YF120A series is meticulously designed for single-phase capacitor running asynchronous operation, focusing on compatibility with HVAC systems. Each model undergoes optimized structural design to balance power output and energy efficiency, ensuring seamless integration with fan coil units and other climate control equipment.

Core Performance Advantages

It excels in stable operation with consistent power delivery, supporting long-term continuous use without performance degradation. The B-class insulation enhances safety and heat resistance, while the matched capacitor configurations optimize starting performance and running efficiency. Its robust construction minimizes vibration and noise, creating quiet indoor environments.

Versatile Adaptability

With a wide power range (10W-150W) and variable rated speeds, the series meets diverse air circulation and temperature regulation demands. The 3-speed gear design allows precise control of air volume, adapting to different usage scenarios. It supports flexible installation and is compatible with various fan coil units, making it a versatile choice for HVAC projects.

Specification Table

Model	Operating Power Supply (V/Hz)	Power (W)	Current Rating (A)	Rated Speed (rpm)	Speed Gear	Insulation Grade	Configuring Capacitors (μF/V)
YF120-10-8	220~240V/50Hz	10	0.18	599	3	B	1.0/450
YF120-20-6	220~240V/50Hz	20	0.35	745	3	B	2.0/450
YF120-25-8	220~240V/50Hz	25	0.35	580	3	B	2.0/450
YF120-35-6	220~240V/50Hz	35	0.54	770	3	B	3.0/450
YF120-45-6	220~240V/50Hz	45	0.7	830	3	B	4.0/450
YF120-85-6	220~240V/50Hz	85	1.07	710	3	B	5.0/450
YF120-90-4	220~240V/50Hz	90	0.8	1260	3	B	5.0/450
YF120-100-6	220~240V/50Hz	100	1.2	720	3	B	8.0/450
YF120-125-6	220~240V/50Hz	125	1.2	845	3	B	8.0/450
YF120-150-6	220~240V/50Hz	150	1.4	860	3	B	8.0/450

Drawing

YF120A series single-phase capacitor running asynchronous motor5

Application

The YF120A series single-phase capacitor running asynchronous motor is mainly used in fan coil units of HVAC systems, widely applied in commercial buildings, office buildings, hotels, hospitals, shopping malls, and residential complexes. In office buildings and commercial spaces, its low-noise operation and stable speed regulation create comfortable working and shopping environments. For hotels and hospitals, its high reliability and energy efficiency reduce operational costs and maintenance frequency, meeting the demand for 24/7 continuous operation. It also suits customized HVAC systems in schools, research institutions, and industrial workshops, adapting to different temperature control and air circulation requirements. With its versatile performance and broad compatibility, the motor becomes a core component in modern indoor climate control systems, ensuring efficient and comfortable environmental regulation.
