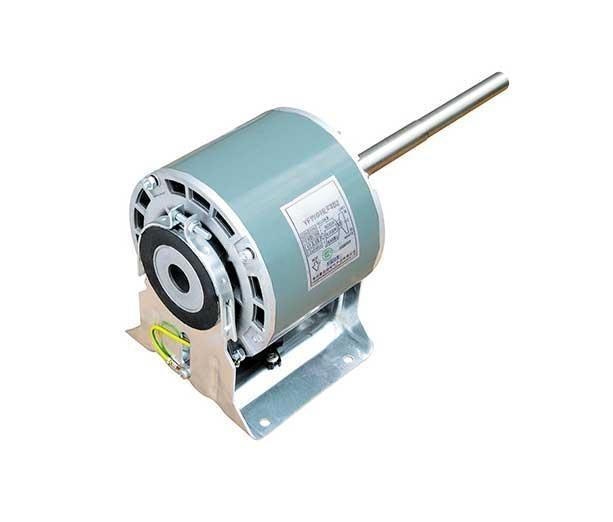

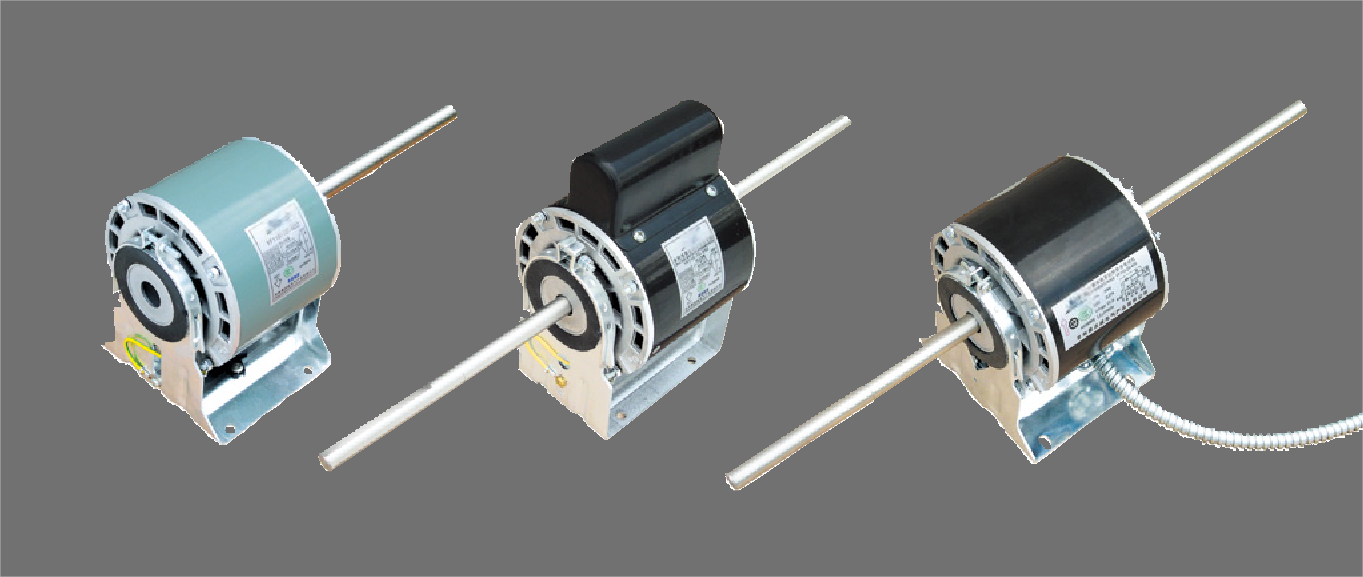

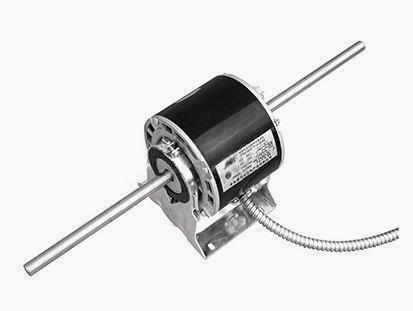

YF110 series single-phase
SHINE
20221166
Product Description
| Model | Operating Power Supply (V/Hz) | Power (W) | Rated Current (A) | Working Speed Reference (rpm) | Speed Gear | Insulation Grade | Configuring Capacitors (μF/V) |
|---|---|---|---|---|---|---|---|
| YF110-8-4D | 220V/50Hz | 8 | 0.14 | 750/650/550 | 3 | B | 0.85/450 |
| YF110-10-4S | 220V/50Hz | 10 | 0.17 | 800/650/550 | 3 | B | 1/450 |
| YF110-12-4S | 220V/50Hz | 12 | 0.19 | 830/700/550 | 3 | B | 1.2/450 |
| YF110-16-4S | 220V/50Hz | 16 | 0.23 | 850/700/600 | 3 | B | 1.5/450 |
| YF110-20-4S | 220V/50Hz | 20 | 0.28 | 900/750/600 | 3 | B | 2/450 |
| YF110-25-4S | 220V/50Hz | 25 | 0.36 | 950/800/650 | 3 | B | 2.5/450 |
| YF110-30-4S | 220V/50Hz | 30 | 0.40 | 1000/850/700 | 3 | B | 2.5/450 |
| YF110-40-4S | 220V/50Hz | 40 | 0.45 | 1100/950/800 | 3 | B | 2.5/450 |
| YF110-50-4S | 220V/50Hz | 50 | 0.46 | 1150/1000/850 | 3 | B | 3/450 |
| YF110-60-4S | 220V/50Hz | 60 | 0.55 | 1250/1100/950 | 3 | B | 4/450 |
| YF110-75-4S | 220V/50Hz | 75 | 0.57 | 1300/1150/1000 | 3 | B | 4/450 |
| YF110-100-4S | 220V/50Hz | 100 | 0.76 | 1350/1200/1050 | 3 | B | 4/450 |
| YF110-18-4S | 220V/50Hz | 18 | 0.27 | 1050 | 6 | B | 2.5/450 |
| YF110-45-4S | 220V/50Hz | 45 | 0.42 | 1100 | 6 | B | 2.5/450 |
| YF110-48-4S | 220V/50Hz | 48 | 0.47 | 1000 | 6 | B | 2.5/450 |
| YF110-59-4S | 220V/50Hz | 59 | 0.67 | 1100 | 6 | B | 3/450 |
| YF110-80-4S | 220V/50Hz | 80 | 0.93 | 1320 | 6 | B | 4/450 |
| YF110-95-4S | 220V/50Hz | 95 | 1.1 | 1300 | 6 | B | 4/450 |
| YF110-105-4S | 220V/50Hz | 105 | 1.2 | 1320 | 6 | B | 4/450 |
| YF110-15S | 115V/60Hz | 15(1/50HP) | 0.43 | 1100/950/800 | 3 | B | 3/370 |
| YF110-25S | 115V/60Hz | 25(1/30HP) | 0.66 | 1200/1050/900 | 3 | B | 3/370 |
| YF110-30S | 115V/60Hz | 30(1/25HP) | 0.75 | 1200/1050/900 | 3 | B | 5/370 |
| YF110-38S | 115V/60Hz | 38(1/20HP) | 0.83 | 1200/1050/900 | 3 | B | 5/370 |
| YF110-50S | 115V/60Hz | 50(1/15HP) | 1.0 | 1300/1150/1000 | 3 | B | 5/370 |
| YF110-75S | 115V/60Hz | 75(1/10HP) | 1.3 | 1400/1250/1100 | 3 | B | 7.5/370 |
H | A×D | B×C | F | L | L1 |
115×106 | 72×100 | 5.5&5.5×8.5 | Typical 470, can be made according to customer requirements | Typical 70, which can be made according to customer requirements | |
115×106 | 72×100 | 6.5 | |||
115×106 | 72×100 | 7 | |||
105 | 115×121 | 72×100 | 5.5&5.5×8.5 | ||
113×108 | 72×100 | 5.5&5.5×7.5 | |||
115×121 | 72×100 | 5.5 | |||
115×106 | 72×100 | 5.5&5.5×7.5 | |||
110 | 115×121 | 72×100 | 5.5&5.5×7.5 |
Note: The above are representative specifications, which can be designed according to user requirements.
100-120V, 200-240V, 50/60Hz products can be provided according to user requirements. If there are any changes without prior notice, you can contact the technical department of our company.
Drawing
Application
The YF110 series single-phase capacitive running asynchronous motor is primarily applied to fan coil units in central air conditioning systems, widely used in commercial buildings, office spaces, hotels, hospitals, and residential complexes. It provides reliable power for air circulation and temperature regulation in these environments, ensuring comfortable indoor climates. In office buildings and commercial centers, its low noise and stable operation create quiet working and shopping environments. In hotels and hospitals, its high efficiency and long service life reduce energy costs and maintenance frequency, meeting the demand for continuous operation. It also suits customized central air conditioning systems in special venues, adapting to different installation spaces and performance requirements with flexible configurations, becoming an indispensable core component in modern central air conditioning systems.
