SH42BY24B/SH42BY48B High-Performance Linear Stepper Motors

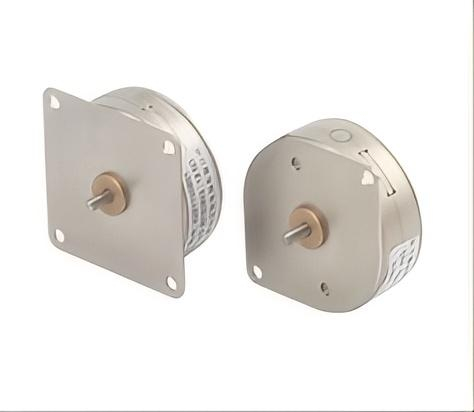

The SH42BY24B and SH42BY48B series linear stepper motors are engineered for power and precision, tailored to industrial automation and smart device applications. With a 42mm form factor and 100g weight, they balance robust performance with easy integration into diverse equipment.
Core Features & Advantages
Operating within -10℃ to 55℃, these motors adapt to temperature fluctuations in industrial workshops and indoor settings. They feature E-class insulation and 100MΩ minimum insulation resistance, ensuring safety and durability for long-term use. Available in 7.5°/15° step angles and 2/4-phase configurations, with holding torque ranging from 230-600g.cm, they deliver precise positioning for robots, flow control valves and slot machines, while meeting the reliability needs of printers and electronic locks.
Model Parameter Table

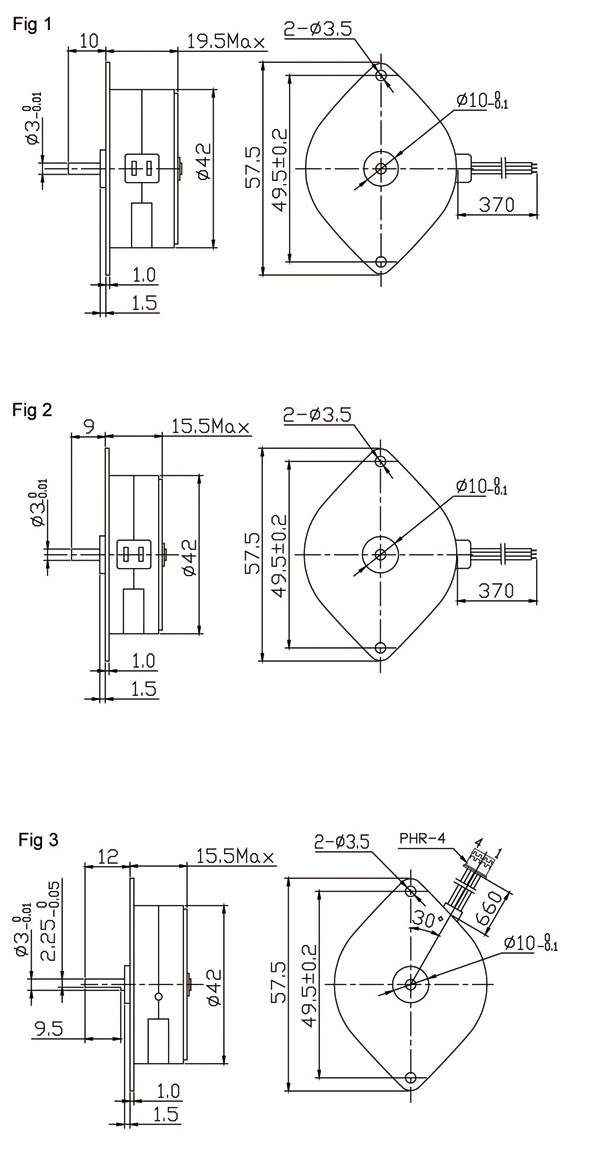

| Model | Step Angle (Deg) | Phases | Voltage (V) | Current (A) | Resistance (Ω) | Holding Torque (g.cm) | Detent Torque (g.cm) | Rotor Inertia (g.cm²) | Wiring Diagram | Figure | Weight (g) |
| SH42BY24B01 | 15 | 4 | 24 | 0.09 | 280 | 230 | 80 | 4.5 | a | 1 | 100 |
| SH42BY48B01 | 7.5 | 4 | 24 | 0.22 | 110 | 500 | 100 | 11.5 | a | 2 | 100 |
| SH42BY48B06 | 7.5 | 4 | 12 | 0.24 | 50 | 450 | 100 | 11.5 | a | 2 | 100 |
| SH42BY48B12 | 7.5 | 4 | 12 | 0.8 | 15 | 600 | 100 | 11.5 | a | 2 | 100 |
| SH42BY48B13 | 7.5 | 2 | 12 | 0.33 | 36 | 600 | 100 | 11.5 | b | 3 | 100 |
