SH25BY24B/SH25BY48H High-Reliability Linear Stepper Motors

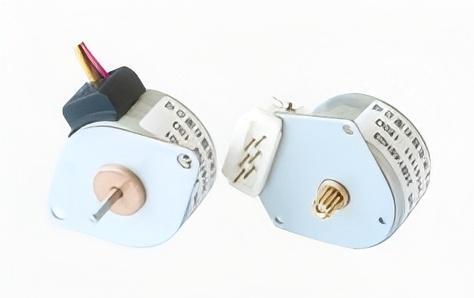

Designed for demanding scenarios, the SH25BY24B and SH25BY48H series linear stepper motors combine precision and durability. With a compact 25mm form factor and 40g weight, they integrate seamlessly into space-constrained equipment while meeting strict performance requirements.
Core Performance & Advantages
Operating across -20℃ to 55℃, these motors withstand temperature fluctuations in automotive and outdoor stage lighting setups. Featuring E-class insulation and 100MΩ minimum insulation resistance, they ensure safety in medical and industrial environments. All models offer 7.5° step angle for precise positioning, with thrust ranging from 14N to 30N and varied leads (0.6096mm~1.2192mm) to match valve control, medical device and automotive application needs.

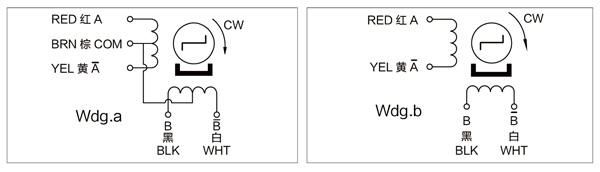

5. Model Parameter Table

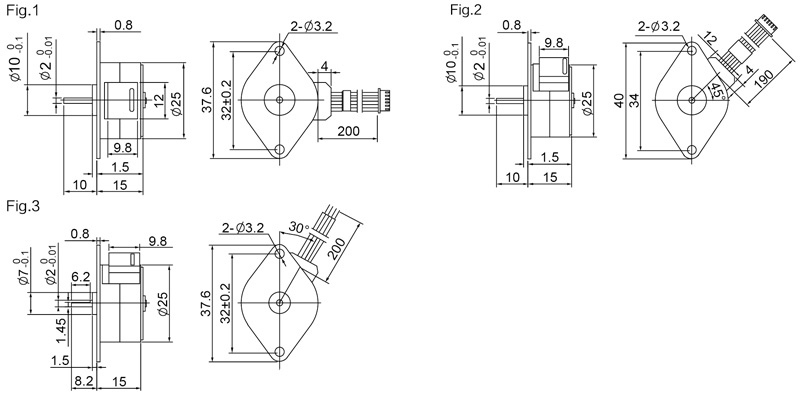

| Model | Step Angle (Deg) | Phases | Voltage (V) | Current (A) | Resistance (Ω) | Lead (mm) | Travel/step (μm) | Thrust (N) | Stroke (mm) | Figure | Weight (g) |
| SHZG25BY48H01 | 7.5 | 2 | 4.15 | 0.5 | 8.3 | 1.2192 | 25.4 | ≥25 (700pps) | 41 | 1 | 40 |
| SHZW25BY48H01D | 7.5 | 2 | 4.9 | 0.5 | 9.8 | 1.2192 | 25.4 | ≥25 (700pps) | 30 | 2 | 40 |
| SHZX25BY48H03-L0.6 | 7.5 | 2 | 4.4 | 0.29 | 15 | 0.6096 | 12.7 | ≥14 (200pps) | 14 | 3 | 40 |
| SHZX25BY48H11 | 7.5 | 2 | 24 | 0.45 | 53 | 1.2192 | 25.4 | ≥30 (130pps) | 14 | 4 | 40 |
