SH35BY24H/SH35BY48H High Torque Stepper Motor - -10℃~55℃ for Electronic Lock/Flow Valve

SH35BY24H/SH35BY48H High Torque Stepper Motor - -10℃~55℃ for Electronic Lock/Flow Valve

Models: SH35BY24H/SH35BY48H series (SH35BY24H01/H02, SH35BY48H02/H04/H05/H06/H11A). Step angle: 7.5°/15°. Phases: 2 or 4. Voltage: 5V/12V/16.2V/24V. Current: 0.06A~1.0A. Resistance: 5Ω~395Ω. Holding torque: 180-450g.cm. Ambient temp: -10℃~55℃ (indoor/industrial use). Insulation class: E. Insulation resistance: 100MΩ MIN (500VDC). Weight: 90g. Wiring diagram options: a/b.

Model:
SH35BY24H/SH35BY48H High Torque Stepper Motor
Brand:
SHINE
Code:
20221204


Availability:



Inquiry

Product Description

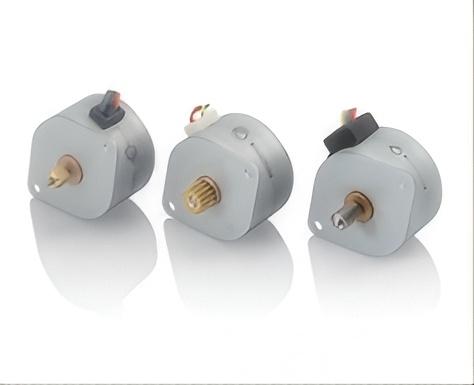

SH35BY24H/SH35BY48H Versatile Linear Stepper Motors

The SH35BY24H and SH35BY48H series linear stepper motors blend precision and adaptability, designed for both industrial control and daily-use equipment. With a 35mm form factor and 90g weight, they fit seamlessly into space-constrained devices while delivering robust performance.

Core Performance & Advantages

Operating within -10℃ to 55℃, these motors withstand temperature fluctuations in indoor and industrial environments. They feature E-class insulation and 100MΩ minimum insulation resistance, ensuring safety for electronic locks and precision instruments. Available in 7.5°/15° step angles and 2/4-phase configurations, with holding torque ranging from 180-450g.cm, they meet diverse needs—from textile instrument calibration to flow valve regulation and printer/scanner positioning.

Model Parameter Table

Model	Step Angle (Deg)	Phases	Voltage (V)	Current (A)	Resistance (Ω)	Holding Torque (g.cm)	Detent Torque (g.cm)	Rotor Inertia (g.cm²)	Wiring Diagram	Figure	Weight (g)
SH35BY24H01	15	4	24	0.06	395	200	90	4.1	a	1	90
SH35BY24H02	15	4	5	0.31	16	180	90	4.1	a	1	90
SH35BY48H02	7.5	4	16.2	0.27	60	450	90	7.9	a	2	90
SH35BY48H04	7.5	4	5	0.5	10	320	90	7.9	a	2	90
SH35BY48H05	7.5	4	24	0.24	110	400	90	7.9	a	3	90
SH35BY48H06	7.5	4	12	0.286	42	400	90	7.9	a	2	90
SH35BY48H11A	7.5	2	5	1.0	5	450	90	7.9	b	4	90

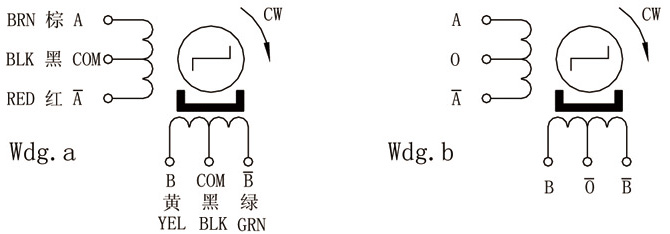

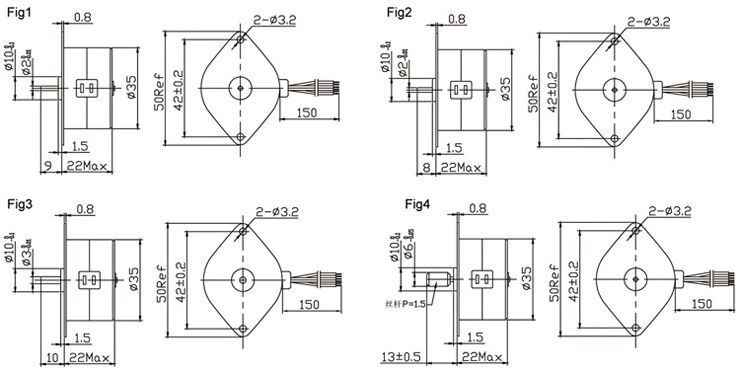

2013731144726109 2013731144734392

Application

Household & Office Scenarios

Ideal for household appliances like water-heaters and sewing machines, the motor operates reliably in indoor temperatures (-10℃~55℃) with stable torque output. In offices, it powers printers, scanners and attendance machines, ensuring precise and quiet motion for daily use.

Industrial & Control Systems

Suited for flow control valves in industrial pipelines, its high insulation resistance and torque capacity support continuous operation. It thrives in non-corrosive, low-humidity industrial environments, delivering consistent positioning accuracy that meets the demands of automated control systems.
