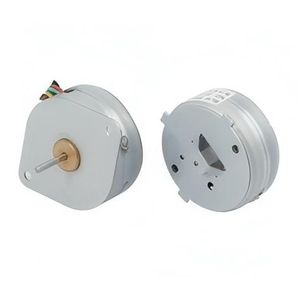

SH42BY100B High-Precision Linear Stepper Motor

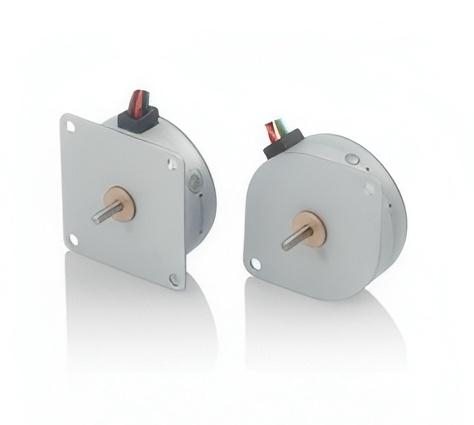

The SH42BY100B series linear stepper motor is engineered for ultra-precise positioning, tailored to demanding industrial and daily-use equipment. With a 42mm form factor and 100g weight, it combines compact design with robust performance for easy integration.
Core Performance & Advantages
Operating within -10℃ to 55℃, the motor adapts to temperature fluctuations in workshops, offices and households. It features E-class insulation and 100MΩ minimum insulation resistance, ensuring safety and long-term reliability. Equipped with 4-phase configuration and 3.6° step angle—delivering finer control than standard models—its 370-400g.cm holding torque meets the precision needs of robots, flow control valves and slot machines, while powering printers/scanners and sewing machines with stable motion.
5. Model Parameter Table

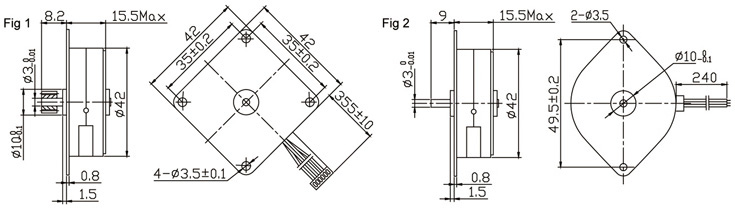

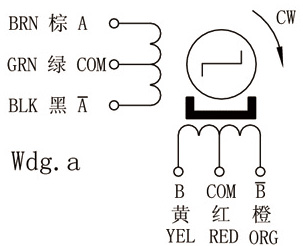

| Model | Step Angle (Deg) | Phases | Voltage (V) | Current (A) | Resistance (Ω) | Holding Torque (g.cm) | Detent Torque (g.cm) | Rotor Inertia (g.cm²) | Wiring Diagram | Figure | Weight (g) |
| SH42BY100B01 | 3.6 | 4 | 12 | 0.16 | 12.5 | 370 | 100 | 14.8 | a | 1 | 100 |
| SH42BY100B02 | 3.6 | 4 | 12 | 0.16 | 75 | 400 | 100 | 14.8 | a | 1 | 100 |
| SH42BY100B03 | 3.6 | 4 | 12 | 0.3 | 40 | 400 | 100 | 14.8 | a | 2 | 100 |
