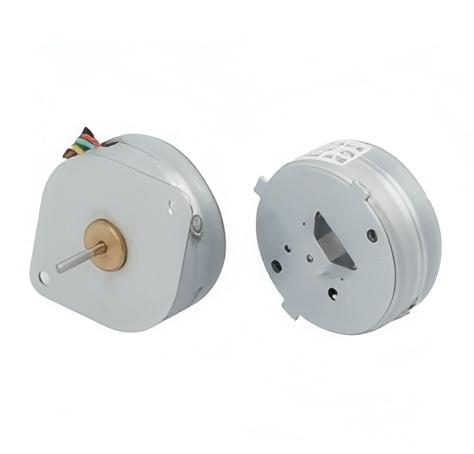

SH35BY48B High-Performance Linear Stepper Motor
The SH35BY48B series linear stepper motor is a versatile solution designed for both household and industrial precision equipment. With a 35mm form factor and 60-70g weight, it balances compactness and power, fitting seamlessly into diverse devices.
Core Advantages & Specifications
Operating across -10℃ to 55℃, the motor adapts to temperature variations in household (water-heaters, sewing machines) and office (printers, attendance machines) environments. It boasts E-class insulation and 100MΩ minimum insulation resistance, ensuring safety and durability. Equipped with 4-phase configuration, 7.5° step angle and 250-300g.cm holding torque, it delivers precise positioning for flow control valves and industrial devices, with multiple voltage/current options to meet varied operational needs.
5. Model Parameter Table

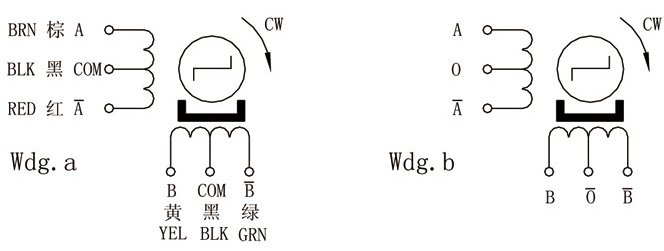

| Model | Step Angle (Deg) | Phases | Voltage (V) | Current (A) | Resistance (Ω) | Holding Torque (g.cm) | Detent Torque (g.cm) | Rotor Inertia (g.cm²) | Wiring Diagram | Figure | Weight (g) |
| SH35BY48B01 | 7.5 | 4 | 5 | 0.5 | 10 | 250 | 80 | 5.6 | a | 1 | 70 |
| SH35BY48B02 | 7.5 | 4 | 24 | 0.22 | 110 | 300 | 80 | 5.6 | a | 1 | 70 |
| SH35BY48B04 | 7.5 | 4 | 12 | 0.24 | 50 | 300 | 80 | 5.6 | a | 1 | 70 |
| SH35BY48B08 | 7.5 | 4 | 24 | 0.166 | 145 | 300 | 80 | 5.6 | b | 2 | 60 |
| SH35BY48B10 | 7.5 | 4 | 12 | 0.171 | 70 | 300 | 80 | 5.6 | a | 1 | 70 |
