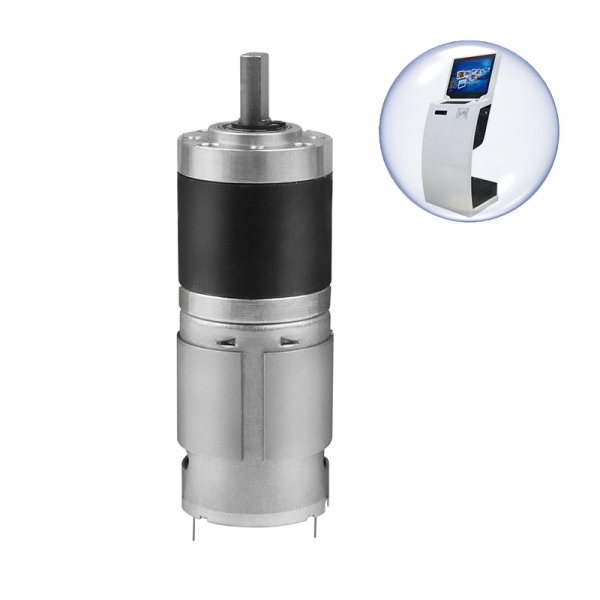

SH28-385 Planetary DC Gear Motor - 12V/24V High Torque for Compact Automation

Rated Voltage: 12V / 24V
Reduction Ratio Range: 6.25 – 810
No-Load Speed Range: 7 – 960 RPM
No-Load Current Range: 0.1 – 0.13 A
Rated Load Speed Range: 6 – 685 RPM
Rated Load Current: 0.9 A
Rated Load Torque Range: 0.94 – 60 Kg.cm
Rated Load Power: 15 W
Stall Torque Range: 4 – 180 Kg.cm
Stall Current: 6.5 A

  • SH28-385

  • SHINE

  • 20221153

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

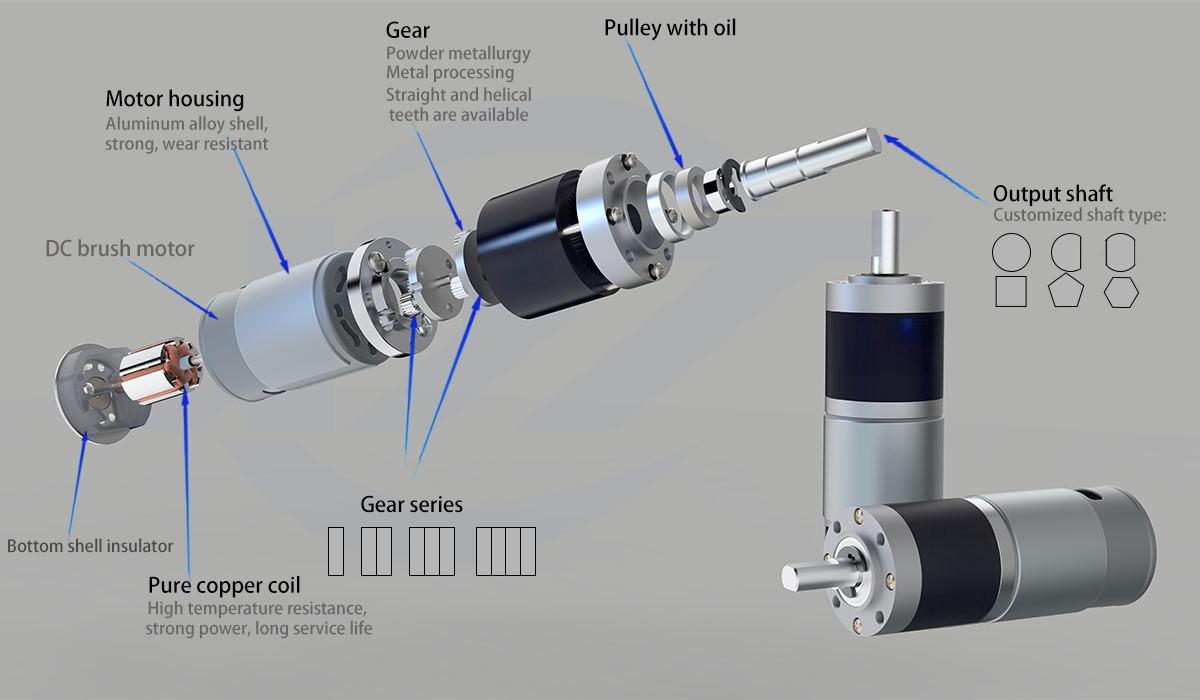

GA28Y-385

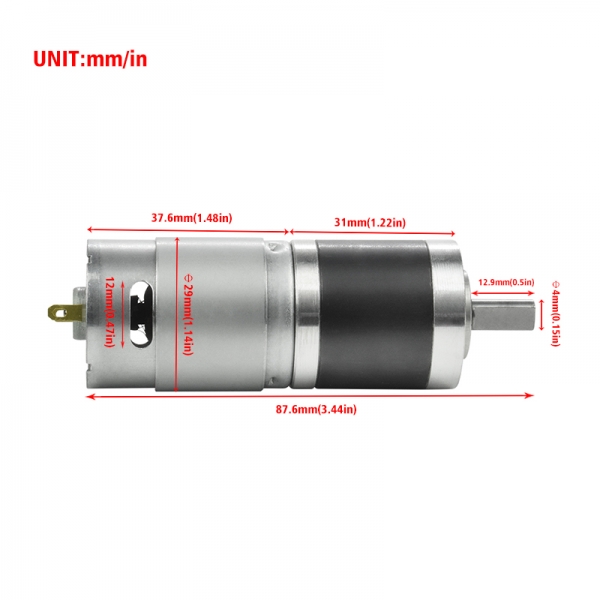

Drawing

GA28Y-385-285-29

Applications

Household Appliances

The GA36Y-3650 excels in smart home devices like electric curtains (smooth, quiet operation), integrated stoves (precise valve control), coffee machines (consistent grinding), smart toilets (automated flushing), sweeping robots (reliable navigation), dishwashers (stable water pump drive), range hoods (adjustable fan speed), and smart door locks (secure, responsive locking). Its low noise and precise torque make it ideal for enhancing user experience in daily living.

Personal Care & Office Equipment

In personal care, it powers curling irons (consistent heat control), massage equipment (customizable intensity), and electric hair clippers (smooth cutting motion). For offices, it drives paper shredders (reliable shredding force), printers (precise paper feed), projectors (adjustable lens movement), banknote counters (accurate counting speed), and coin counters (stable sorting).

Medical & Industrial Equipment

Medical applications include massage chairs (customizable massage programs), electric carts (stable patient transport), medical pumps (precise fluid delivery), electric beds (smooth position adjustment), and electric wheelchairs (reliable mobility). In industrial settings, it operates water/electricity valves (leak-proof control), air switches (safe power regulation), pumps (consistent fluid transfer), automatic door switches (seamless opening/closing), and automatic lubrication equipment (timed lubricant delivery).

Commercial & Robotics

Commercial uses span vending machines (reliable product dispensing), parking locks (secure positioning), ATM machines (smooth cash handling), and smart lamps (adjustable brightness/angle). In robotics, it enables manipulators (precise object handling), drones (stable propulsion), and service robots (autonomous navigation), thanks to its high torque and precision control.


Packing Details

Quantity: 100pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 17.4 kg/ctn

Net weight: 16.8 kg/ctn

Unit weight: 168g
