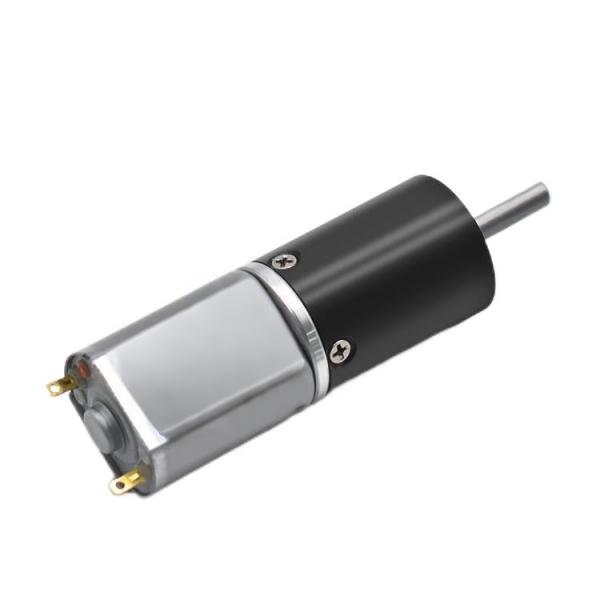

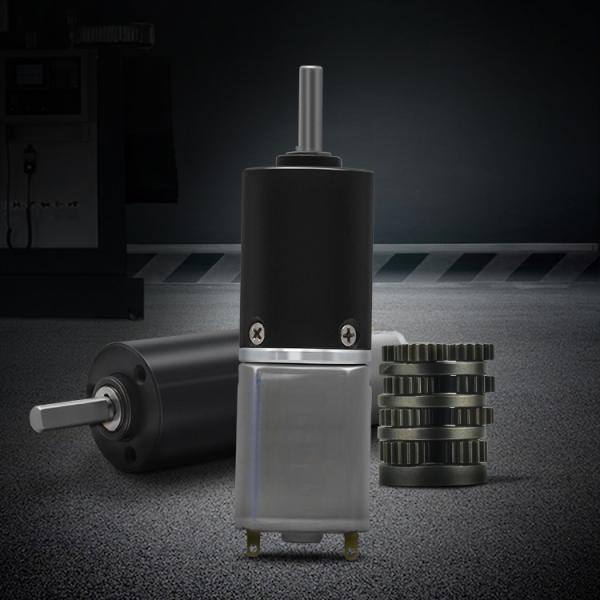

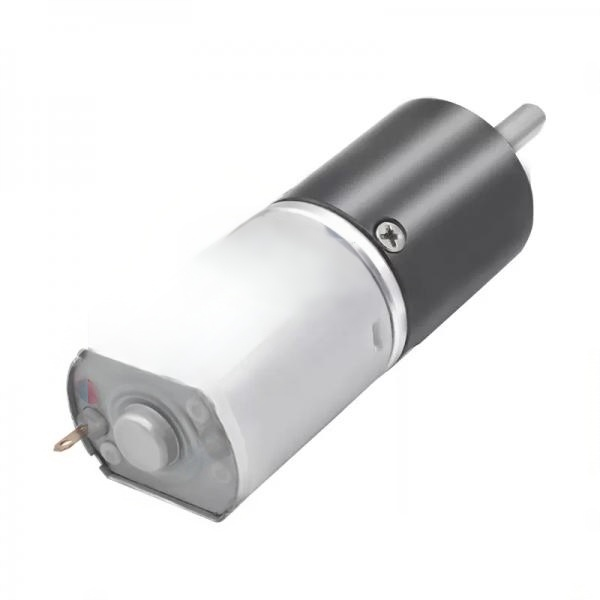

GA20Y-130 Planetary Gear DC Motor - High-Precision, Low-Noise Gear Motor | Factory Direct Supply

GA20Y-130 Planetary Gear DC Motor - High-Precision, Low-Noise Gear Motor | Factory Direct Supply

Rated Voltage: 12-24V
Reduction Ratio: 4.38-850I
No-load speed(RPM): 11~2280rpm
No-Load Current mA(≤): 90-180mA
Rated Speed(RPM): 10-2009rpm
Rated Current mA(≤): 210-410mA
Rated Torque(Kg,cm): 0.04-7 kg,cm
Stall/Maximum Torque (Kg,cm): 0.12-25kg,cm
Stall Current(A) : 0.95-0.95A

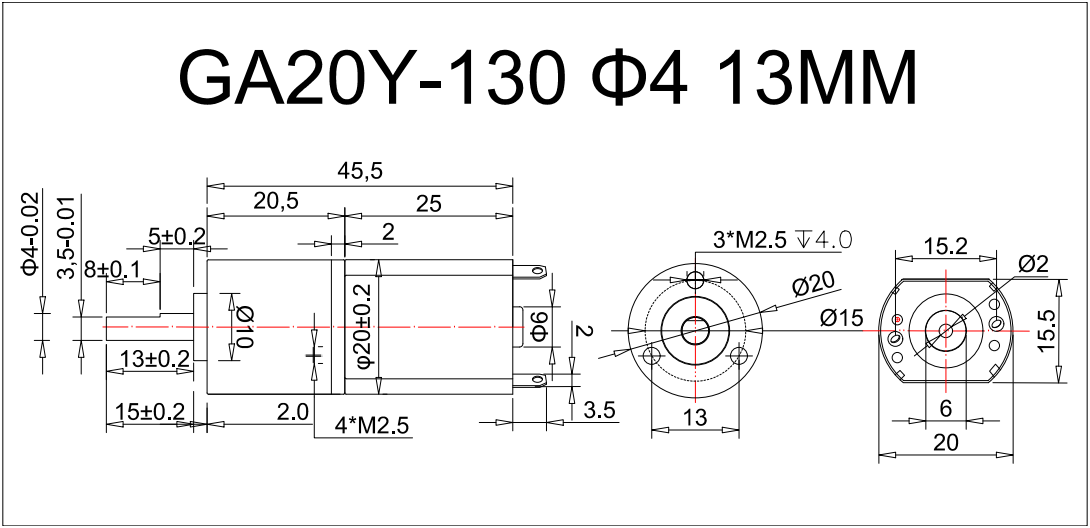

Shaft: 416 Steel, Φ4.0 Length 13mm ,
Gear: sun gear , planetery powder gear

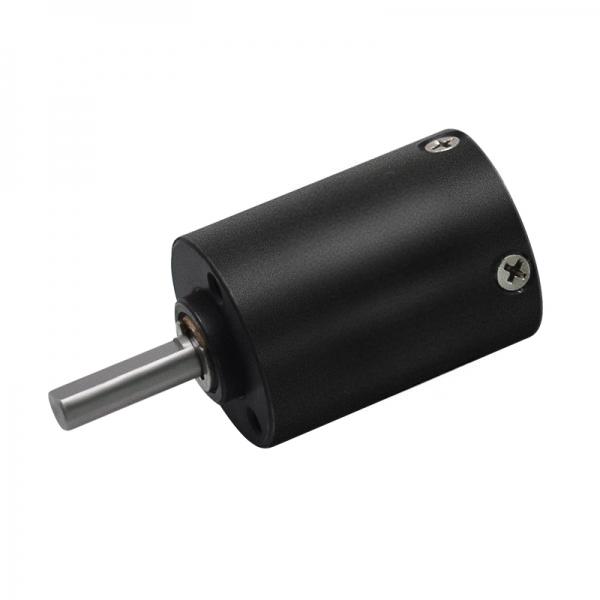

Ring gear: Zinc alloy black plated

Model:
GA20Y-130
Brand:
SHINE
Code:
20221148


Availability:



Inquiry

Product Description

Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
GA20Y-130-12100	4.38	12	2280	0.18	2009	0.41	0.04	4.5	0.12	0.95	16.3	59	CW	1.5
GA20Y-130-12100	19	12	526	0.18	463	0.41	0.15	4.5	0.6	0.95	20.5	61	CW	1.5
GA20Y-130-12100	24	12	416	0.18	366	0.41	0.2	4.5	0.7	0.95	20.5	61	CW	1.5
GA20Y-130-12100	84	12	119	0.18	104	0.41	0.7	4.5	2.5	0.95	24.8	64	CW	1.5
GA20Y-130-12100	128	12	78	0.18	68	0.41	1	4.5	3.8	0.95		64	CW	1.5
GA20Y-130-12100	157	12	63	0.18	56	0.41	1.3	4.5	4.5	0.95		64	CW	1.5
GA20Y-130-12100	370	12	27	0.18	23	0.41	2	4.5	7.5	0.95	29	69	CW	1.5
GA20Y-130-12100	560	12	17	0.18	15	0.41	4.5	4.5	16	0.95		69	CW	1.5
GA20Y-130-12100	850	12	11	0.18	10	0.41	7	4.5	25	0.95		69	CW	1.5
Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
GA20Y-130-24100	4.38	24	2280	0.09	2009	0.21	0.04	4.5	0.12	0.95	16.3	59	CW	1.5
GA20Y-130-24100	19	24	526	0.09	463	0.21	0.15	4.5	0.6	0.95	20.5	61	CW	1.5
GA20Y-130-24100	24	24	416	0.09	366	0.21	0.2	4.5	0.7	0.95	20.5	61	CW	1.5
GA20Y-130-24100	84	24	119	0.09	104	0.21	0.7	4.5	2.5	0.95	24.8	64	CW	1.5
GA20Y-130-24100	128	24	78	0.09	68	0.21	1	4.5	3.8	0.95		64	CW	1.5
GA20Y-130-24100	157	24	63	0.09	56	0.21	1.3	4.5	4.5	0.95		64	CW	1.5
GA20Y-130-24100	370	24	27	0.09	23	0.21	2	4.5	7.5	0.95	29	69	CW	1.5
GA20Y-130-24100	560	24	17	0.09	15	0.21	4.5	4.5	16	0.95		69	CW	1.5
GA20Y-130-24100	850	24	11	0.09	10	0.21	7	4.5	25	0.95		69	CW	1.5
