GA36Y-3650 Planetary DC Gear Motor - High Torque 12V/24V for Robotics & Appliances

GA36Y-3650 Planetary DC Gear Motor - High Torque 12V/24V for Robotics & Appliances

Model: GA36Y-3650 Series
Reduction Ratio: 3.7–721
Rated Voltage (V): 12V, 24V
No-Load Speed (RPM): 8–2160 RPM
No-Load Current (A): 0.2–0.48 A
Rated Load Speed (RPM): 8–1945 RPM
Rated Load Current (A): 0.75–1.25 A
Rated Load Torque (Kg.cm): 0.7–100 Kg.cm
Rated Load Power (W): 15–300 W
Stall Torque (Kg.cm): 2.7–300 Kg.cm
Stall Current (A): 1.7–3.7 A
Gearbox Length (MM): 28.7–47 MM
Weight (G): 339–444 G
Output Direction: CCW
Starting Voltage (V): 6–9.1 V

Model:
GA36Y-3650
Brand:
SHINE
Code:
20221151


Availability:



Inquiry

Product Description

电机型号 Motor Model	减速比 Reduction ratio	额定电压 Rated Voltage (V)	空载转速 No-Load Speed (RPM±10%)	空载电流 No-Load Current (A)	额定负载转速 Rated Load Speed (RPM±10%)	额定负载电流 Rated Load Current (A)	额定负载转矩 Rated Load Torque (Kg.cm)	额定负载功率 Rated Load Power (W)	堵转转矩 Stall Torque (Kg.cm)	堵转电流 Stall Current (A)	减速箱长度 Gearbox Length (MM)	重量 Weight (G)	输出转向 Output Direction	启动电压 Starting Voltage (V)
GA36Y-3650-1280	3.7	12	2160	0.48	1945	1.2	0.7	15.0	2.7	3.7	28.7	339	CCW	8.9
GA36Y-3650-1280	5.18	12	1544	0.47	1349	1.2	1.0	16.0	3.15	3.7	28.7	339	CCW	8.9
GA36Y-3650-1280	19	12	421	0.41	368	1.025	3.3	14.0	8.3	3.7	34.5	373	CCW	9.18
GA36Y-3650-1280	27	12	296	0.42	260	1.025	4.7	14.7	10.0	3.7	34.5	373	CCW	9.1
GA36Y-3650-1280	50	12	160	0.44	140	1.1	7.8	13.0	18.0	3.7	40.7	408	CCW	9.0
GA36Y-3650-1280	71	12	112	0.46	90	1.1	11.1	12.0	25.2	3.7	40.7	408	CCW	8.7
GA36Y-3650-1280	100	12	80	0.46	65	1.1	15.6	12.0	32.5	3.7	40.7	408	CCW	9.1
GA36Y-3650-1280	139	12	57	0.43	47	1.025	21.8	13.0	42.9	3.7	408	408	CCW	9.1
GA36Y-3650-1280	189	12	42	0.51	35	1.275	26.4	15.0	53.4	3.7	444	444	CCW	9.1
GA36Y-3650-1280	262	12	30	0.51	25	1.275	36.6	16.5	83.3	3.7	444	444	CCW	9.1
GA36Y-3650-1280	369	12	21	0.36	18	0.9	51.5	15.0	121.0	3.7	444	444	CCW	9.0
GA36Y-3650-1280	427	12	18	0.44	15	1.1	59.6	14.0	150.0	3.7	47	444	CCW	9.1
GA36Y-3650-1280	516	12	15	0.38	12	0.9	72.0	14.0	166.0	3.7	47	444	CCW	9.1
GA36Y-3650-1280	596	12	13	0.41	10	1.025	83.0	13.8	214.0	3.7	47	444	CCW	9.1
GA36Y-3650-1280	721	12	11	0.41	9	1.025	100.0	12.6	300.0	3.7	47	444	CCW	9.0
GA36Y-555-2480	3.7	24	2160	0.2	1845	0.7	0.79	16.0	2.9	1.7	28.7	339	CCW	6.0
GA36Y-555-2480	5.18	24	1544	0.25	1290	0.75	1.1	18.0	3.25	1.7	28.7	339	CCW	6.0
GA36Y-555-2480	19	24	421	0.21	378	0.7	3.6	16.0	8.9	1.7	34.5	373	CCW	6.0
GA36Y-555-2480	27	24	296	0.25	266	0.75	5.2	18.0	14.4	1.7	34.5	373	CCW	6.0
GA36Y-555-2480	50	24	160	0.32	140	0.82	8.7	24.0	21.5	1.7	40.7	408	CCW	6.0
GA36Y-555-2480	71	24	112	0.33	91	0.82	12.4	24.0	33.0	1.7	40.7	408	CCW	6.0
GA36Y-555-2480	100	24	80	0.21	70	0.7	17.5	16.0	53.0	1.7	40.7	408	CCW	6.0
GA36Y-555-2480	139	24	57	0.3	50	0.75	24.3	18.0	72.5	1.7	408	408	CCW	6.0
GA36Y-555-2480	189	24	42	0.31	37	0.75	29.4	18.0	86.0	1.7	444	444	CCW	6.0
GA36Y-555-2480	262	24	30	0.25	26	0.75	40.8	18.0	115.0	1.7	444	444	CCW	6.0
GA36Y-555-2480	369	24	21	0.26	18	0.75	57.5	18.0	165.0	1.7	444	444	CCW	6.0
GA36Y-555-2480	427	24	18	0.28	15	0.75	66.6	18.0	179.0	1.7	47	444	CCW	6.0
GA36Y-555-2480	516	24	15	0.24	12	0.75	80.0	18.0	206.0	1.7	47	444	CCW	6.0
GA36Y-555-2480	596	24	13	0.21	11	0.75	92.0	18.0	230.0	1.7	47	444	CCW	6.0
GA36Y-555-2480	721	24	11	0.29	8	0.75	100.0	18.0	300.0	1.7	47	444	CCW	6.0

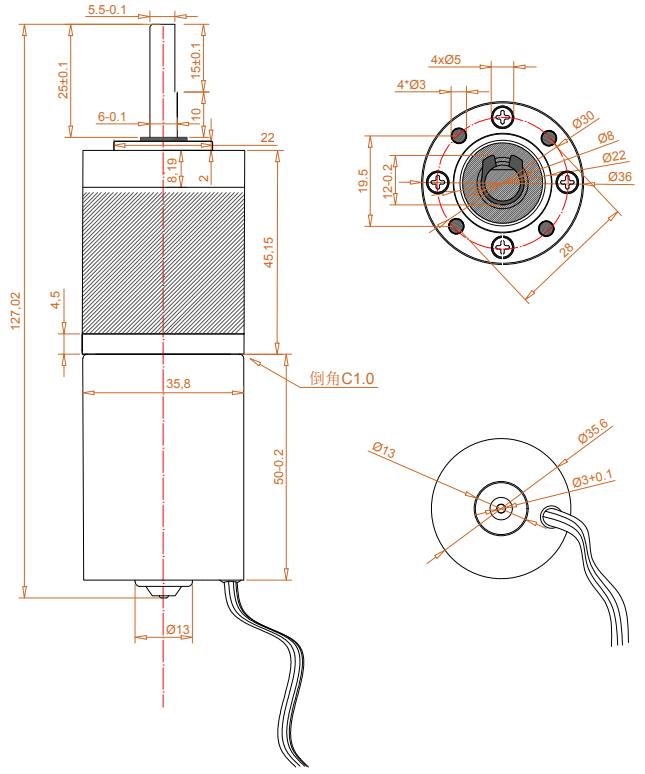

Outline Dimension

GA36Y-3650-E8-A1-8C-E6-98-9F-E7-94-B5-E6-9C-BAD6

Applications

Household Appliances

The GA36Y-3650 excels in smart home devices like electric curtains (smooth, quiet operation), integrated stoves (precise valve control), coffee machines (consistent grinding), smart toilets (automated flushing), sweeping robots (reliable navigation), dishwashers (stable water pump drive), range hoods (adjustable fan speed), and smart door locks (secure, responsive locking). Its low noise and precise torque make it ideal for enhancing user experience in daily living.

Personal Care & Office Equipment

In personal care, it powers curling irons (consistent heat control), massage equipment (customizable intensity), and electric hair clippers (smooth cutting motion). For offices, it drives paper shredders (reliable shredding force), printers (precise paper feed), projectors (adjustable lens movement), banknote counters (accurate counting speed), and coin counters (stable sorting).

Medical & Industrial Equipment

Medical applications include massage chairs (customizable massage programs), electric carts (stable patient transport), medical pumps (precise fluid delivery), electric beds (smooth position adjustment), and electric wheelchairs (reliable mobility). In industrial settings, it operates water/electricity valves (leak-proof control), air switches (safe power regulation), pumps (consistent fluid transfer), automatic door switches (seamless opening/closing), and automatic lubrication equipment (timed lubricant delivery).

Commercial & Robotics

Commercial uses span vending machines (reliable product dispensing), parking locks (secure positioning), ATM machines (smooth cash handling), and smart lamps (adjustable brightness/angle). In robotics, it enables manipulators (precise object handling), drones (stable propulsion), and service robots (autonomous navigation), thanks to its high torque and precision control.

Packing Details

Quantity: 56pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 25.9 kg/ctn

Net weight: 24.9 kg/ctn

Unit weight: 444g
