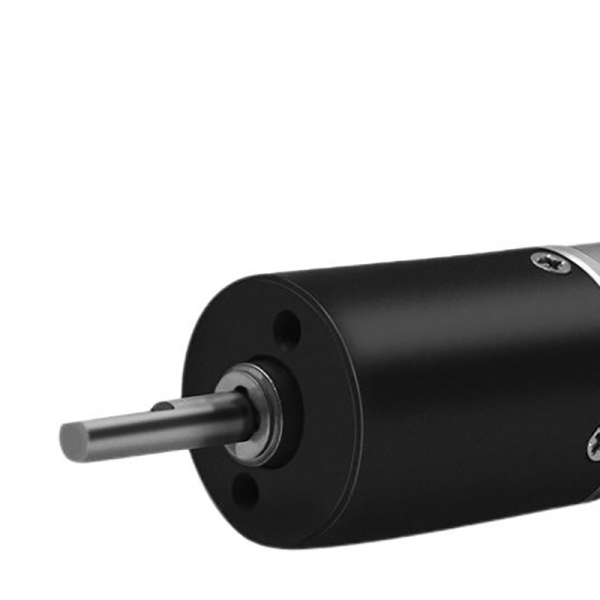

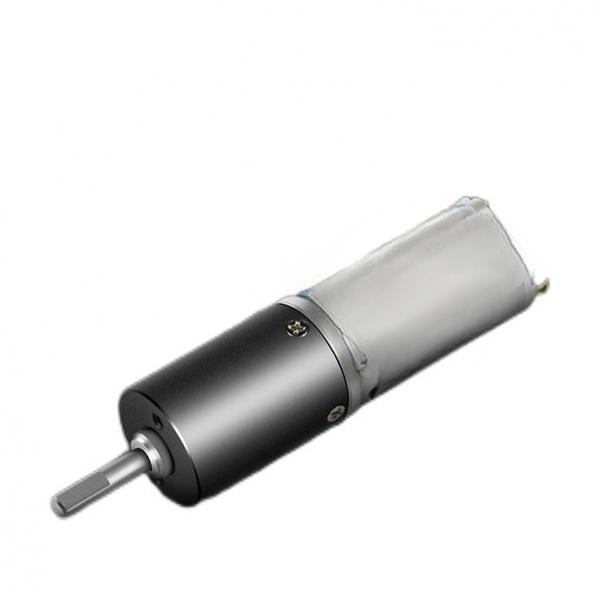

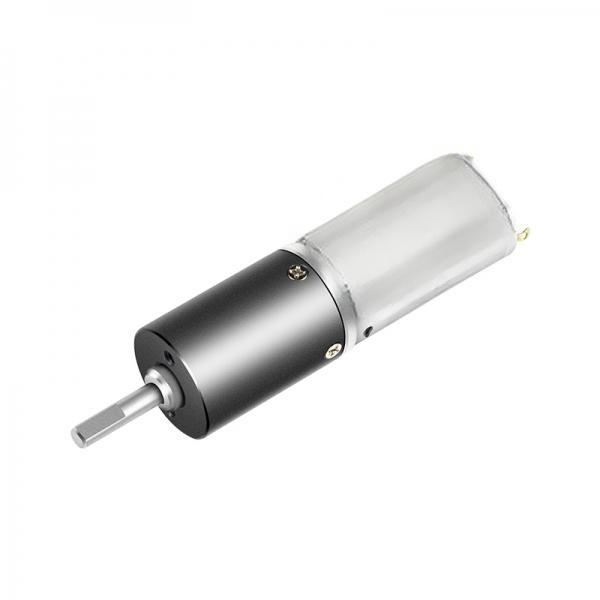

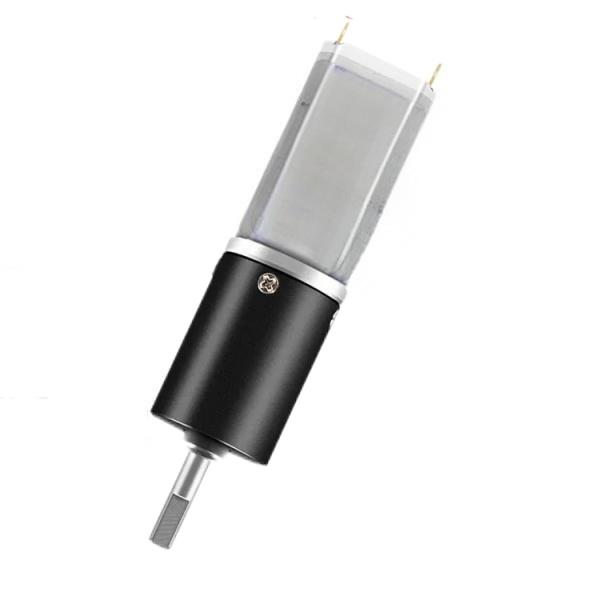

GA16Y-030 Φ3 Planetary DC Gear Motor 12mm Diameter - Reliable for Automation Projects

Rated Voltage: 6-12V
Reduction Ratio: 4.75-1026I
No-load speed(RPM): 11.5~2526rpm
No-Load Current mA(≤): 100-200mA
Rated Speed(RPM): 8.5-1852rpm
Rated Current mA(≤): 300-500mA
Rated Torque(Kg,cm): 0.04-7kg,cm
Stall/Maximum Torque (Kg,cm): 0.11-24kg,cm
Stall Current(A) : 0.8-1.2A
Shaft: 416 Steel, Φ3.0 Length 12mm ,

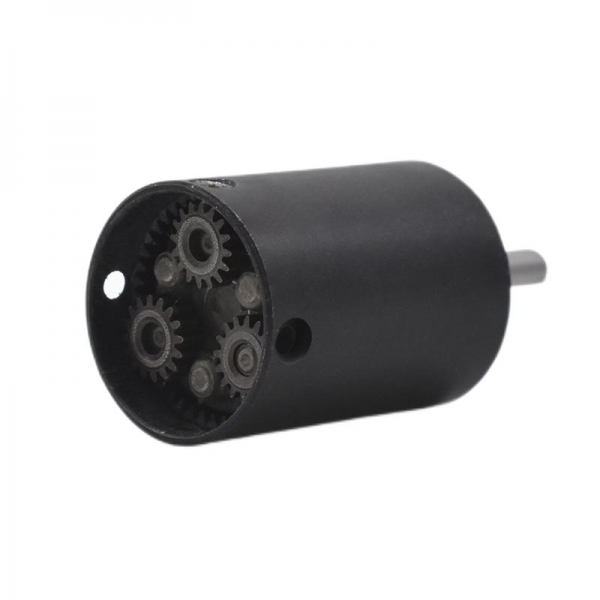

Gear: powder gear

Model:
GA16Y-030 Φ3 12mm
Brand:
SHINE
Code:
20221150


Availability:



Inquiry

Product Description

Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
GA16Y-030-06120	4.75	6	2526	0.16	1852	0.3	0.02	1.8	0.07	0.8	13.5	59	CW	0.6
GA16Y-030-06120	16	6	750	0.16	550	0.3	0.05	1.8	0.2	0.8	17	61	CW	0.6
GA16Y-030-06120	22.5	6	533	0.16	391	0.3	0.08	1.8	0.3	0.8	17	61	CW	0.6
GA16Y-030-06120	49	6	245	0.16	180	0.3	0.16	1.8	0.7	0.8	20.5	64	CW	0.6
GA16Y-030-06120	64	6	187	0.16	137	0.3	0.2	1.8	0.9	0.8		64	CW	0.6
GA16Y-030-06120	84	6	143	0.16	105	0.3	0.3	1.8	1.1	0.8		64	CW	0.6
GA16Y-030-06120	135	6	89	0.16	65	0.3	0.5	1.8	1.8	0.8		69	CW	0.6
GA16Y-030-06120	224	6	53.5	0.16	39	0.3	0.7	1.8	3	0.8	24	69	CW	0.6
GA16Y-030-06120	304	6	39	0.16	29	0.3	1	1.8	4	0.8		69	CW	0.6
GA16Y-030-06120	399	6	30	0.16	22	0.3	1.3	1.8	5	0.8		69	CW	0.6
GA16Y-030-06120	509	6	23.5	0.16	17	0.3	1.7	1.8	7	0.8		69	CW	0.6
GA16Y-030-06120	684	6	17.5	0.16	13	0.3	2.3	1.8	9	0.8		69	CW	0.6
GA16Y-030-06120	1026	6	11.5	0.16	8.5	0.3	3.5	1.8	14	0.8		69	CW	0.6
Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
GA16Y-030-12120	4.75	12	2526	0.08	1852	0.14	0.02	1.6	0.07	0.32	13.5	59	CW	2
GA16Y-030-12120	16	12	750	0.08	550	0.14	0.05	1.6	0.2	0.32	17	61	CW	2
GA16Y-030-12120	22.5	12	533	0.08	391	0.14	0.08	1.6	0.3	0.32	17	61	CW	2
GA16Y-030-12120	49	12	245	0.08	180	0.14	0.16	1.6	0.7	0.32	20.5	64	CW	2
GA16Y-030-12120	64	12	187	0.08	137	0.14	0.2	1.6	0.9	0.32		64	CW	2
GA16Y-030-12120	84	12	143	0.08	105	0.14	0.3	1.6	1.1	0.32		64	CW	2
GA16Y-030-12120	135	12	89	0.08	65	0.14	0.5	1.6	1.8	0.32		69	CW	2
GA16Y-030-12120	224	12	53.5	0.08	39	0.14	0.7	1.6	3	0.32	24	69	CW	2
GA16Y-030-12120	304	12	39	0.08	29	0.14	1	1.6	4	0.32		69	CW	2
GA16Y-030-12120	399	12	30	0.08	22	0.14	1.3	1.6	5	0.32		69	CW	2
GA16Y-030-12120	509	12	23.5	0.08	17	0.14	1.7	1.6	7	0.32		69	CW	2
GA16Y-030-12120	684	12	17.5	0.08	13	0.14	2.3	1.6	9	0.32		69	CW	2
GA16Y-030-12120	1026	12	11.5	0.08	8.5	0.14	3.5	1.6	14	0.32		69	CW
