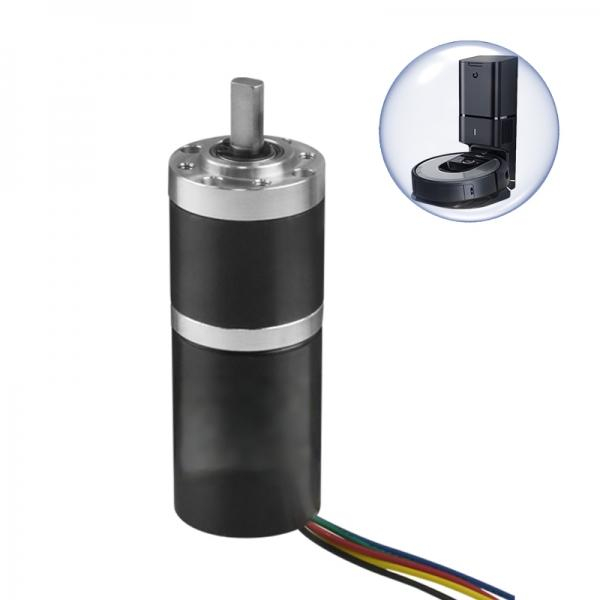

SH28-2838 Planetary DC Gear Motor - Compact 12V/24V for Smart Home & Robotics

Rated Voltage: 12V / 24V
Reduction Ratio Range: 6.25 – 810
No-Load Speed Range: 7 – 960 RPM
No-Load Current Range: 0.1 – 0.13 A
Rated Load Speed Range: 6 – 685 RPM
Rated Load Current: 0.9 A
Rated Load Torque Range: 0.94 – 60 Kg.cm
Rated Load Power: 15 W
Stall Torque Range: 4 – 180 Kg.cm
Stall Current: 6.5 A

Model:
SH28-2838
Brand:
SHINE
Code:
20221153


Availability:



Inquiry

Product Description

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGB37-555-1260	6.25	12	960	0.12	685	0.9	0.94	15.00	4	6.5
	10	12	600	0.12	428	0.9	1.50	15.00	4.8	6.5
	18.8	12	319	0.12	228	0.9	2.82	15.00	6	6.5
	30	12	200	0.12	142	0.9	4.50	15.00	18	6.5
	56	12	107	0.13	76	0.9	8.40	15.00	32	6.5
	90	12	66	0.13	50	0.9	13.50	15.00	52	6.5
	131	12	45	0.13	32	0.9	19.65	15.00	76	6.5
	169	12	35	0.13	25	0.9	25.35	15.00	87.5	6.5
	270	12	22	0.13	16	0.9	40.50	15.00	141	6.5
	506	12	11	0.13	9	0.9	60.00	15.00	180	6.5
	810	12	7	0.13	6	0.9	60.00	15.00	180	6.5
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGB37-555-2460	6.25	24	960	0.1	685	0.9	0.94	15.00	4	6.5
	10	24	600	0.1	428	0.9	1.50	15.00	4.8	6.5
	18.8	24	319	0.1	228	0.9	2.82	15.00	6	6.5
	30	24	200	0.1	142	0.9	4.50	15.00	18	6.5
	56	24	107	0.1	76	0.9	8.40	15.00	32	6.5
	90	24	66	0.1	50	0.9	13.50	15.00	52	6.5
	131	24	45	0.1	32	0.9	19.65	15.00	76	6.5
	169	24	35	0.1	25	0.9	25.35	15.00	87.5	6.5
	270	24	22	0.1	16	0.9	40.50	15.00	141	6.5
	506	24	11	0.1	9	0.9	60.00	15.00	180	6.5
	810	24	7	0.1	6	0.9	60.00	15.00	180	6.5
工程师建议 The engineer recommends：30kg以上不支持堵转 Blocked(Stall) rotor is not supported above 30kg

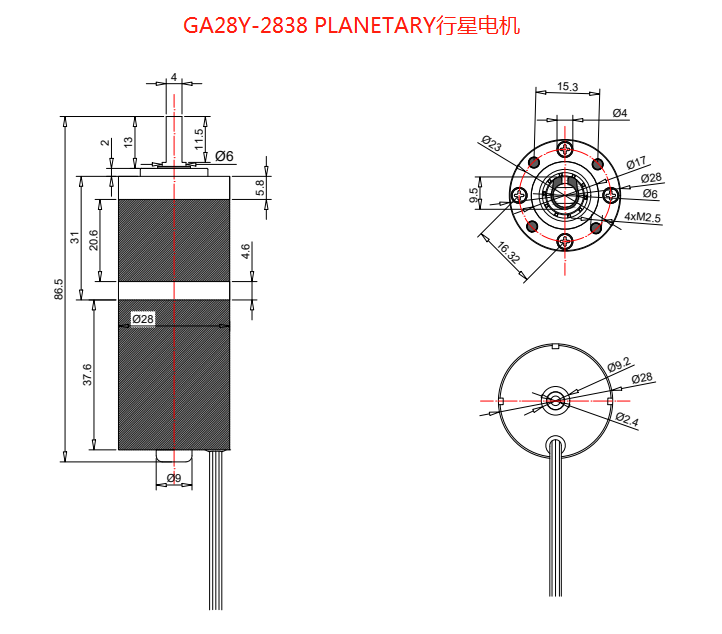

Drawing

GA28Y-2838尺寸图

Applications

Household Appliances

The GA36Y-3650 excels in smart home devices like electric curtains (smooth, quiet operation), integrated stoves (precise valve control), coffee machines (consistent grinding), smart toilets (automated flushing), sweeping robots (reliable navigation), dishwashers (stable water pump drive), range hoods (adjustable fan speed), and smart door locks (secure, responsive locking). Its low noise and precise torque make it ideal for enhancing user experience in daily living.

Personal Care & Office Equipment

In personal care, it powers curling irons (consistent heat control), massage equipment (customizable intensity), and electric hair clippers (smooth cutting motion). For offices, it drives paper shredders (reliable shredding force), printers (precise paper feed), projectors (adjustable lens movement), banknote counters (accurate counting speed), and coin counters (stable sorting).

Medical & Industrial Equipment

Medical applications include massage chairs (customizable massage programs), electric carts (stable patient transport), medical pumps (precise fluid delivery), electric beds (smooth position adjustment), and electric wheelchairs (reliable mobility). In industrial settings, it operates water/electricity valves (leak-proof control), air switches (safe power regulation), pumps (consistent fluid transfer), automatic door switches (seamless opening/closing), and automatic lubrication equipment (timed lubricant delivery).

Commercial & Robotics

Commercial uses span vending machines (reliable product dispensing), parking locks (secure positioning), ATM machines (smooth cash handling), and smart lamps (adjustable brightness/angle). In robotics, it enables manipulators (precise object handling), drones (stable propulsion), and service robots (autonomous navigation), thanks to its high torque and precision control.

Packing Details

Quantity: 100pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 18.6 kg/ctn

Net weight: 17.9 kg/ctn

Unit weight: 179g
