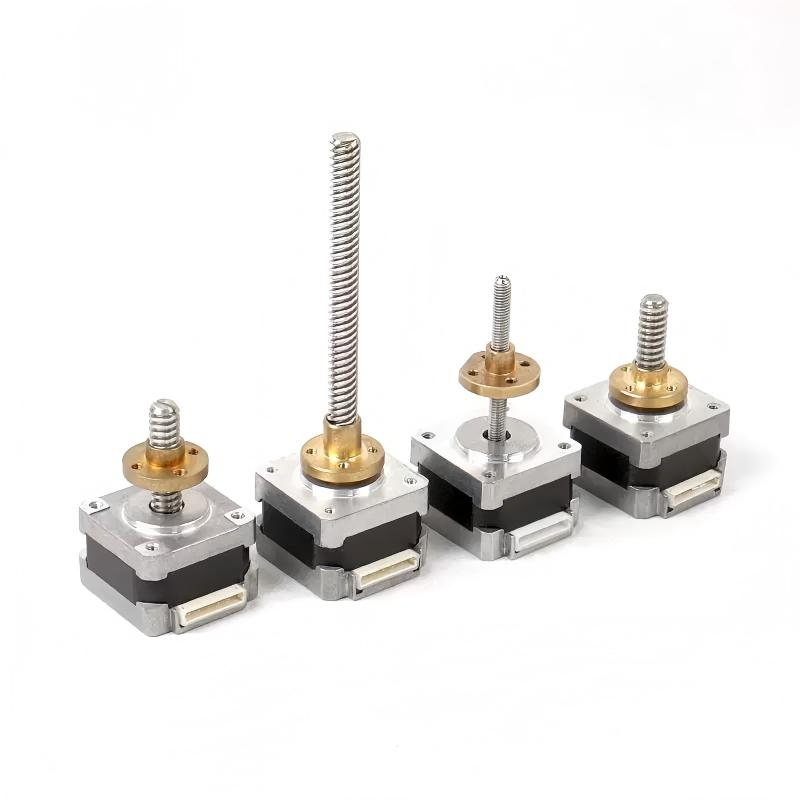

SHZW35BYGH HL Linear Stepper Motor - High-Precision for Medical/3D Printing/Valve Control

With a 1.8° step angle, Class B insulation (100MΩ MIN insulation resistance at 500V DC), and -20℃～+55℃ operating temperature, the SHZW35BYGH HL Linear Stepper Motor offers 16.6-25g.cm holding torque, 1.6-2g.cm detent torque, and 14-22g.cm² rotor inertia, fitting precision industrial uses.

Model:
SHZW35BYGH
Brand:
SHINE
Code:
20221215


Availability:



Inquiry

Product Description

Motor Features and Technical Parameters

The SHZW35BYGH HL Linear Stepper Motor is designed for high-precision motion control in key industries like medical equipment, tap control, and 3D printer X-Y workbenches. It ensures reliable performance with a 1.8deg step angle, the ability to adapt to -20℃～+55℃ ambient temperature, and Class B insulation (insulation resistance ≥100MΩ at 500V DC), guaranteeing safety in various working conditions.

It comes with different voltage, current, and torque configurations to meet diverse operational needs. The detailed specifications of each model are as follows:

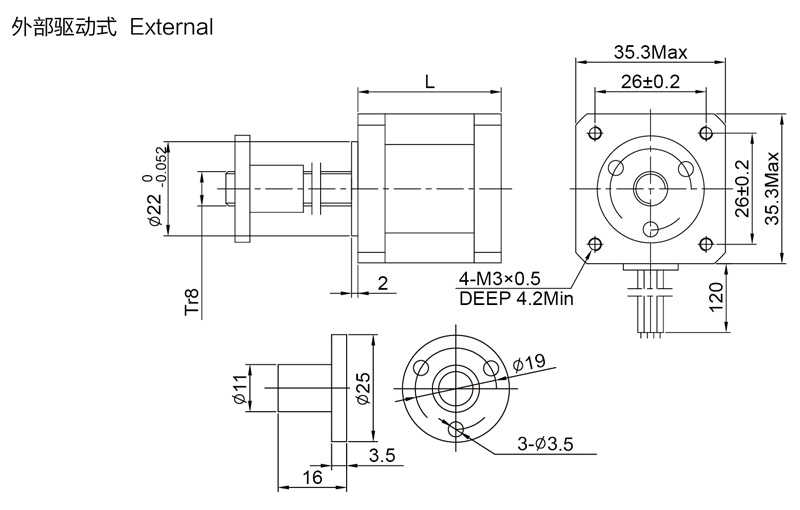

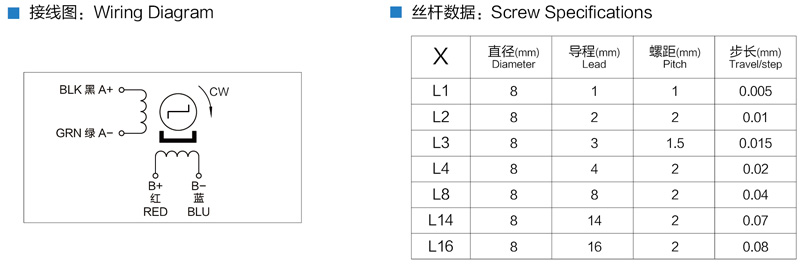

Model	Volt.(V)	Current(A)	Resistance(Ω)	Inductance(mH)	Holding torque(g.cm)	Detent torque(g.cm)	Rotor Inertia(g.cm²)	Length(mm)	Weight(g)
SHZW35BYGH301-X	5.76	0.8	7.2	12	18	1.6	14	34	200
SHZW35BYGH402-X	2.7	1	2.7	3.9	16.6	2	20	36	220
SHZW35BYGH502-X	5	1	5	6.8	25	2	22	45	230

Application

Detailed Application Scope

The SHZW35BYGH HL Linear Stepper Motor performs outstandingly in precision-required fields due to its strong performance. In medical equipment, its accurate control ensures the stable operation of diagnostic and therapeutic devices, such as the component drives of testing instruments. For tap control, it allows precise adjustment of valve openings to meet strict fluid control demands.

In 3D printing, it drives X-Y workbenches with stable and precise displacement, improving print quality through consistent movement. Besides 3D printing, X-Y workbenches in automated testing and precision machining also gain advantages from this motor—its reliable performance ensures workbenches move accurately along preset paths, increasing the overall efficiency of the equipment.
