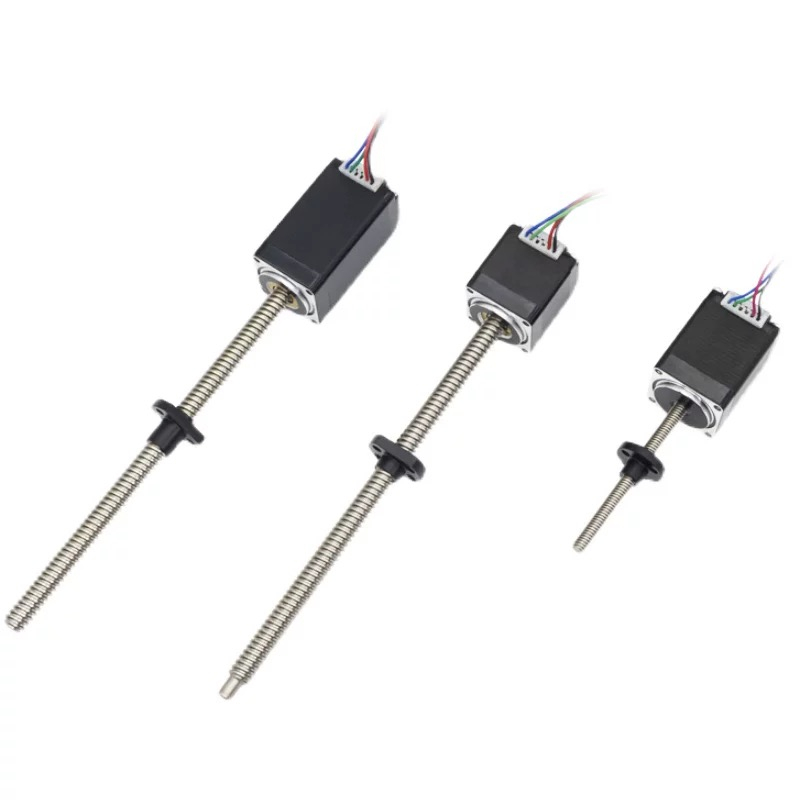

Overview of NEMA 17 Non-Captive Linear Actuator
The 42SH034DF730S-01 is a high-performance NEMA 17 non-captive linear actuator designed for precise linear motion control. Unlike captive actuators, its non-captive design allows the lead screw to move independently, making it suitable for applications requiring extended stroke lengths. With a 1.8° step angle, it delivers accurate positioning, ideal for robotics, automation, and electronic devices.
Key Features & Reliability
Constructed with premium materials and precision-engineered components, this actuator ensures durability and consistent performance. The 4-pin configuration enables easy integration with standard drivers, while IP40 protection safeguards against dust and debris. Operating at 0.67A current and 4.89V voltage, it maintains stable linear motion across -10°C~50°C, with low noise and minimal vibration, making it reliable for long-term use.

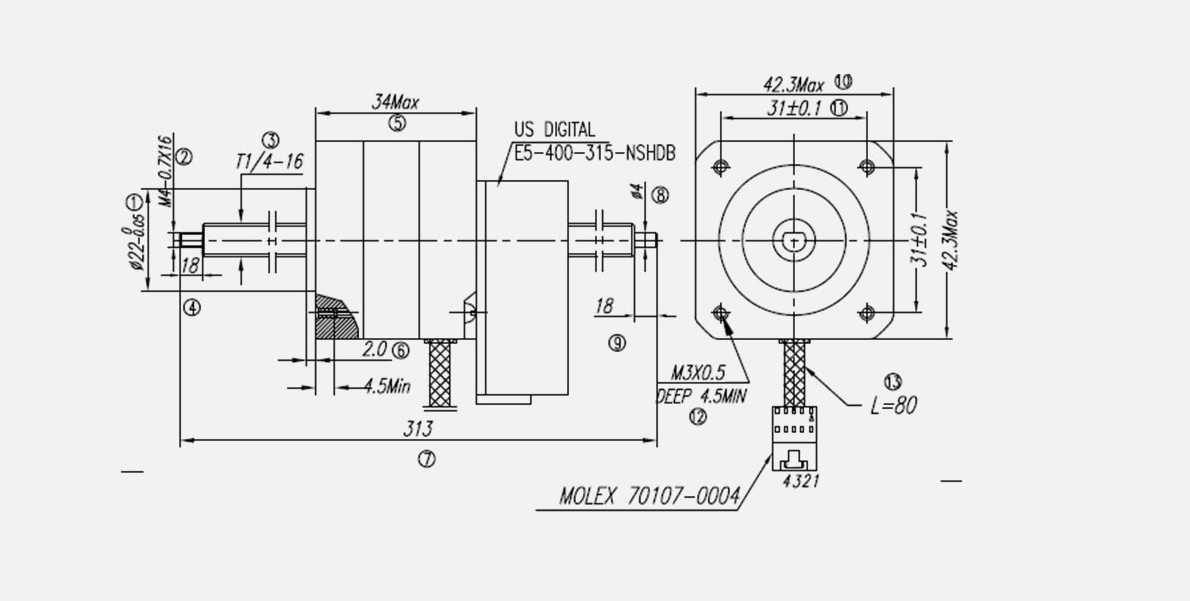

Model Parameter Table
| Model | Length (mm) | Step Angle | Resistance (Ω) | Current (A) | Voltage (V) | Holding Torque (N·cm) | Pin Count |
| 42SH034DF730S-01 | 34 | 1.8° | 7.3 | 0.67 | 4.89 | 25 | 4 |
