When we talk about cars, most people think about engines, horsepower, or electric motors. But in reality, sensors are the silent guardians inside every vehicle. Without them, modern transportation simply wouldn’t function safely or efficiently.
From early steam-powered vehicles in the 18th century to gasoline engines in the 19th century, and now to sensor-rich intelligent vehicles, automotive design has evolved dramatically. Today, whether it’s a car, motorcycle, truck, aircraft, or ship, sensors play a critical role in monitoring, controlling, and protecting power systems.
In this vlog-style article, I want to focus on one often-overlooked but extremely important component:
the engine oil pressure sensor.
The engine oil pressure sensor is one of the most critical automotive sensors. Its job is simple but vital:
monitor engine oil pressure and warn the driver when something goes wrong.
Without proper oil pressure:
Engine components lose lubrication
Friction increases rapidly
Severe engine damage can occur in seconds
That’s why oil pressure sensors are considered a core safety component in both traditional combustion engines and modern hybrid systems.
One of the most searched questions online is:
“How does an oil pressure sensor work?”
Let’s break it down in a simple way.

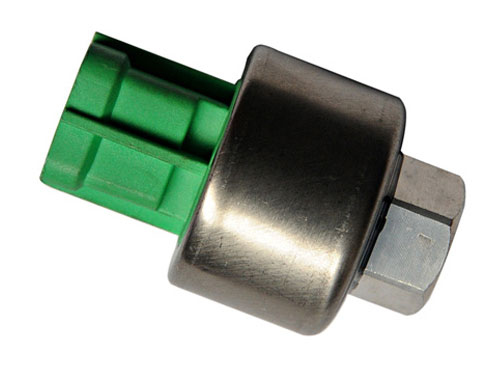

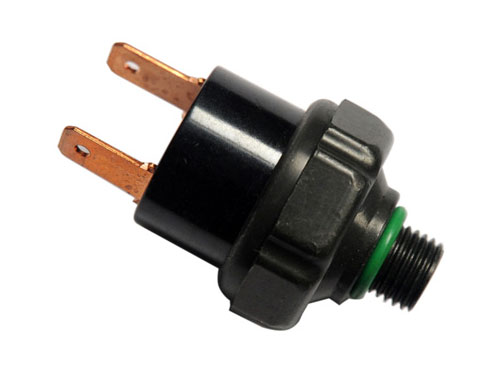

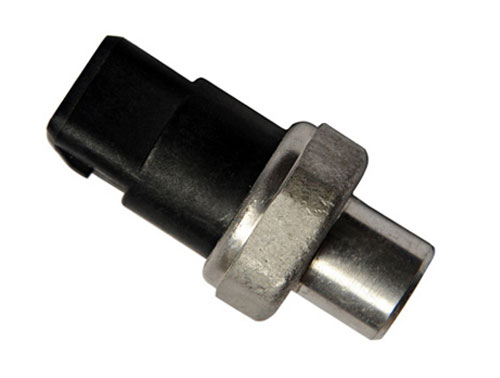

A standard oil pressure sensor operates as a pressure-activated electrical switch. When oil pressure moves outside a predefined range, the sensor sends a warning signal to the vehicle’s dashboard.
The two key components inside a traditional oil pressure sensor are:
Diaphragm – exposed directly to engine oil pressure
Spring-loaded electrical switch – reacts to diaphragm movement
The sensor is typically mounted on the engine block and connected to the oil gallery.
As oil pressure rises, it pushes against the diaphragm
The diaphragm overcomes the spring force
Electrical contacts open or close
A warning signal is sent to the dashboard indicator
If oil pressure drops below the safe threshold, the switch closes, triggering the low oil pressure warning light.
Every driver has seen the oil pressure warning light on the dashboard.
Here’s how it works in practice:
Flashing light → temporary pressure fluctuation
Constant light → serious oil pressure loss
When the engine starts, current flows from the fuse to the oil pressure switch. Once oil pressure exceeds approximately 4.3 psi, the diaphragm pulls the contacts apart, changing the circuit state and signaling normal operation.
If oil pressure fails to build up, the warning light remains on — a clear sign the engine should be shut down immediately.
Besides warning lights, another method to monitor oil pressure is the mechanical oil pressure gauge.
Inside the gauge is a Bourdon tube:
Oil pressure travels through a copper tube
The Bourdon tube straightens as pressure increases
The tube is linked to a needle on the gauge
Needle movement displays oil pressure in real time
This system provides continuous pressure readings, which is why it’s still popular in performance vehicles and industrial engines.
As automotive technology advances, oil pressure sensors are no longer isolated components.
In modern vehicles:
Sensors feed data to ECUs (Electronic Control Units)
ECUs coordinate motors, pumps, and cooling systems
Many auxiliary systems now rely on BLDC motors for efficiency
For example:
Electric oil pumps driven by BLDC motors
Cooling fans with intelligent speed control
Hybrid and electric vehicle subsystems
This is where companies like SHINEMOTOR become relevant.
While oil pressure sensors protect the engine, high-efficiency motors ensure optimal system performance.
SHINEMOTOR focuses on advanced motor solutions commonly used in:
Automotive auxiliary systems
Electric pumps and cooling fans
Hybrid and electric vehicle platforms
By combining sensor feedback with BLDC motor technology, manufacturers can:
Improve energy efficiency
Extend component lifespan
Enable predictive maintenance
In modern vehicles, sensors and motors no longer work alone — they work as a system.
The oil pressure sensor may be small, but its role is massive.
It:
Protects engines from catastrophic failure
Provides real-time feedback to drivers and control systems
Integrates seamlessly with modern electronics and motor-driven subsystems
As vehicles continue to evolve toward smart, electrified, and sensor-driven platforms, the interaction between automotive sensors and efficient BLDC motor systems will only become more important.
Whether it’s a simple warning light or a fully digital dashboard, oil pressure sensors remain a cornerstone of automotive reliability — quietly doing their job every time you turn the key. ⚙️
