SHINEMOTOR Technical Vlog | BLDC Motor Selection Guide

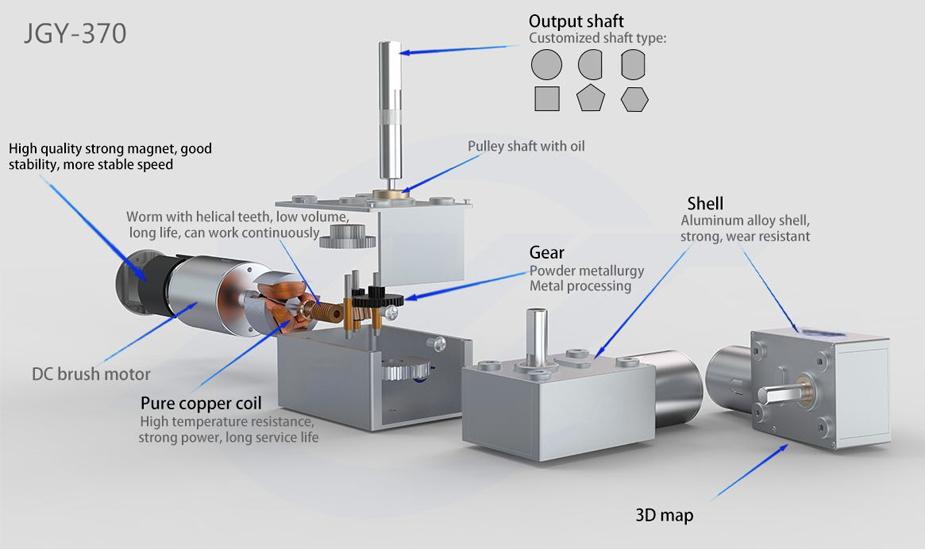

Understanding DC motor and gear motor performance curves may seem complex at first glance. The overlapping lines and data points can appear confusing, but these curves are actually one of the most powerful tools for evaluating motor performance. At SHINEMOTOR, we simplify this process so engineers and designers can confidently select the right DC or BLDC gear motor for their application.
This technical vlog explains how to read motor performance curves found in DC motor and BLDC motor datasheets, helping you understand operating limits, efficiency zones, and rated performance before building a prototype.
A typical DC motor or gear motor performance curve displays five key parameters:
Speed
Torque
Current
Output Power
Efficiency
Together, these curves show how a motor behaves across its full operating range. By comparing your application requirements to these curves, you can determine whether a specific DC or BLDC motor is suitable for your system.
Motor speed, measured in revolutions per minute (RPM), is represented by a downward-sloping straight line. This line illustrates the inverse relationship between speed and torque.
Maximum speed occurs at no load
Speed decreases linearly as torque increases
Speed reaches zero at stall torque
This torque–speed relationship is fundamental to all DC and BLDC motors. High speed means low torque, and high torque means low speed.
Efficiency represents the ratio of output power to input power and is expressed as a percentage. On performance curves, efficiency typically appears as a bell-shaped or parabolic curve.
Peak efficiency occurs at relatively low torque
Efficiency declines as the motor approaches stall
Operating near peak efficiency ensures optimal motor life
For best results, SHINEMOTOR recommends designing applications so the motor operates close to its maximum efficiency point.
Torque is the motor’s ability to overcome load and is usually measured in Nm, lb-in, or kg-cm. On most performance curves, torque is displayed on the horizontal (X) axis.
The intersection of the speed curve with the X-axis represents stall torque, the maximum torque the motor can produce at zero speed. Continuous operation near stall torque must be avoided, as it leads to excessive heat and premature failure.
Current is shown as a rising straight line and reflects the direct relationship between torque and current consumption.
Low torque → low current
High torque → high current
Monitoring current draw is critical, especially for battery-powered and BLDC motor systems where power efficiency and thermal limits are important.
Output power, measured in watts, represents how much mechanical work the motor can deliver. Power follows a parabolic curve and reaches its peak at approximately 50% of stall torque.
High speed + low torque = low power
Low speed + high torque = low power
Maximum power occurs in between
This is a key factor when selecting motors for automation and robotics.

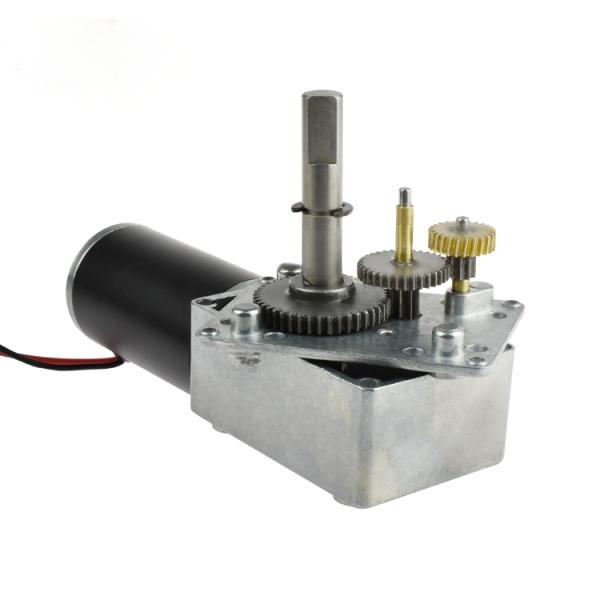

A gear motor performance curve allows engineers to evaluate motor behavior before physical testing. Below is an example of typical rated values derived from a DC gear motor curve:
| Parameter | Value | Unit |
|---|---|---|
| No-load speed | 58 | RPM |
| Rated speed | 48 | RPM |
| Rated torque | 2.5 | Nm |
| Rated current | 2.5 | A |
| Rated power | 12.8 | W |
| Max efficiency | 43 | % |
| Max power | 22.7 | W |
| Stall torque | 15 | Nm |
| Stall current | 12 | A |
These values help engineers match theoretical performance with real application demands.
To identify rated operating conditions, first locate the peak efficiency point on the efficiency curve. From this point, draw a vertical line across the chart.
Where this line intersects other curves defines:
Rated torque
Rated speed
Rated current
Rated power
In this example, the rated performance is 2.5 Nm / 48 RPM / 43% / 2.5 A / 12.8 W.
Operating a DC or BLDC gear motor near rated performance ensures long service life and stable output.
Motor usage is divided into three operating zones based on torque load:
Highest efficiency
Minimal heat generation
Safest operating range
Suitable for short bursts
Requires cooling or reduced duty cycle
Common in automation and robotics
Rapid overheating
High risk of winding or gearbox damage
Strongly discouraged
Understanding these zones is critical when designing BLDC motor systems for long-term reliability.
