Product Description

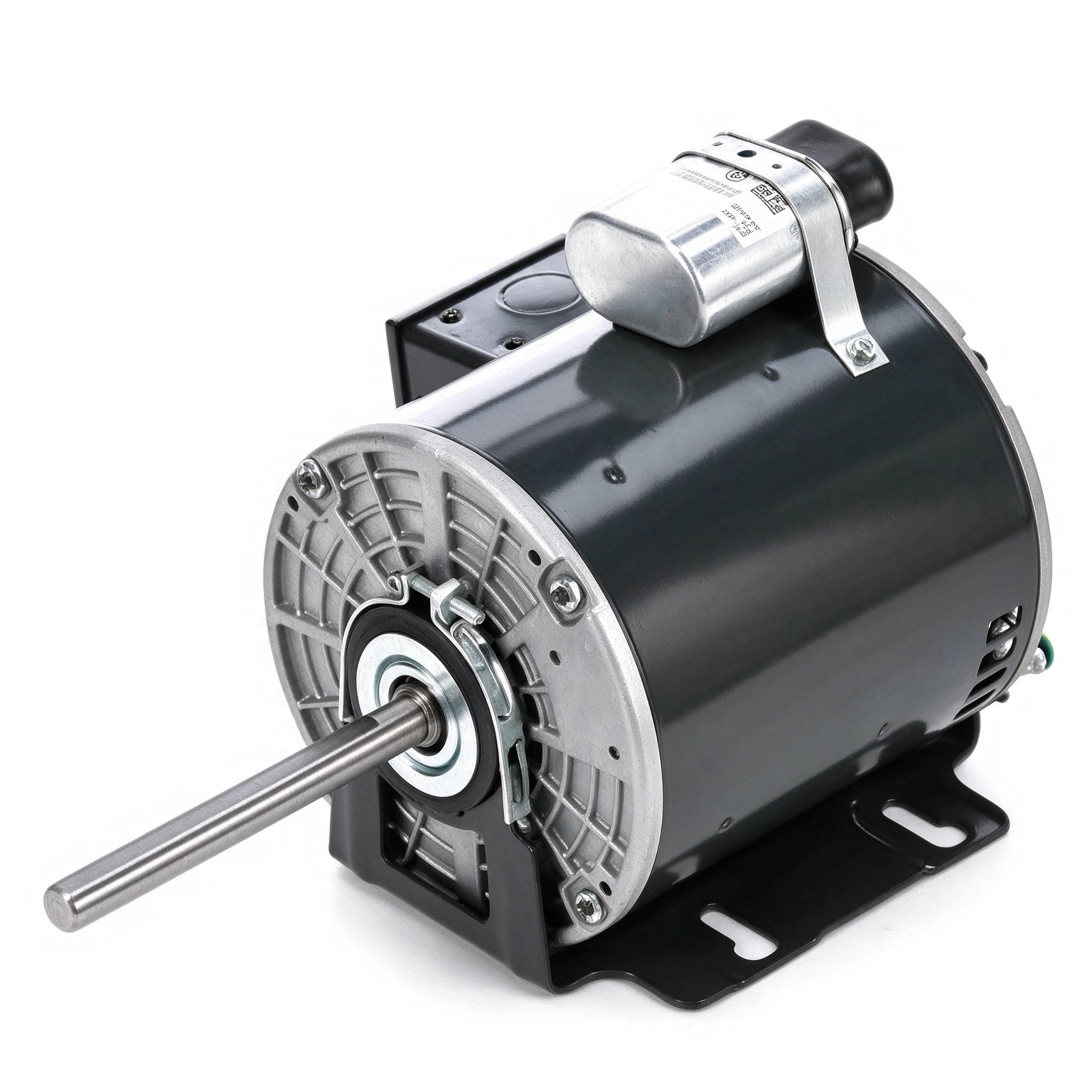

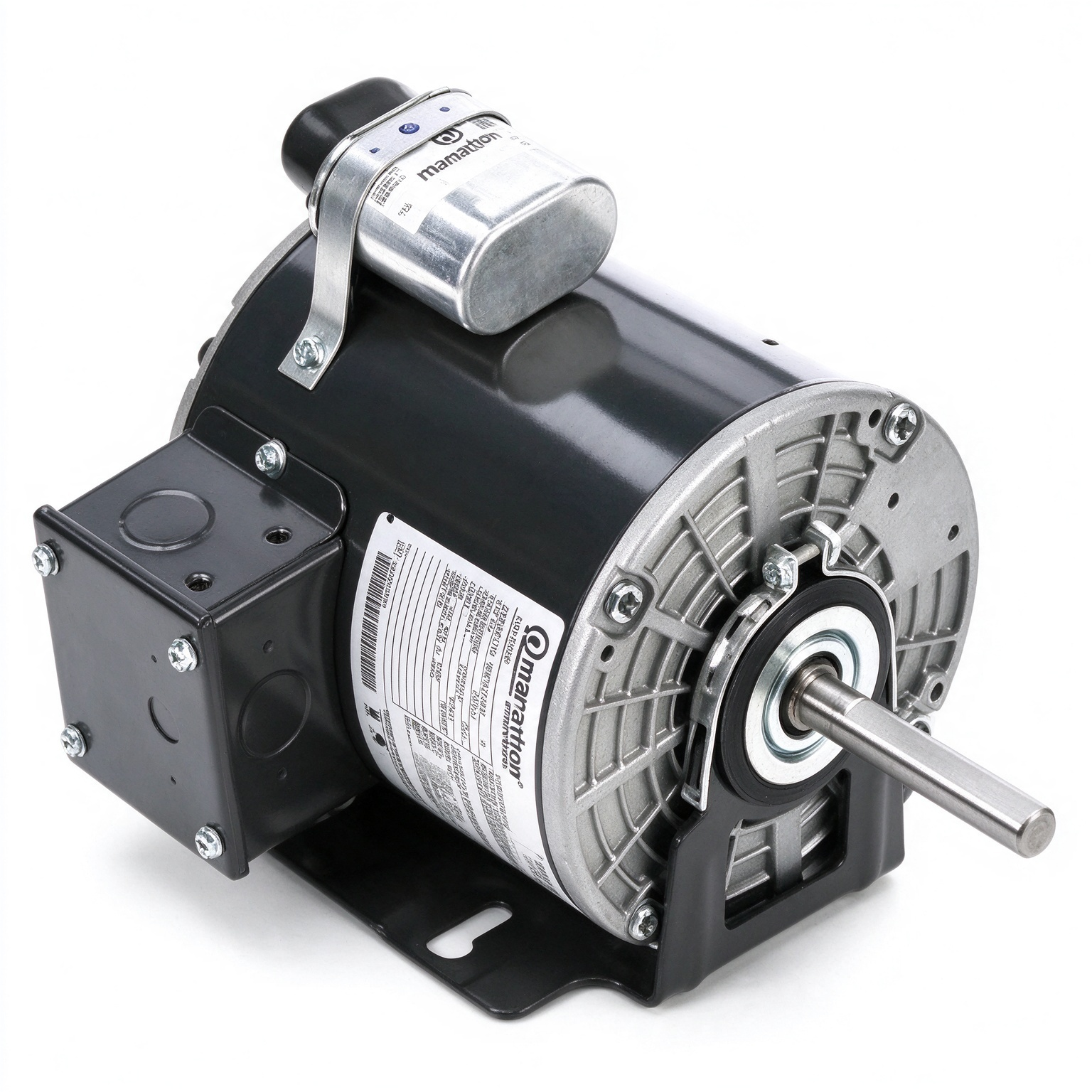

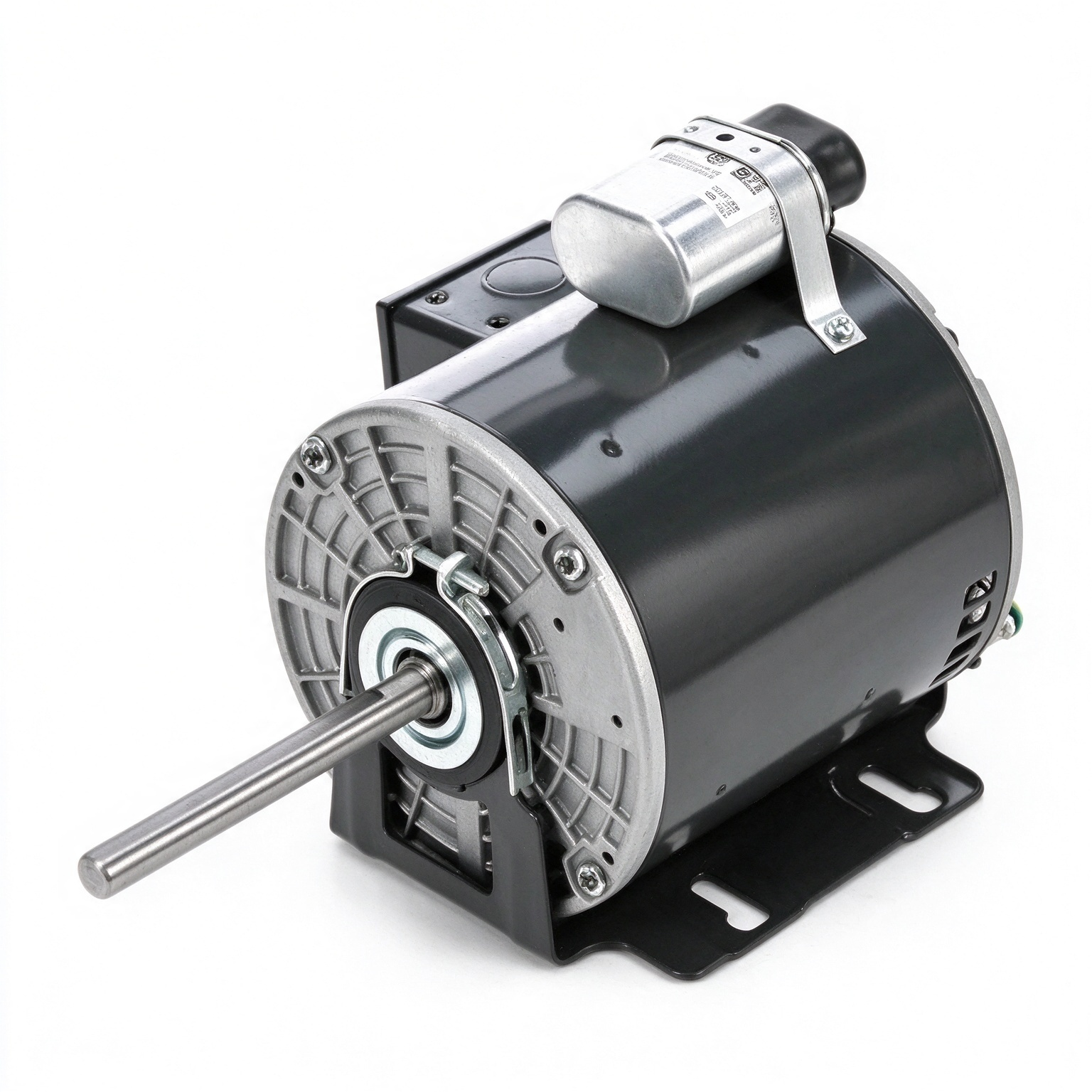

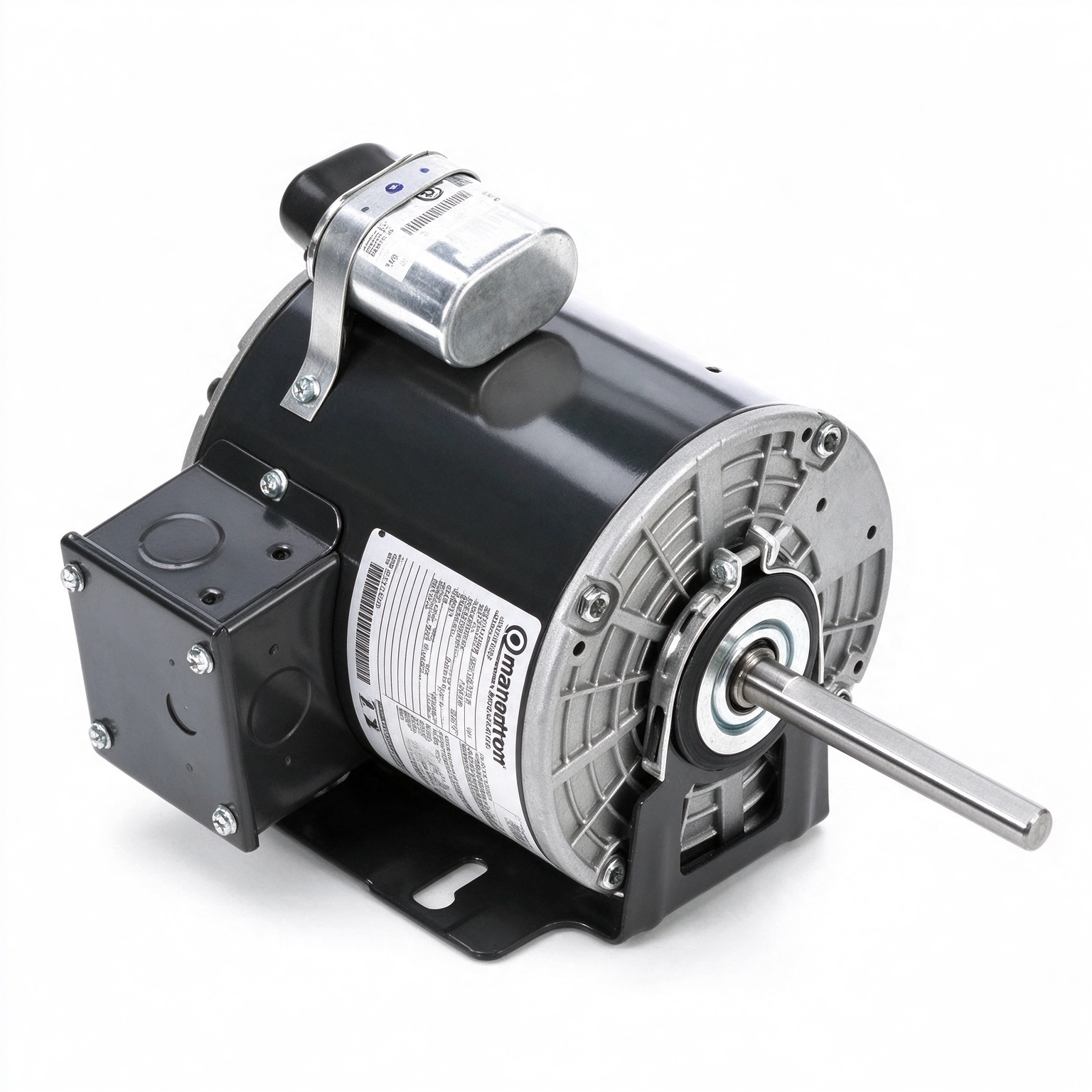

X431 is a single-phase condenser fan motor designed for light commercial HVAC condenser fan and air moving applications. With a 1/2HP output and 1075RPM nameplate speed, it provides consistent fan speed for air handling and condensing unit service.
This model operates on 208-230/460V power systems and features an X431 frame with no-base mounting. Its compact design allows flexible installation in condenser fan compartments where a direct-drive fan motor is required.
Suitable for light commercial HVAC equipment, the X431 motor is built for reliable continuous operation. Each unit is factory tested for speed, winding integrity and general performance before shipment, making it a practical replacement motor for condenser fan service.
Attribute |
Value |
Attribute |
Value |
|---|---|---|---|
SKU |
X431 |
Brand |
Other |
Horsepower |
1/2HP |
RPM |
1075 |
Phase |
Single-Phase |
Voltage |
208-230/460V |
Frame |
X431 |
Mounting Type |
None |
Application |
Condenser Fan |
Origin |
China |
Attribute |
Value |
Attribute |
Value |
|---|---|---|---|
Selling Units |
Multiple of 10 items |
Package size per batch |
42×23×25 cm |
Gross weight per batch |
17.5 kg |
