X501
SHINE
202211424
Product Description

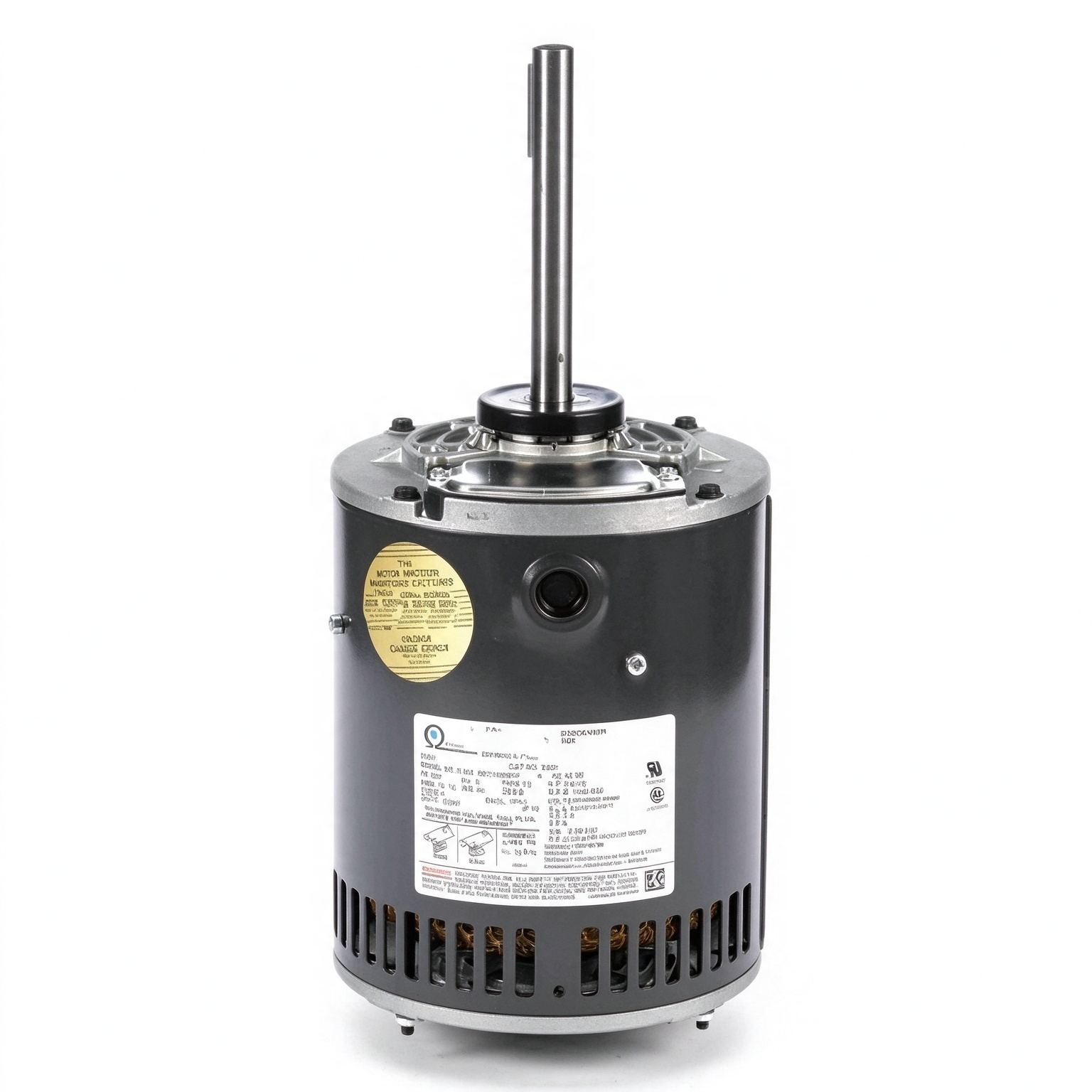

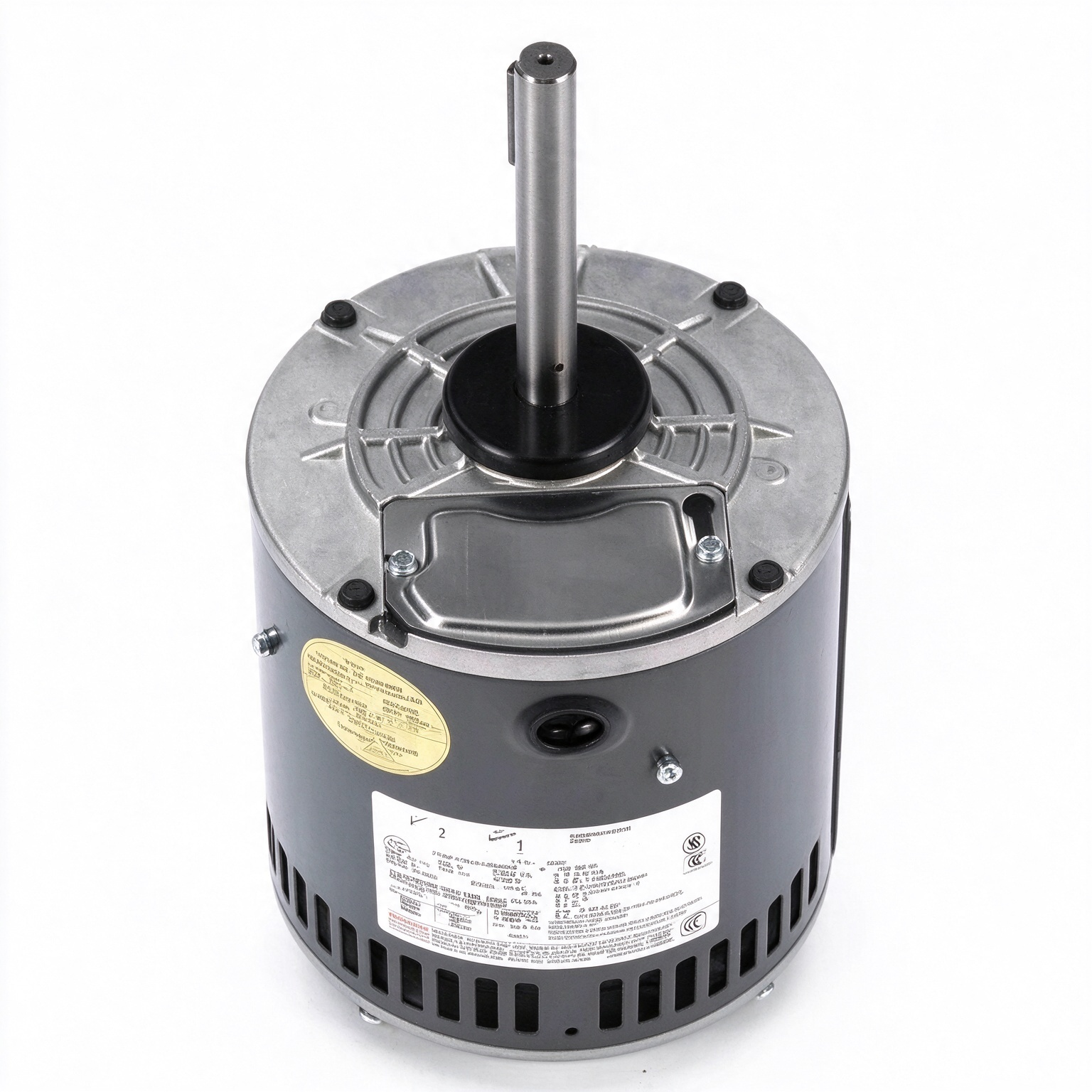

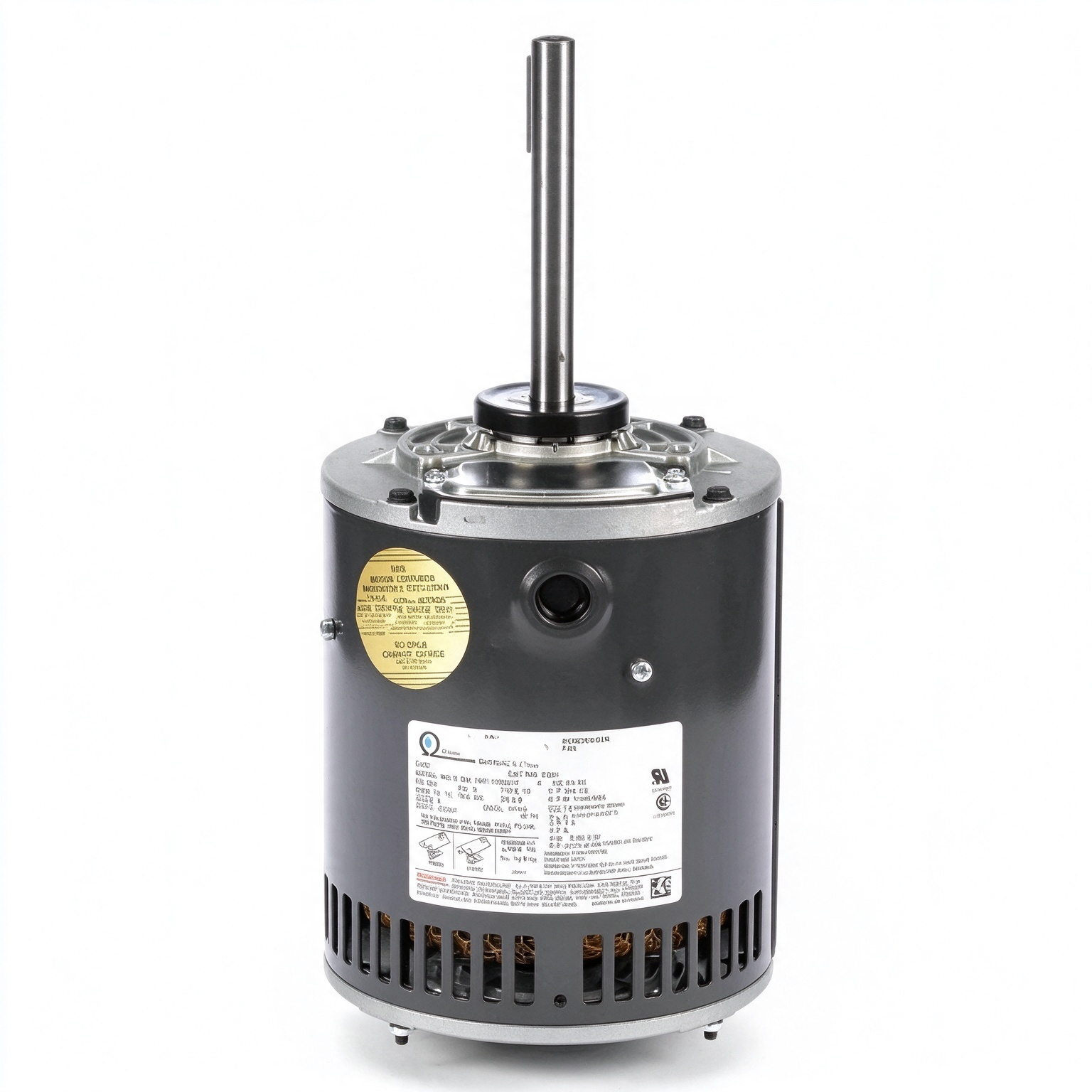

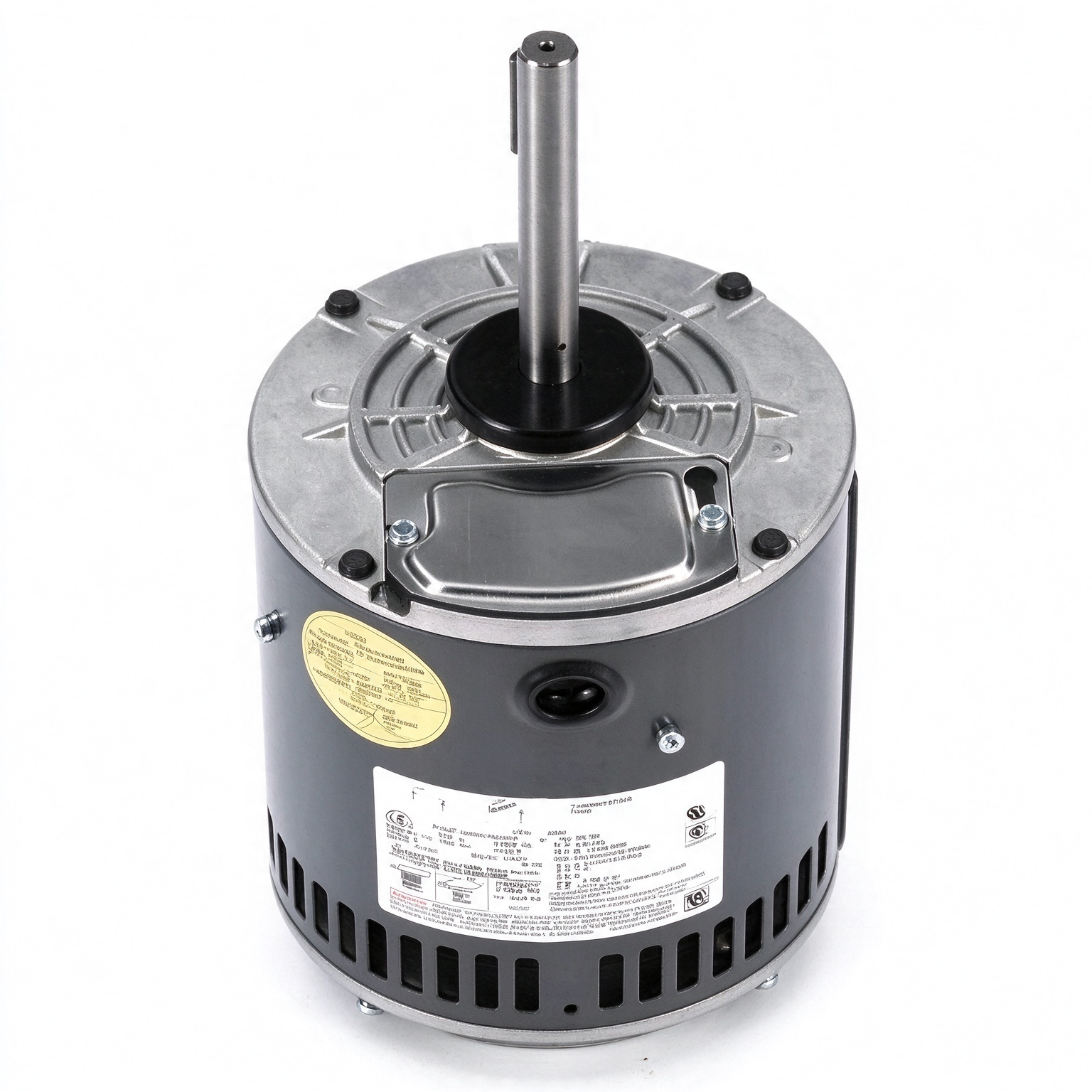

The X501 condenser fan motor is engineered as a reliable three-phase power solution for commercial HVAC cooling systems. Rated at 3/4 horsepower with a running speed of 1075 RPM, this motor supports dual voltage input of 208-230/460V, offering great adaptability for different industrial and light commercial power environments. It adopts no-base mounting design, allowing flexible installation on various condenser fan assemblies. High-quality internal windings reduce heat generation during continuous operation, improving stability and extending working lifespan. Every finished motor passes standardized factory inspection, including rotation speed detection, insulation resistance test and running noise check, to guarantee consistent performance before delivery. This motor is widely applied in air conditioning condensing units and other air-moving machinery. It works steadily under long-hour continuous running conditions, serving as an economical and durable OEM replacement part for HVAC fan systems. It meets common industry requirements for commercial cooling equipment maintenance and retrofit projects.
Item | Value | Item | Value |
|---|---|---|---|
Model Number | X501 | AC Voltage | 208-230/460V |
Rated Power | 3/4hp | Rated Speed | 1075RPM |
Phase | Three-Phase | Motor Mounting Type | None |
Brand Name | other | Place of Origin | China |
Item | Value | Item | Value |
|---|---|---|---|
Selling Units | Multiple of 10 items | Package size per batch | 42X23X26 cm |
Gross weight per batch | 17.5 kg | - |
