90W External Rotor Fan - 1340m³/h Airflow FFU Fresh Air System Use

Product Type: External Rotor Fan for FFU & Ventilation Systems
Core Specs: 230VAC voltage, 50/60Hz frequency, 1340m³/h airflow, 3020RPM speed
Electrical Params: 1.1A rated current, 90W output power, 135W input power
Performance: High static pressure, strong air output, low vibration (precision-balanced)
Protection & Ratings: IP20-IP44 protection, Class B insulation, -25~60℃ operating temp
Control Modes: 0-10V analog, PWM, customizable serial communication for centralized control
Installation: Ball bearings, horizontal/vertical mounting, customer-specified rotation direction

Model:
90W External Rotor Fan
Brand:
SHINE
Code:
20221144


Availability:



Inquiry

Product Description

Overview of External Rotor Fan for FFU Systems

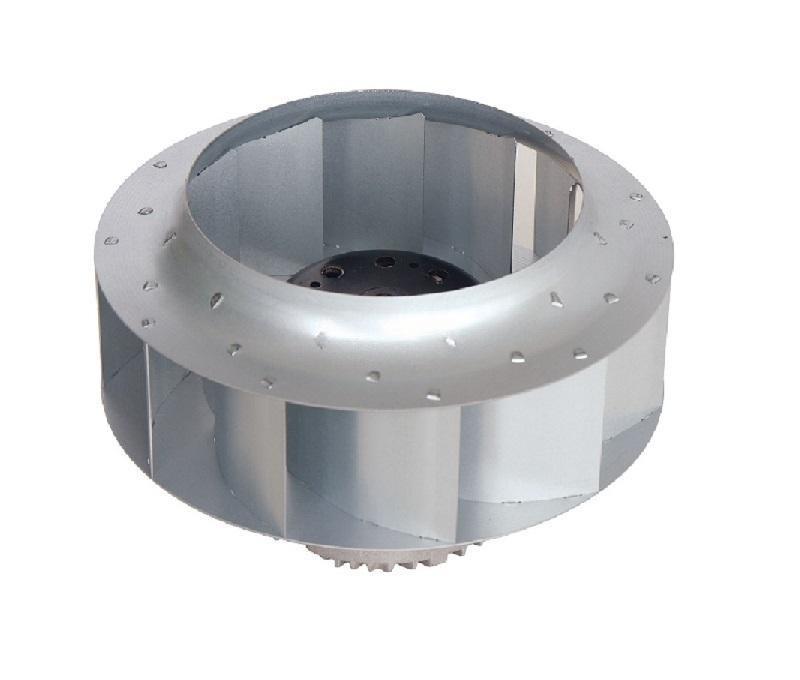

This high-performance external rotor fan (FYH225/063-90W-1) is engineered for FFU fresh air systems and industrial ventilation. With 1340m³/h airflow and strong static pressure resistance, it delivers efficient air circulation, while the compact design fits slim and space-constrained equipment, outperforming traditional fans in installation flexibility.

Key Features & Reliability

Adopting a Hall-free scheme, the fan integrates power and drive modules in the motor tail for easy operation—only 230VAC input and 0-10V speed control signal are required. Its (forward/backward curved) impeller is riveted to the rotor and precision-balanced for minimal vibration. Equipped with phase current, short circuit, and overheat protections, plus IP20-IP44 rating and Class B insulation, it operates reliably in -25~60℃ environments.

Model Parameter Table

Fan Model	Motor Model	Rated Voltage (VAC)	Frequency (Hz)	Airflow (m³/h)	Rated Speed (r/min)	Rated Current (A)	Input Power (W)	Operating Temp (℃)	Weight (kg)	IP Rating
FYH225/063-90W-1	MWS90-8E-D	230	50/60	1340	3020	1.1	135	-25~60	2.5	IP20-IP44

Application

FFU Fresh Air Systems

Perfect for clean rooms, laboratories, and data centers. Its high static pressure and efficient airflow ensure air purification and uniform ventilation in controlled environments.

Industrial Ventilation

Suitable for factory workshops, air handling units, and exhaust systems. Compact structure and wide temperature adaptability (-25~60℃) fit harsh industrial settings.

Commercial Air Conditioning

Ideal for shopping malls, office buildings, and hotel ventilation. Flexible speed control and low vibration meet commercial comfort and energy-saving needs.

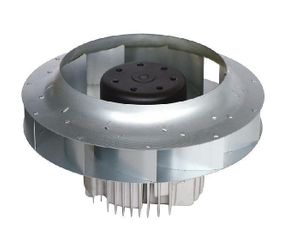

160W External Rotor Fan - 2030m³/h Airflow FFU Fresh Air System

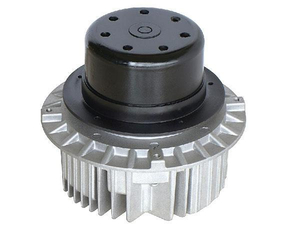

100-180W External Rotor Brushless Motor for Fresh Air System 180° Sine Wave Drive IP44 Protection

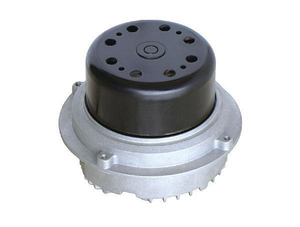

External Rotor Brushless Motor 30-100W for Fresh Air System IP44 Protection
