160W External Rotor Fan - 2030m³/h Airflow FFU Fresh Air System

Product Type: External Rotor Fan for FFU & Industrial Ventilation
Core Specs: 230VAC voltage, 50/60Hz frequency, 2030m³/h airflow, 2660RPM speed
Electrical Params: 1.1A rated current, 160W input power, Class B insulation
Performance: 62dB noise level, high static pressure, precision-balanced low vibration
Protection & Ratings: IP20-IP44 protection, -25~60℃ operating temp, -30~70℃ storage temp
Control Modes: 0-10V analog, PWM, customizable serial communication for centralized control
Installation: Ball bearings, horizontal/vertical mounting, customer-specified rotation direction

Model:
160W External Rotor Fan
Brand:
SHINE
Code:
20221145


Availability:



Inquiry

Product Description

Overview of High-Airflow External Rotor Fan

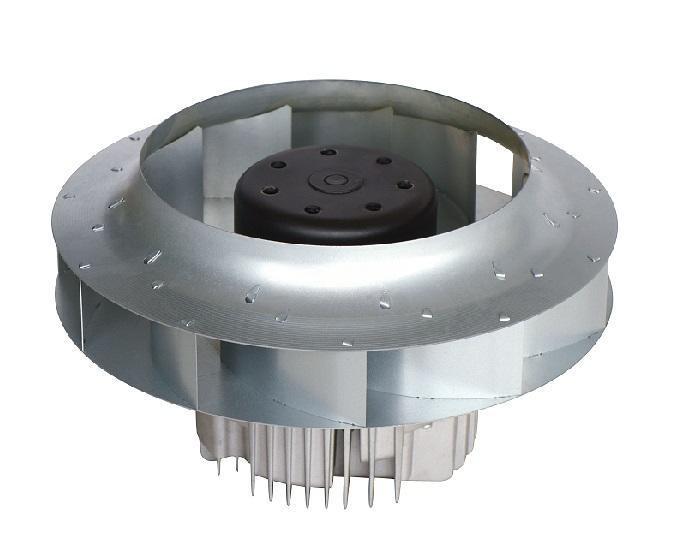

The FYH280/040-160W-2 external rotor fan is engineered for high-demand ventilation scenarios like FFU fresh air systems. With 2030m³/h large airflow and strong anti-static pressure capability, it ensures efficient air circulation, while the compact integrated design fits slim and space-constrained equipment, making it a versatile choice for commercial and industrial use.

Key Features & Reliability

Adopting a Hall-free scheme, the fan integrates power and drive modules in the motor tail for plug-and-play operation—only 230VAC input and 0-10V speed control are needed. Its forward/backward curved impeller is riveted to the rotor and precision-balanced for minimal vibration. Equipped with phase current, short circuit, and overheat protections, plus IP20-IP44 rating, it operates reliably in -25~60℃ environments with low 62dB noise.

Model Parameter Table

Fan Model	Motor Model	Rated Voltage (VAC)	Frequency (Hz)	Airflow (m³/h)	Rated Speed (r/min)	Rated Current (A)	Input Power (W)	Noise (dB(A))	Operating Temp (℃)	Weight (kg)	IP Rating
FYH280/040-160W-2	MWS160-8E-D	230	50/60	2030	2660	1.1	160	62	-25~60	4.2	IP20-IP44

Application

FFU Fresh Air Systems

Ideal for clean rooms, data centers, and laboratories. Large 2030m³/h airflow and high static pressure ensure uniform air distribution and purification in controlled environments.

Industrial Ventilation

Suitable for factory workshops, air handling units, and exhaust systems. Wide temperature adaptability (-25~60℃) and robust protections withstand harsh industrial conditions.

Commercial Buildings

Perfect for shopping malls, office complexes, and hotel ventilation. Low 62dB noise and flexible speed control balance comfort and energy efficiency in high-traffic spaces.
