YK Series Manual Reset Pressure Controller - 1-5.5MPa, Double-Safety Disc Sensor for HVAC Refrigeration & Overpressure Protection

YK Series Manual Reset Pressure Controller - 1-5.5MPa, Double-Safety Disc Sensor for HVAC Refrigeration & Overpressure Protection

Working pressure: 145~800PSI (1～5.5MPa); Burst pressure: 5000PSI; Ambient temperature: -30℃～+80℃; System medium temperature: -50℃～+120℃; Electrical specs: 125VA (24Vac), 375VA (120/240Vac); Dielectric strength: AC700V/S (contacts), AC2000V/S (terminals-housing); Installation: panel-mounted (with lugs)/inline; Reset type: manual.

Model:
YK series Pressure Controller - 1-5.5MPa
Brand:
SHINE
Code:
20221149


Availability:



Inquiry

Product Description

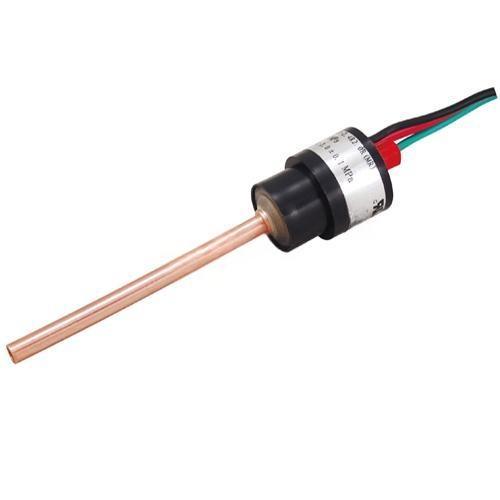

YK Series Manual Reset Pressure Controller

A specialized overpressure protection solution engineered for scenarios requiring high safety standards, the YK Series manual reset pressure controller combines robust construction and intelligent design to safeguard critical systems from pressure-related damage. It is tailored for applications where accidental auto-reset could lead to equipment failure or safety hazards.

Core Features

Sealed double-safety stainless steel disc sensor: Triggers rapid switch disconnection under overpressure and isolates system pressure, preventing accidental restart and ensuring maximum safety.

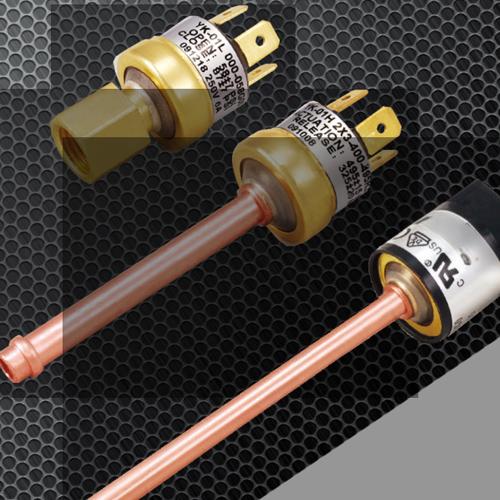

Flexible installation options: British pipe thread quick connectors or copper tube (capillary) welding for ，plus panel-mounted (built-in lugs) or inline (no extra fixation) mounting styles to fit diverse setups.
Independent auto-disconnect & manual reset structure: Enhances protection reliability—switch stays off after overpressure until manual button activation, avoiding unintended system restart.

Safety Withstand Pressure Table

Maximum Working Pressure	Safety Withstand Pressure
145PSI (1MPa)~400PSI (2.75MPa)	600PSI (4.1MPa)
>400PSI (2.75MPa)	800PSI (5.5MPa)

Working Principle

When system pressure exceeds the rated safety value, the internal pressure-sensing disc acts instantly. It pushes the safety disc to a locked position via a push rod, driving the switch to disconnect. As pressure drops, the sensing disc resets automatically, but the safety disc remains locked—keeping the switch off. The system resumes operation only when the external button is pressed to unlock the safety disc and re-engage the switch.

Application

Key Application Scenarios

Air Conditioning & Refrigeration Systems

Ideal for household, commercial, and industrial air conditioning units, refrigeration equipment, and cooling systems with strict overpressure protection requirements. Installs directly on pipelines or equipment panels, preventing compressor burnout, pipeline rupture, or refrigerant leakage caused by abnormal pressure spikes.

Industrial Equipment & Tool Pressure Systems

Suitable for various industrial machinery, hydraulic/pneumatic tools, and pressure vessels that demand reliable overpressure protection. Compatible with ambient temperatures of -30℃～+80℃ and medium temperatures of -50℃～+120℃, it serves as a critical safety component in manufacturing lines, construction machinery, and precision equipment where accidental restart after overpressure could lead to severe damage or safety risks.
