Selecting the best pressure switch for your hydraulic, pneumatic, or industrial system is crucial for safety, efficiency, and reliability. Pressure switches play a vital role in monitoring and controlling fluid pressure in applications like pumps, compressors, HVAC systems, boilers, and more. This pressure switch selection guide will help you understand key factors to consider when choosing a mechanical or electronic pressure switch.

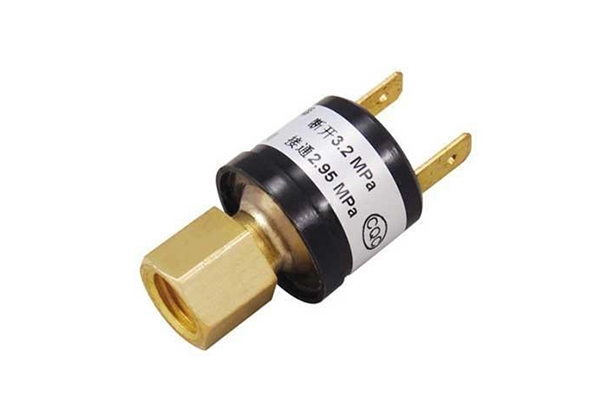

A pressure switch is a device that detects changes in fluid pressure (air, water, oil, or gas) and activates or deactivates electrical contacts when a predetermined pressure level—known as the setpoint—is reached. Common types include mechanical pressure switches (using diaphragms, pistons, or bourdon tubes) and electronic pressure switches (with digital displays and programmable outputs).
Pressure switches are essential for:
Preventing overpressure or underpressure conditions
Automating pump and compressor operation
Ensuring safety in industrial processes
Monitoring systems in HVAC, water treatment, and mobile equipment
Popular applications include air compressors, water pumps, hydraulic systems, and OEM machinery.
Choosing the right pressure switch involves evaluating several specifications to match your system's requirements. Here are the most important considerations:
The pressure range defines the minimum and maximum pressures the switch can handle, typically in psi, bar, kPa, or other units. Select a switch that covers your system's normal operating pressure, plus any spikes or surges.
For low-pressure applications (e.g., pneumatic systems), choose ranges like 3-150 psi.
For high-pressure hydraulic systems, opt for ranges up to 5000-9000 psi.
Always factor in proof pressure (maximum overpressure the switch can withstand without damage).
Tip: Set your setpoint in the middle of the adjustable range for optimal accuracy and longevity in mechanical switches.
The setpoint is the pressure at which the switch triggers. Options include:
Fixed setpoint: Pre-calibrated for consistency (ideal for OEM applications).
Adjustable setpoint: Field-tunable for flexibility (common in variable systems).
Adjustable models offer customization but may need periodic calibration.
The differential is the gap between the activation (setpoint) and reset points.
A small differential provides quick response (e.g., precise control).
A larger differential prevents rapid cycling, improving stability and switch life.
Choose based on whether your application needs fast response or reduced wear.

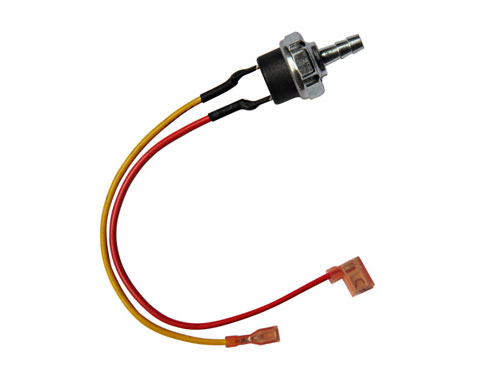

Electrical contacts determine how the switch integrates with your circuit:
Normally Open (NO): Closes on rising pressure.
Normally Closed (NC): Opens on rising pressure.
SPDT (Single Pole Double Throw): Switches between two circuits.
Some advanced models offer multiple contacts or solid-state outputs.
The enclosure protects against dust, moisture, vibration, and harsh conditions.
Look for IP ratings (e.g., IP65/IP67 for water resistance) or NEMA classifications.
Explosion-proof options are required for hazardous areas.
Wetted parts (in contact with the fluid) must resist corrosion and wear. Common materials:
Brass or stainless steel for water and oil
Plastic or specialized alloys for corrosive fluids
Ensure compatibility with your media (air, water, hydraulic oil, chemicals) and temperature range (-40°C to 120°C typical).
Additional factors to consider:
Electrical rating (current/voltage)

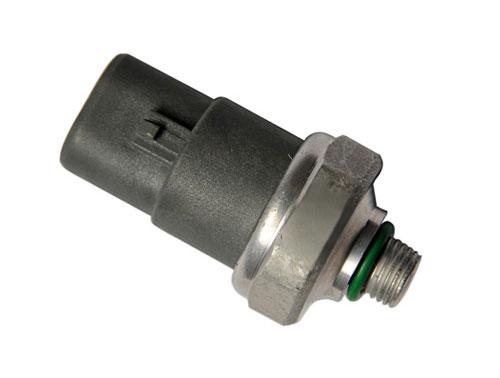

Connection type (threads, connectors)
Media type (gas, liquid, vacuum, differential)
Certifications (e.g., NSF for potable water)
Explore reliable SHINE pressure switches designed for durability and performance:
SPA/SPF Series: Snap-action low-pressure switch ideal for pneumatic and water applications.
SMA/SMF Series: High-pressure switch with excellent accuracy for hydraulic systems.
EPS Series: Electronic pressure switch with digital features for advanced monitoring.
SKBA Series: Compact OEM pressure switch for mobile and harsh environments.
View all SHINE pressure switches for vacuum, differential, and positive pressure needs.
SHINE is a trusted brand offering affordable, high-quality pressure switches with customizable options like threads, connectors, and setpoints. Whether you need a low-pressure pneumatic switch or a robust high-pressure hydraulic model, SHINE provides solutions for industrial, mobile, and OEM applications.
If you're unsure about the best pressure switch for your project—such as an air compressor pressure switch, water pump pressure switch, or industrial hydraulic pressure switch—our experts can help.
Contact us today for personalized advice or to request a free sample!
This guide aims to simplify pressure switch selection. For more details on types, working principles, or specific models, explore our resources. Make the right choice for safe and efficient system operation.
