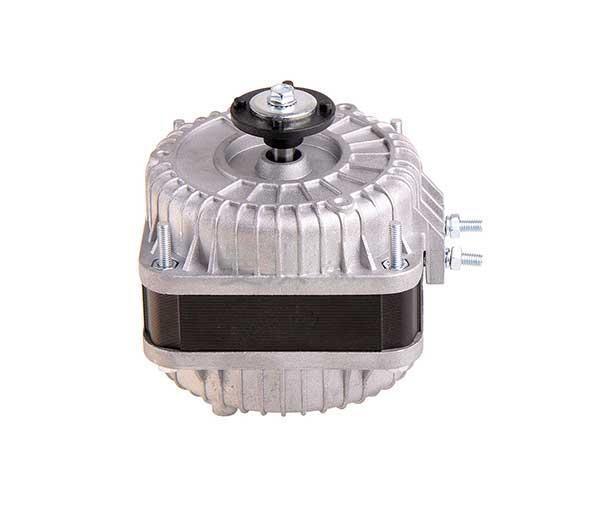

Hood Pole Motor - High-Performance Solution for Freezer Fans

The Hood Pole Motor is designed to excel in the demanding conditions of freezers, withstanding temperatures as low as -30°C. Its robust construction and IP20/IP42 protection ensure resistance to dust and moisture, critical for maintaining performance in refrigeration systems.

Equipped with impedance or thermal winding protection, the motor prevents damage from overheating, extending its lifespan. The oil-impregnated bearings (with optional ball bearings) ensure smooth, quiet operation, minimizing noise in retail or storage environments. With output power ranging from 5W to 25W, it provides the perfect balance of power and energy efficiency for freezer fans.

Available in multiple models (YZF5 to YZF25), the motor offers flexibility to match different freezer sizes and cooling requirements. The compact design fits seamlessly into tight freezer enclosures, while the Class B insulation enhances safety and reliability. Whether for commercial display freezers or industrial cold storage, this motor is built to deliver consistent performance.

Model	Voltage (V)	Frequency (Hz)	Current (A)	Output (W)	Input (W)	Speed (rpm)	Length (mm)
YZF5-A	115	50/60	0.40	5	30	1300/1550	81.5
YZF5-B	220-240	50/60	0.20	5	30	1300/1550	81.5
YZF7-A	115	50/60	0.46	7	31	1300/1550	87.5
YZF7-B	220-240	50/60	0.23	7	31	1300/1550	87.5
YZF10-A	115	50/60	0.50	10	36	1300/1550	87.5
YZF10-B	220-240	50/60	0.25	10	36	1300/1550	87.5
YZF16-A	115	50/60	0.90	16	60	1300/1550	93.5
YZF16-B	220-240	50/60	0.45	16	60	1300/1550	93.5
YZF18-A	115	50/60	1.0	18	70	1300/1550	98.5
YZF18-B	220-240	50/60	0.50	18	70	1300/1550	98.5
YZF25-A	115	50/60	1.4	25	90	1300/1550	108.5
YZF25-B	220-240	50/60	0.70	25	90	1300/1550	108.5

The Hood Pole Motor is widely used in commercial freezers, such as supermarket display cases, convenience store freezers, and restaurant walk-in freezers. Its ability to operate in extreme low temperatures (-30°C) makes it suitable for deep freezers storing frozen foods, ice cream, and other perishables.

In retail environments, the motor’s quiet operation ensures a pleasant shopping experience, while its energy efficiency helps reduce electricity costs. For industrial facilities, such as cold storage warehouses, the motor’s durability and IP protection ensure reliable performance in dusty, humid conditions. Additionally, it can be used in medical refrigerators and laboratory freezers, where temperature stability is critical. With its versatile design and robust performance, the Hood Pole Motor is the perfect choice for all freezer fan applications.

The above are representative specifications for reference only. Customized designs are available per user requirements. For any changes, please contact our technical department for the latest information.
