PD512807
SHINE
202211497
Product Description

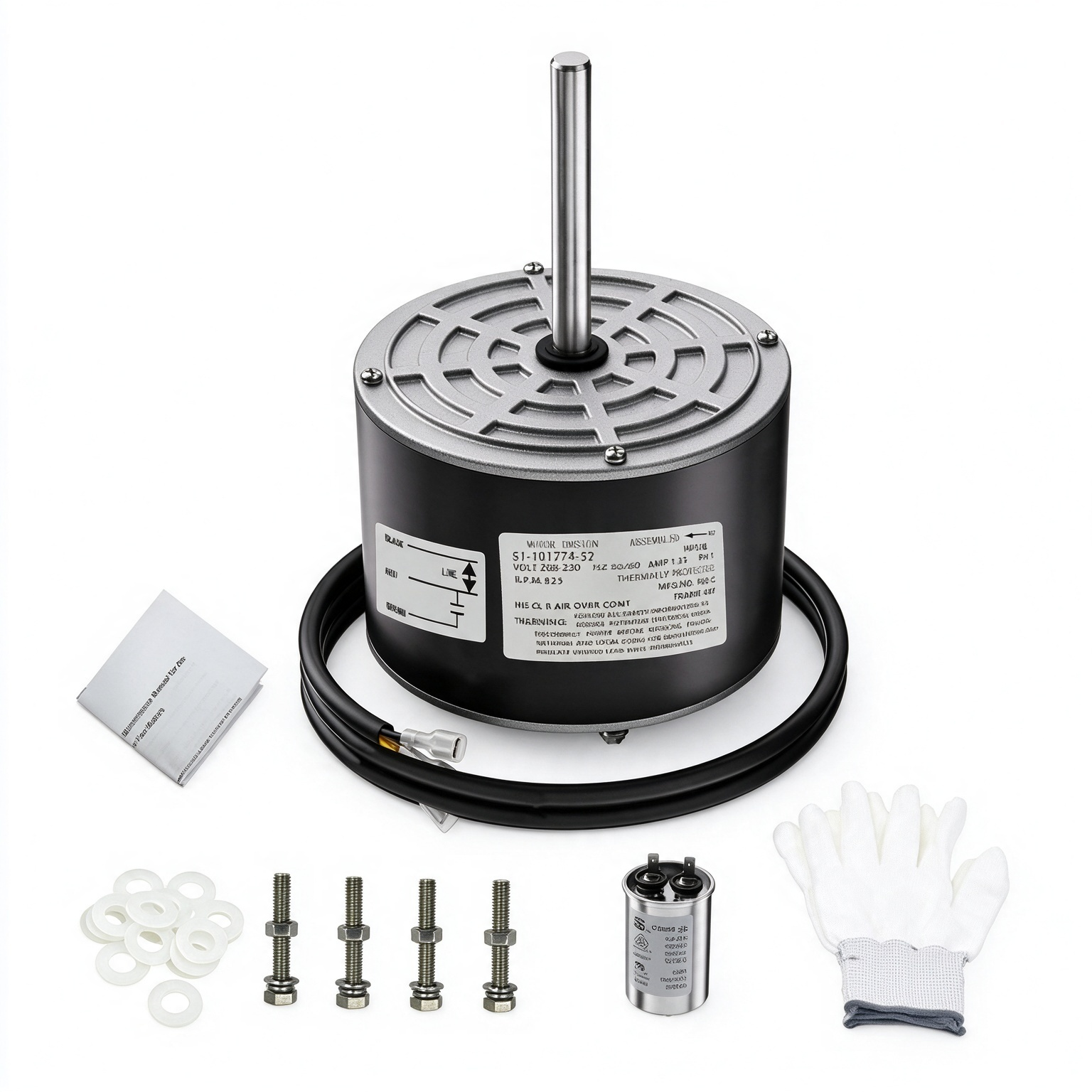

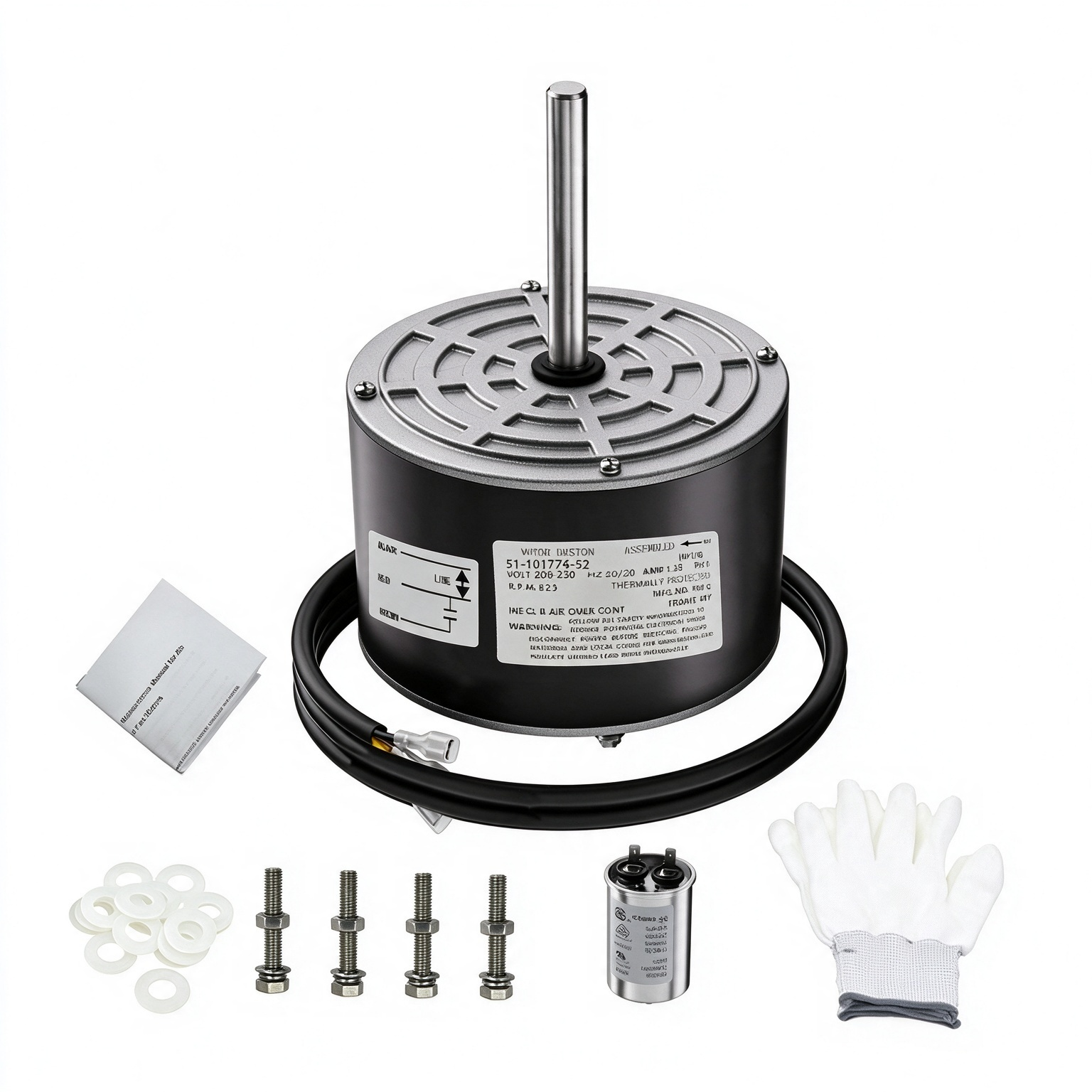

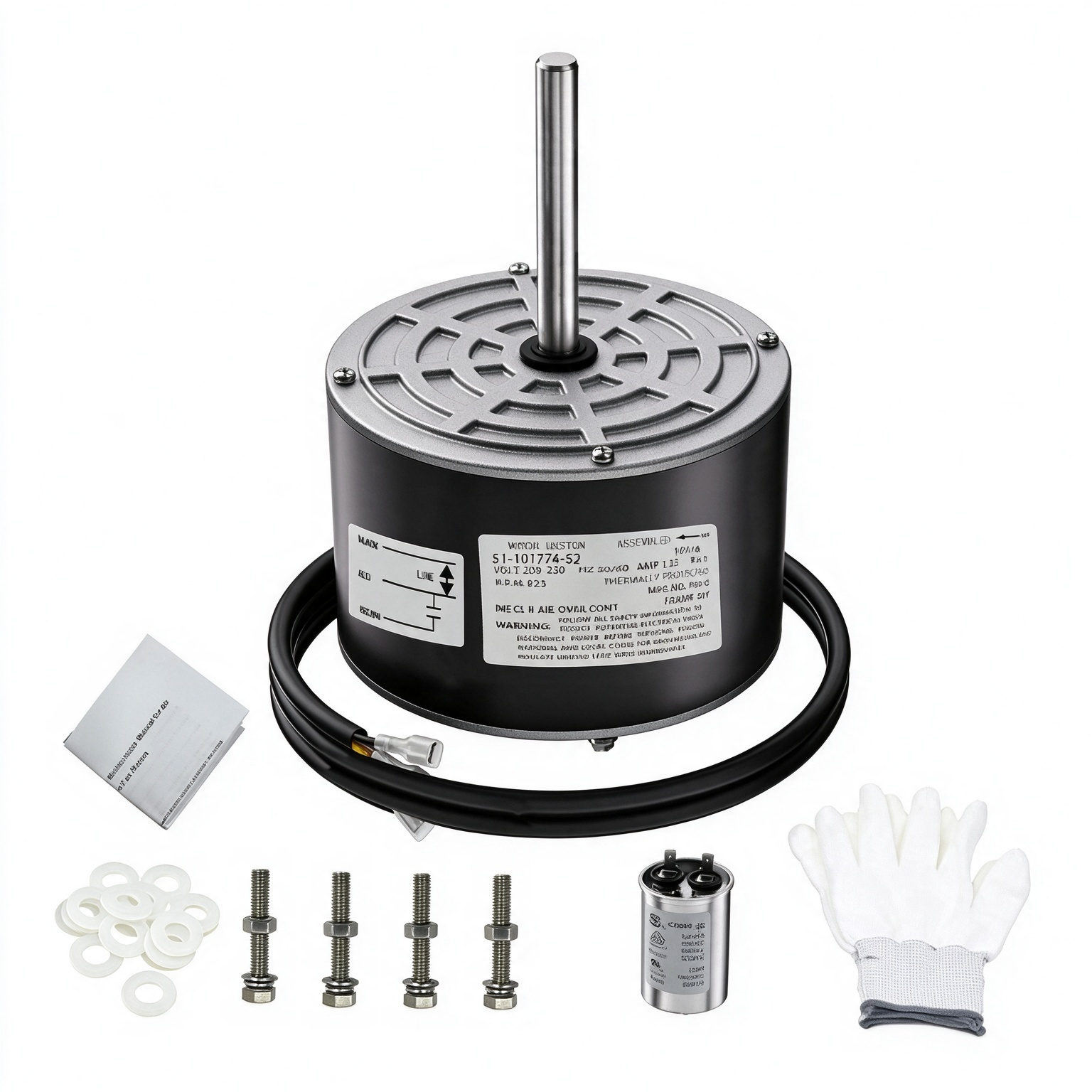

PD512807, part number 51-101774-52, is a compatible replacement condenser fan motor for US Motors, widely used in HVAC outdoor condensing units. It runs on single-phase 208-230V power, with rated power of 1/6HP and rotation speed of 825RPM to drive fan blades for heat exchange.
This replacement motor uses high purity copper windings and sturdy metal shell. Thermal protection is equipped to guard against overheating damage. It can adapt to high-temperature and dusty outdoor working conditions and run continuously smoothly.
Simple structure allows quick installation and wiring. Each motor undergoes strict quality inspection before delivery. It is an economical spare part for air conditioner maintenance technicians to replace original US Motors units.
Attribute |
Value |
Attribute |
Value |
|---|---|---|---|
Phase |
Single-Phase |
AC Voltage |
208-230V |
Rated Power |
1/6HP |
Rated Speed |
825RPM |
Motor Mounting Type |
None |
Model Number |
PD512807(51-101774-52) |
Brand Name |
other |
Place of Origin |
China |
Attribute |
Value |
Attribute |
Value |
|---|---|---|---|
Selling Units |
Multiple of 10 items |
Package size per batch |
42×23×26 cm |
Gross weight per batch |
17.5 kg |
