51-101774-22
SHINE
202211497
Product Description

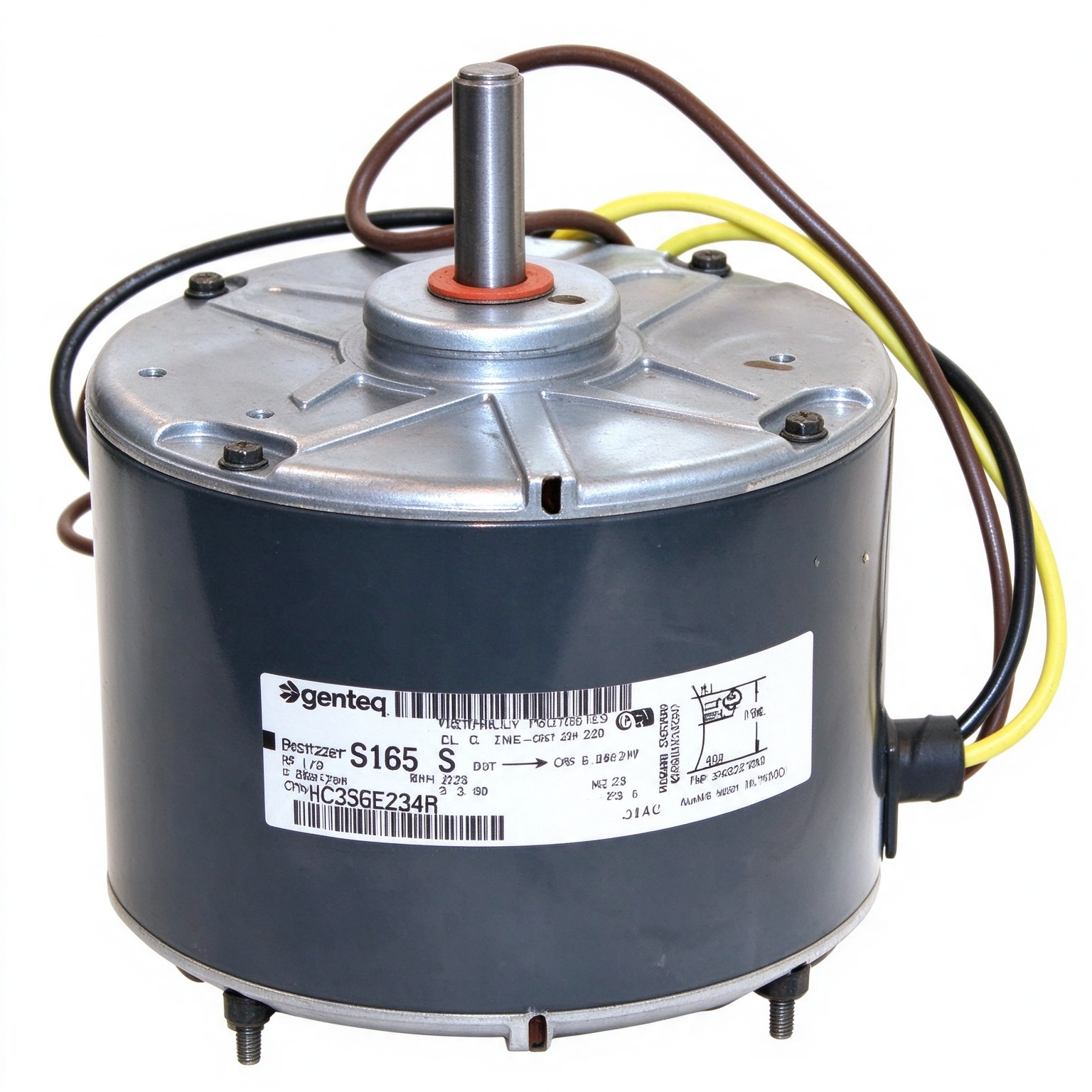

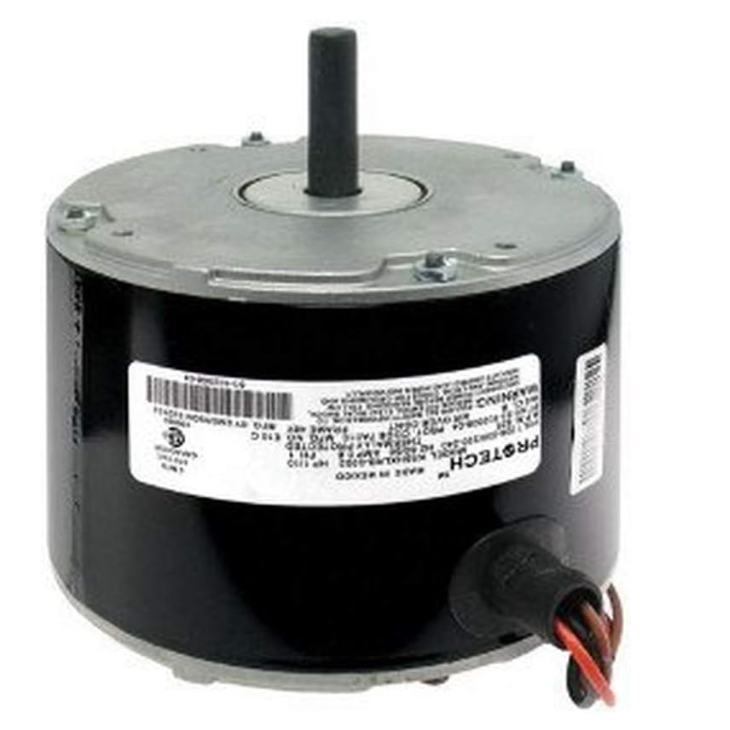

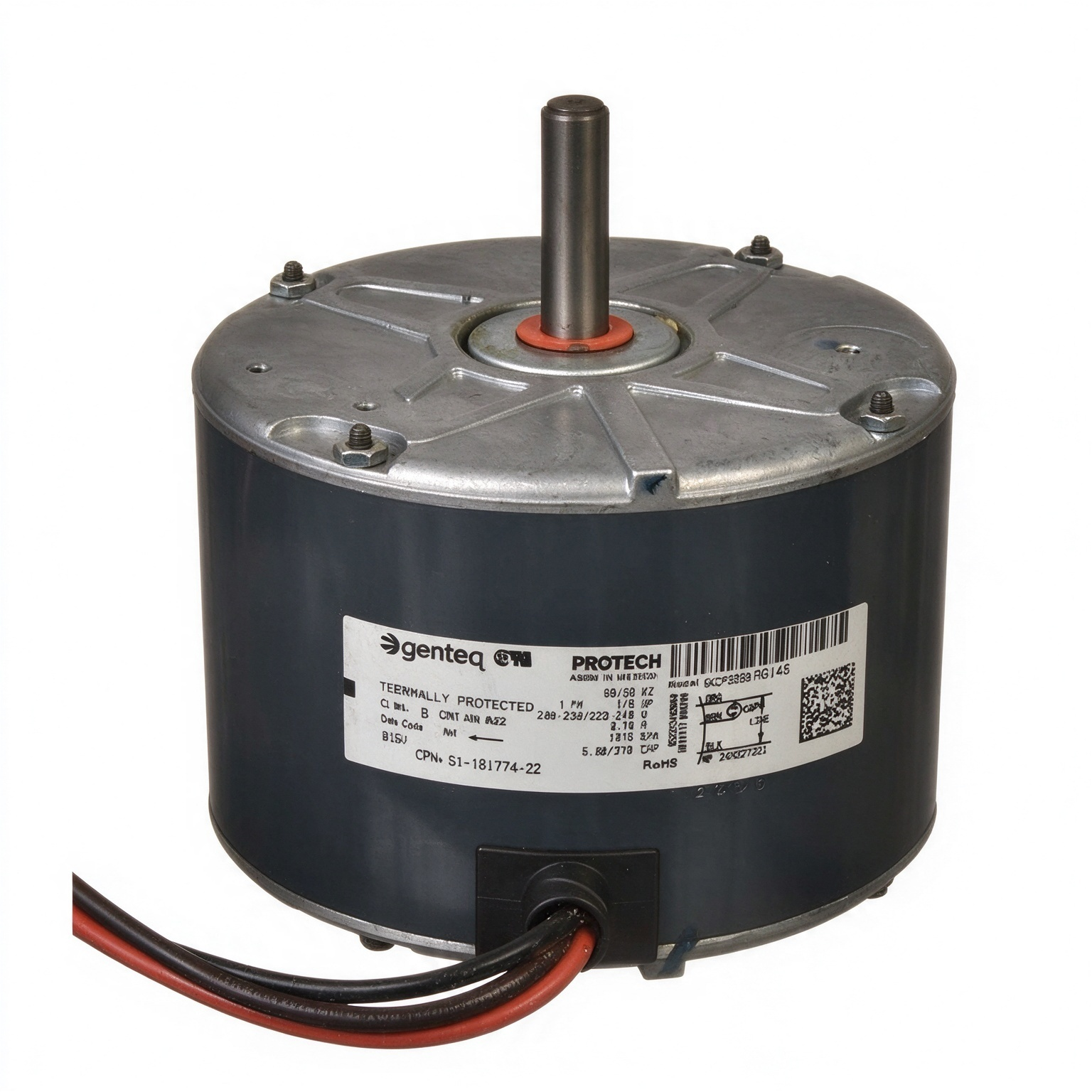

51-101774-22 condenser fan motor is an aftermarket replacement HVAC motor compatible with Protech, widely used for outdoor air conditioning condensing units. It features single-phase 230V input, rated power of 1/8HP and rotation speed of 1075RPM with direct drive type.
This motor uses high quality copper winding and comes with shell band and end boss mounting structure. It is thermally protected against overheating damage, able to work steadily under high-temperature outdoor environments. Compact lightweight design (1.6 lbs) enables simple installation and wiring.
Each motor passes strict quality inspection before shipment. It is an economical spare part for residential and commercial air conditioner maintenance.
Attribute | Value | Attribute | Value |
|---|---|---|---|
Phase | Single-Phase | AC Voltage | 230V |
Rated Power | 1/8hp | Rated Speed | 1075RPM |
Motor Mounting Type | None | Model Number | 51-101774-22 |
Brand Name | other | Place of Origin | China |
Attribute | Value | Attribute | Value |
|---|---|---|---|
Selling Units | Multiple of 10 items | Package size per batch | 42×23×26 cm |
Gross weight per batch | 17.5 kg |
