20PS-0.05 Low Pressure Switch - 0.05MPa OFF/0.15MPa ON, Manual Reset Double-Safety Disc for HVAC Refrigeration

20PS-0.05 Low Pressure Switch - 0.05MPa OFF/0.15MPa ON, Manual Reset Double-Safety Disc for HVAC Refrigeration

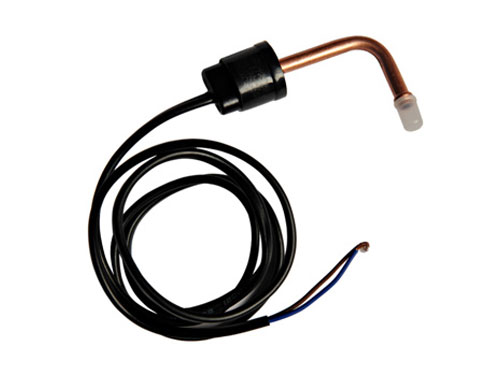

Model: 20PS-0.05; Tube specification: Φ6(6.35)×1mm copper tube; Switch points: OFF=0.05MPa, ON=0.15MPa; Installation: British pipe thread quick connector/copper tube (capillary) welding; Mounting: panel-mounted (with lugs)/inline; Reset type: manual; Sensor: sealed double-safety stainless steel disc; Structure: auto-disconnect + manual reset dual design.

Model:
20PS-0.05 Low Pressure Switch - 0.05MPa
Brand:
SHINE
Code:
20221152


Availability:



Inquiry

Product Description

20PS-0.05 Low Pressure Switch

A specialized low-pressure protection device engineered for high safety and reliability, the 20PS-0.05 low pressure switch is tailored for scenarios requiring precise overpressure control and anti-accidental restart functions. It integrates robust structural design and intelligent safety mechanisms to safeguard critical systems from pressure-related damage.

Core Features

Enhanced safety design: Sealed double-safety stainless steel disc sensor triggers rapid switch disconnection under abnormal pressure, isolating system pressure to prevent accidental restart and equipment damage.
Flexible installation options: Supports British pipe thread quick connectors or copper tube (capillary) welding for pipeline connection. Offers panel-mounted (built-in installation lugs) or inline (no extra fixation) mounting styles to fit diverse setups.
Reliable dual-structure: Independent auto-disconnect and manual reset design—switch stays off after overpressure until manual button activation, maximizing protection reliability for systems with strict safety requirements.

Key Specification Table

Parameter	Details
Model	20PS-0.05
Tube Specification	Φ6(6.35)×1mm Copper Tube
Switch Action Points	OFF: 0.05MPa; ON: 0.15MPa
Connection Type	British Pipe Thread Quick Connector / Copper Tube (Capillary) Welding
Mounting Style	Panel-Mounted (with Lugs) / Inline
Reset Mode	Manual
Sensor Type	Sealed Double-Safety Stainless Steel Disc
Core Structure	Auto-Disconnect + Manual Reset Dual Design

Working Principle

When system pressure exceeds the safe threshold, the internal pressure-sensing disc acts instantly. It pushes the safety disc to a locked position via a push rod, driving the switch to disconnect (OFF at 0.05MPa). As pressure drops to the recovery value (ON at 0.15MPa), the sensing disc resets automatically, but the safety disc remains locked—keeping the switch off. The system resumes normal operation only when the external button is pressed to unlock the safety disc and re-engage the switch.

Application

Key Application Scenarios

Air Conditioning & Refrigeration Systems

Ideal for household, commercial, and industrial air conditioning units, refrigerators, freezers, and other refrigeration equipment. Installs directly on pipelines or equipment panels, providing precise low-pressure protection to prevent compressor burnout, refrigerant leakage, or system failure caused by abnormal pressure fluctuations. Its anti-accidental restart function ensures safe operation in critical cooling systems.

Industrial Equipment & Tool Pressure Systems

Suitable for various industrial machinery, hydraulic/pneumatic tools, and pressure vessels that demand reliable low-pressure protection. Compatible with diverse working environments, it serves as a critical safety component in manufacturing lines, construction machinery, and precision equipment. The flexible installation and high safety performance make it adaptable to scenarios where accidental restart after pressure recovery could lead to severe damage or safety risks.
