111147.00 Condenser Fan Motor | 1HP 1140RPM 56Y DP 208-230/460V 3 Phase

111147 Leeson HVAC condenser fan motor is a 3-phase DP motor rated 1HP,1140RPM,208-230/460V with 56Y frame. It is engineered for vertical shaft-up air-over condenser fan applications. The shaft-end enclosed endshield and dual internal & external shaft flingers protect against contaminants, featuring belly band mount with 3 screws spaced at 120°.

Model:
111147
Brand:
SHINE
Code:
202211417


Availability:



Inquiry

Product Description

Product Description

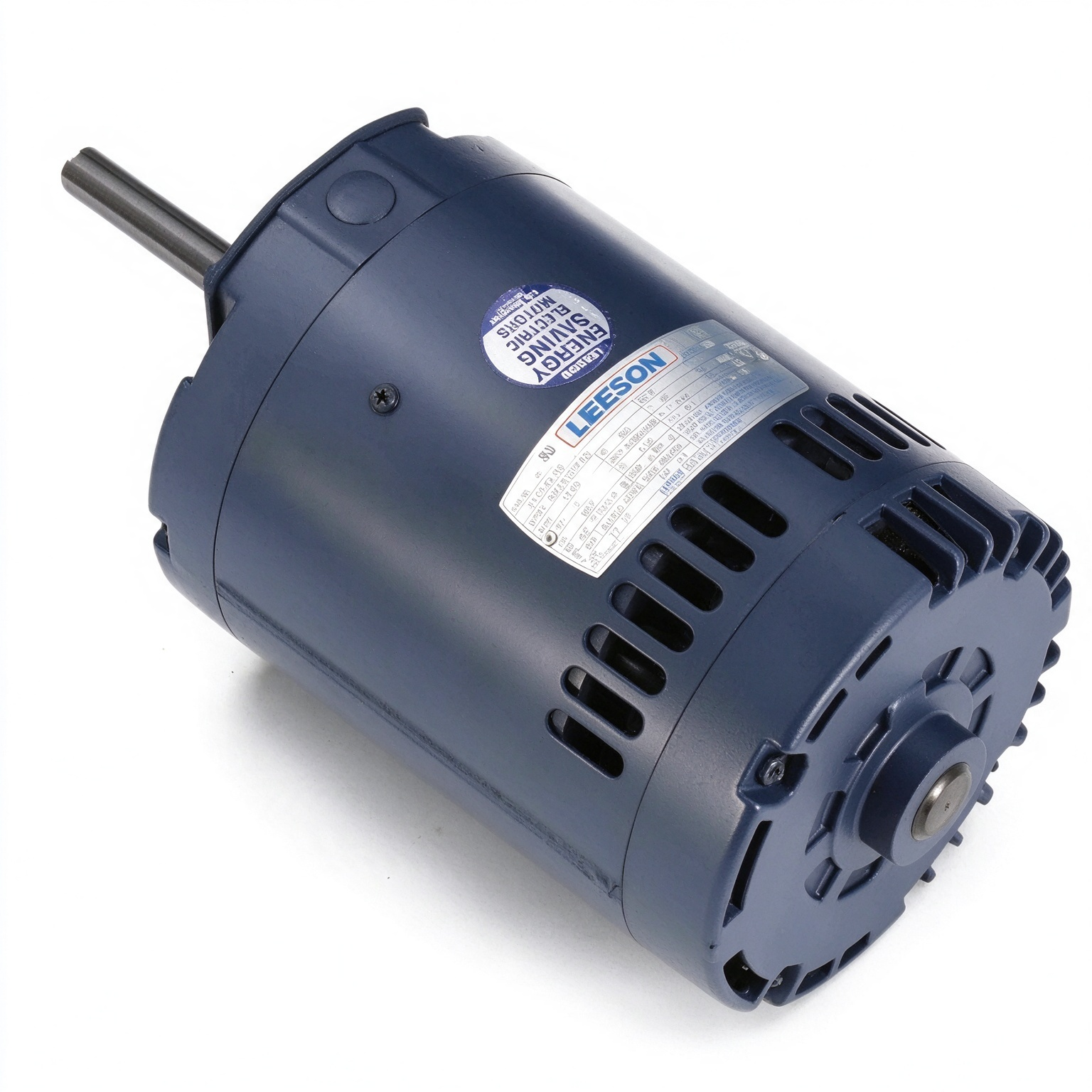

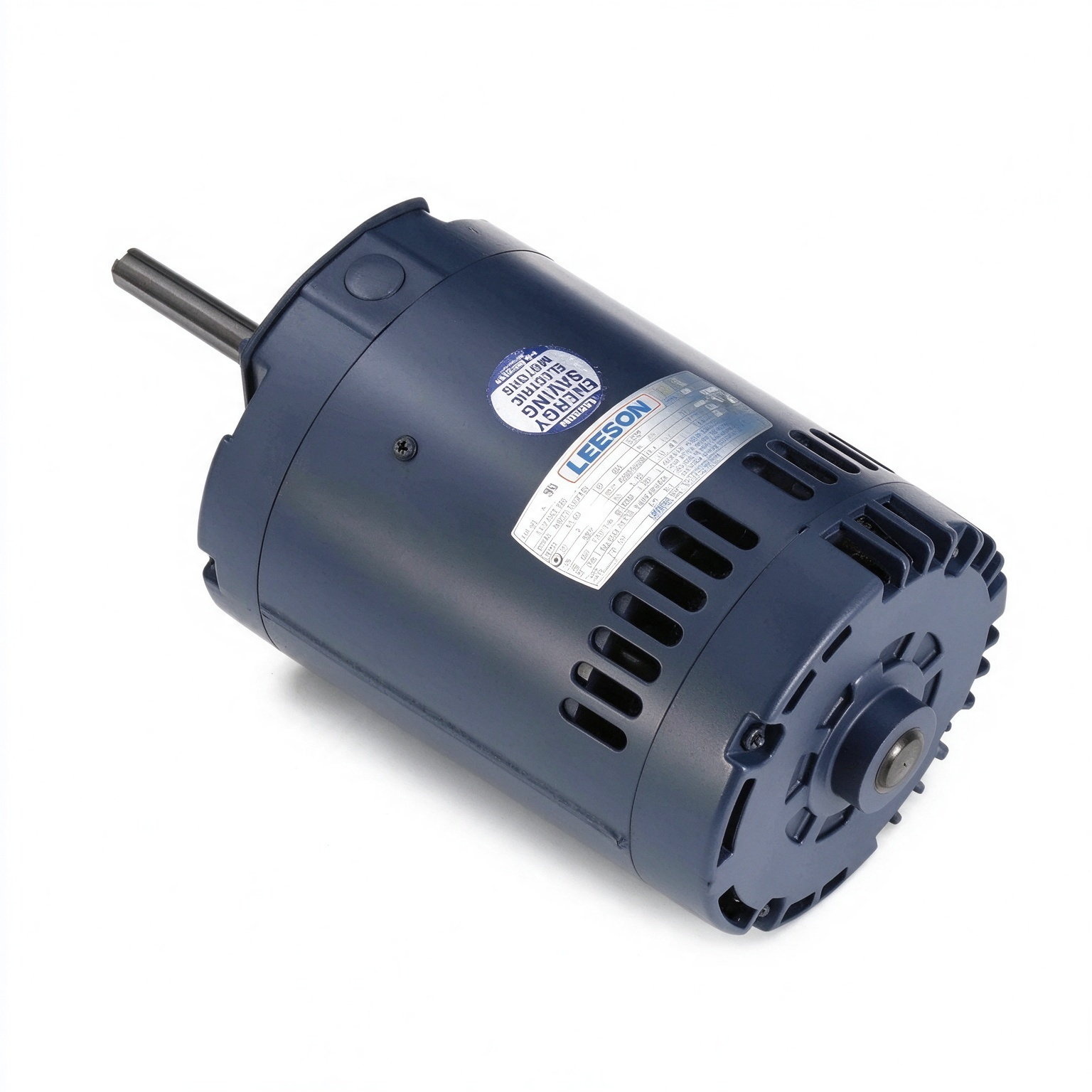

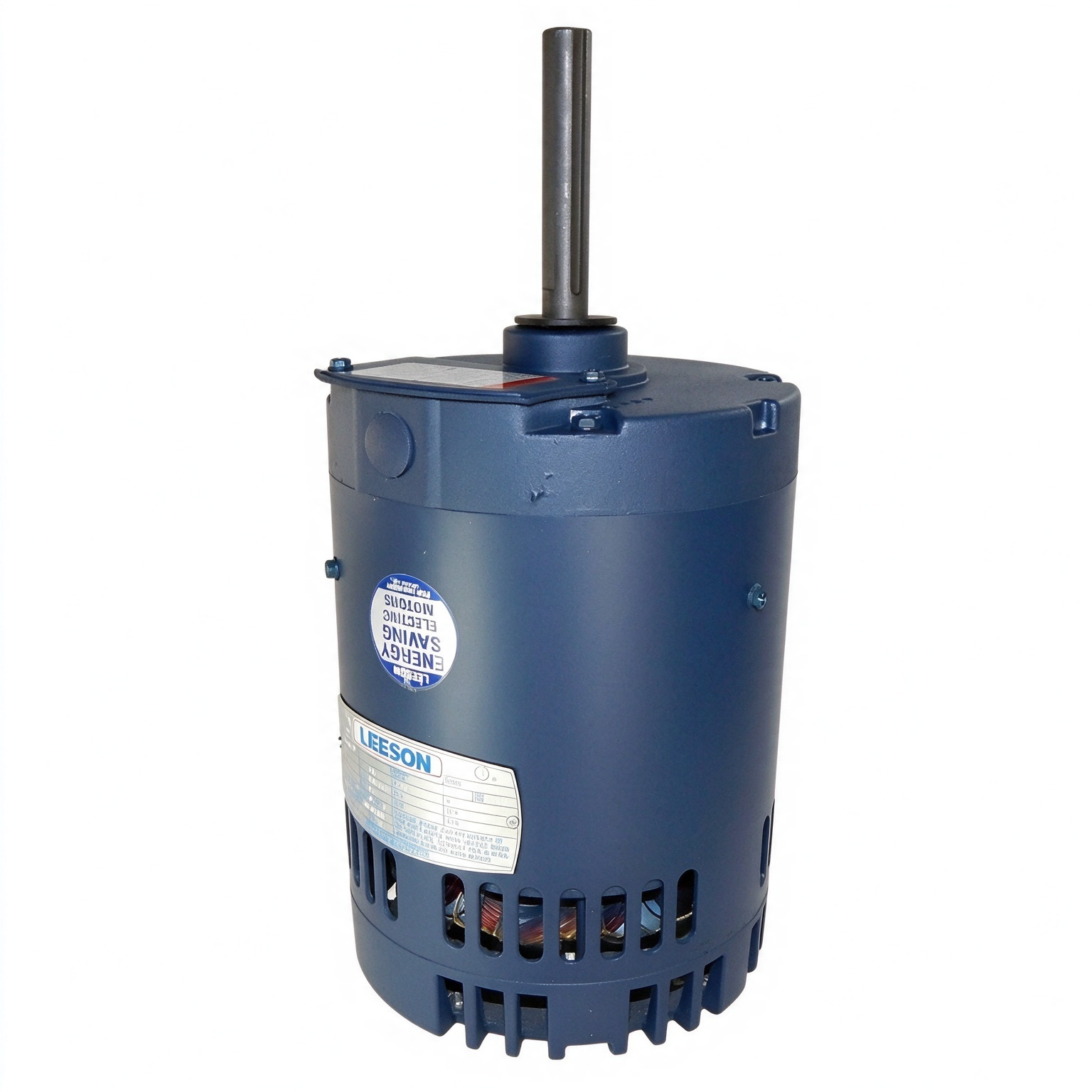

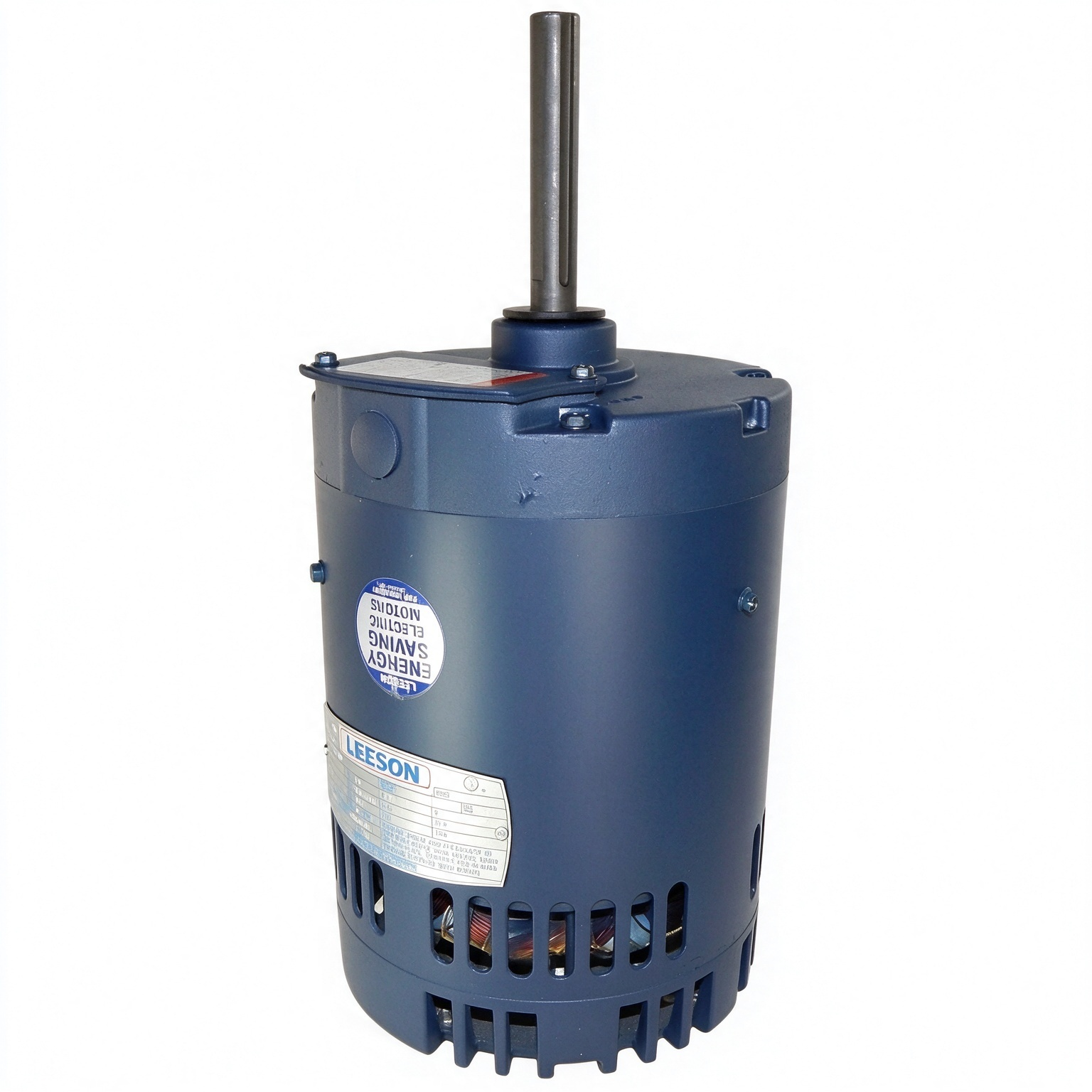

111147 Leeson DP Condenser Fan Motor

111147 is a Leeson three-phase DP condenser fan motor for HVAC cooling equipment. Rated 1HP,1140RPM,208-230/460V, it adopts 56Y frame, specially designed for vertical shaft-up installation on air-over condenser fans.

The shaft-end enclosed endshield effectively stops dirt and debris from entering the motor in vertical mounting scenarios. It uses belly band mounting structure, with three support screws arranged at 120° intervals around the frame. Both internal and external shaft flingers are equipped to repel contaminants and extend service life.

This motor delivers stable performance in commercial condenser fan systems. Each unit passes strict factory testing, serving as a premium aftermarket HVAC replacement motor.

Key attributes

表格

Attribute	Value	Attribute	Value
SKU	111147	Brand	Leeson
Horsepower	1HP	RPM	1140
Phase	3PH	Voltage	208-230/460V
Frame	56Y	Enclosure	DP
Mount Type	Belly band mount	Installation	Vertical shaft-up
Application	Condenser fan, air over	Feature	Internal & external shaft flingers
